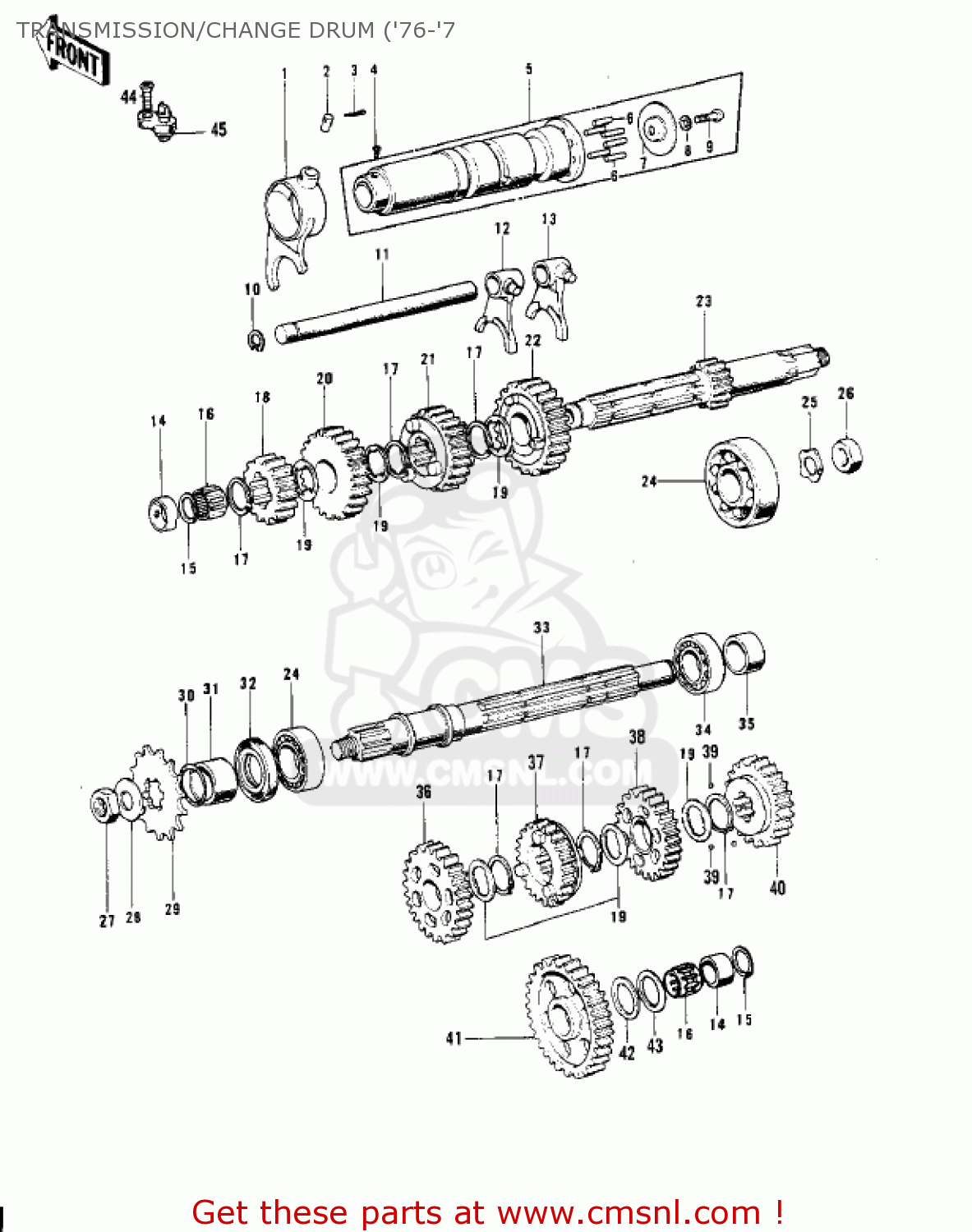

TRANSMISSION/CHANGE DRUM ('76-'7

ref

part #

description

quantity

1

13140037
ref: 1

FORK-SELECTOR,4TH&TOP

€ 105.00

2

92042021
ref: 2

PIN,DOWEL,8X18

€ 7.00

3

550D3020
ref: 3

PIN-COTTER,3.0X20

€ 2.00

4

211B0406A
ref: 4

SCREW-PAN HEAD,4X6

€ 1.50

5

13239003
ref: 5

DRUM ASSY-GEAR CHANGE

€ 129.00

6

92042014
ref: 6

PIN-GEAR CHANGE DRUM

€ 0.50

7

13142008
ref: 7

PLATE-CHANGE DRUM PIN

€ 4.00

8

464H0600
ref: 8

WASHER-LOCK,6MM

€ 0.50

9

220B0614
ref: 9

SCREW-PAN HEAD,6X14

€ 2.00

10

482J0100
ref: 10

CIRCLIP-TYPE-E,10MM

€ 0.50

11

13209006
ref: 11

ROD-SHIFT

€ 8.00

12

13140054
ref: 12

FORK-SELECTOR,2ND&3RD

€ 59.00

13

13140053
ref: 13

FORK-SELECTOR,LOW

€ 71.50

14

92028043
ref: 14

BUSH-TRANSMISSION

€ 18.00

15

92033009
ref: 15

CIRCLIP,17MM

€ 2.00

16

92046005
ref: 16

BEARING,#KT172113

€ 13.00

17

92033025
ref: 17

CIRCLIP,25MM

€ 3.00

18

13130028
ref: 18

2ND GEAR-DRIVE SHAFT

€ 61.50

19

92024034
ref: 19

WASHER,TOOTHED,25.5X2

€ 2.50

20

13136038
ref: 20

TOP GEAR-DRIVE SHAFT

€ 54.50

21

13132027
ref: 21

3RD GEAR-DRIVE SHAFT

€ 88.00

22

13134013
ref: 22

4TH GEAR-DRIVE SHAFT

€ 73.50

23

13127034
ref: 23

SHAFT-DRIVE

€ 192.00

24

92045010
ref: 24

BEARING-BALL,#6205NX3

€ 23.00

25

92024046
ref: 25

WASHER,LOCK,14MM

€ 2.00

26

315B1400
ref: 26

NUT,14MM

€ 1.00

27

92015019
ref: 27

NUT,18MM

€ 4.00

28

92024067
ref: 28

WASHER,LOCK

€ 2.00

29

13144030
ref: 29
STD

SPROCKET-OUTPUT,15T

€ 29.50

29

13144035
ref: 29

ENGINE SPROCKET,14T

€ 29.50

29

13144036
ref: 29

ENGINE SPROCKET,16T

€ 15.50

30

92055035
ref: 30

O RING

€ 3.00

31

920261024
ref: 31

SPACER-ENG SPROCKET

€ 13.00

32

92050024
ref: 32

OIL SEAL SC325210

€ 5.00

33

131285004
ref: 33

SHAFT,OUTPUT

€ 98.50

34

601B6005
ref: 34

BEARING-BALL,#6005C3

€ 11.50

35

92027135
ref: 35

COLLAR

€ 3.50

36

13131034
ref: 36

2ND GEAR-OUTPUT SHAFT

€ 57.00

37

13137022
ref: 37

TOP GEAR-OUTPUT SHAFT

€ 98.50

38

13133027
ref: 38

3RD GEAR-OUTPUT SHAFT

€ 71.00

39

600A0500
ref: 39

BALL-STEEL,5/32

€ 0.50

40

13135017
ref: 40

4TH GEAR-OUTPUT SHAFT

€ 61.00

41

13129038
ref: 41

LOW GEAR-OUTPUT SHAFT

€ 107.00

42

92026021
ref: 42

WASHER-THRUST

€ 9.00

43

92022075
ref: 43

WASHER,17MM

€ 4.50

44

221B0616
ref: 44

SCREW-CNTSNK HD,6X16

€ 0.50

45

13151021
ref: 45

SWITCH,NEUTRAL

€ 16.50
