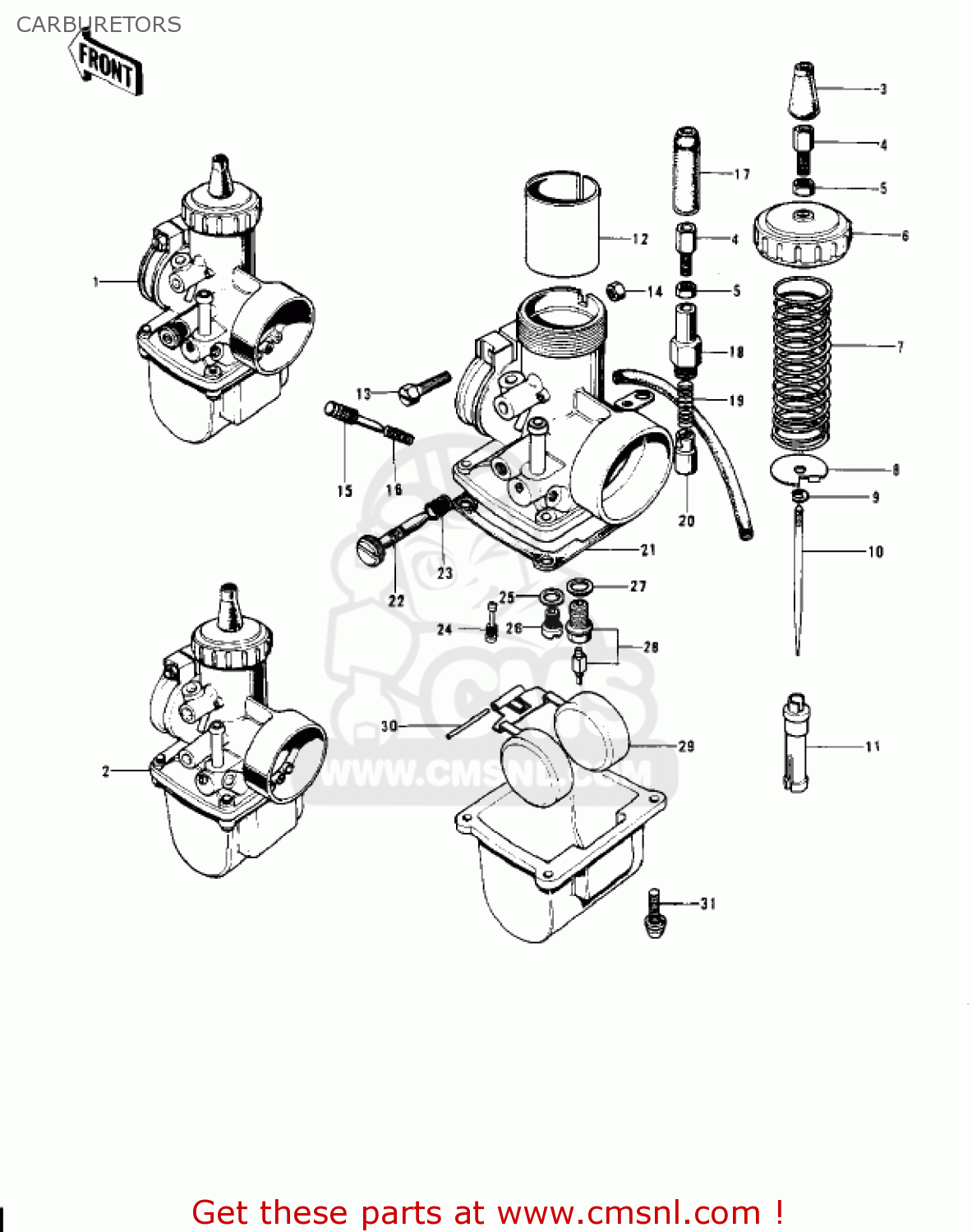

CARBURETORS

ref

part #

description

quantity

1

16001253
ref: 1
VM26SC

CARBURETOR ASSY,L.H

€ 262.50

2

16001254
ref: 2
VM26SC

CARB ASSY,CENT & R.H

€ 457.50

3

16036007
ref: 3

BOOT,CABLE ADJUSTER

€ 10.50

4

16002004
ref: 4

CABLE ADJUSTER

€ 8.00

5

16003004
ref: 5

NUT-CABLE ADJUST LOCK

€ 4.50

6

16004025
ref: 6

CAP,MIXING CHAMBER

€ 23.50

7

16006024
ref: 7

SPRING,THROTTLE VALV

€ 7.50

8

16007023
ref: 8

SPRING SEAT,THRTL VL

€ 7.00

9

16008010
ref: 9

CLAMP,E-TYPE

€ 5.00

10

16009047
ref: 10

JET NEEDLE 4EJ4

€ 17.50

11

16017092
ref: 11

NEEDLE JET,0-6

€ 19.00

12

16025081
ref: 12
CA2.5

VALVE,THROT,L.HCA 2.5

€ 66.50

12

16025082
ref: 12
CA2.5

VALVE,THROT,CNT & R.H

€ 65.00

13

16010004
ref: 13

SCREW-CLAMP

€ 3.50

14

311B0600
ref: 14

NUT,6MM

€ 0.50

15

16014006
ref: 15

SCREW-PILOT AIR

€ 9.00

16

16022007
ref: 16

SPRING-THR STOP SCREW

€ 5.50

17

16036005
ref: 17

CAP-CABLE ADJUST RUBB

€ 7.50

18

16012008
ref: 18

CAP-STARTER PLUNGER

€ 4.00

19

16013003
ref: 19

SPRING-STARTER PLUNG

€ 4.00

20

16016002
ref: 20

PLUNGER,STARTER

€ 20.00

21

16019013
ref: 21

GASKET-FLOAT CHAMBER (NAS)

€ 16.50

22

16021013
ref: 22

SCREW-THROTTLE STOP

€ 12.00

23

16022005
ref: 23

SPRING-THR STOP SCREW

€ 5.50

24

92064021
ref: 24

PILOT JET #20 ISO

€ 12.00

25

16034001
ref: 25

WASHER-MAIN JET

€ 2.50

26

920631032
ref: 26
STD

JET-MAIN,#A77.5R

€ 10.00

26

92063108
ref: 26

JET-MAIN,#72.5R

€ 9.00

26

92063109
ref: 26

JET-MAIN,#75R

€ 10.50

26

920631030
ref: 26

JET-MAIN,#A80R

€ 11.00

26

92063124
ref: 26

MAIN JET,#82.5R

€ 10.50

27

16029004
ref: 27

WASHER-FLOAT VLV SEAT

€ 2.50

28

16030005
ref: 28

VALVE-FLOAT,2.5

€ 43.00

29

16031016
ref: 29

FLOAT

€ 88.00

30

16032003
ref: 30

FLOAT PIN

€ 4.00

31

16033009
ref: 31

SCREW-FLOAT CHAMBER

€ 0.50

all assemblies
