HANDLEBAR
KH400A4 1977 USA CALIFORNIA

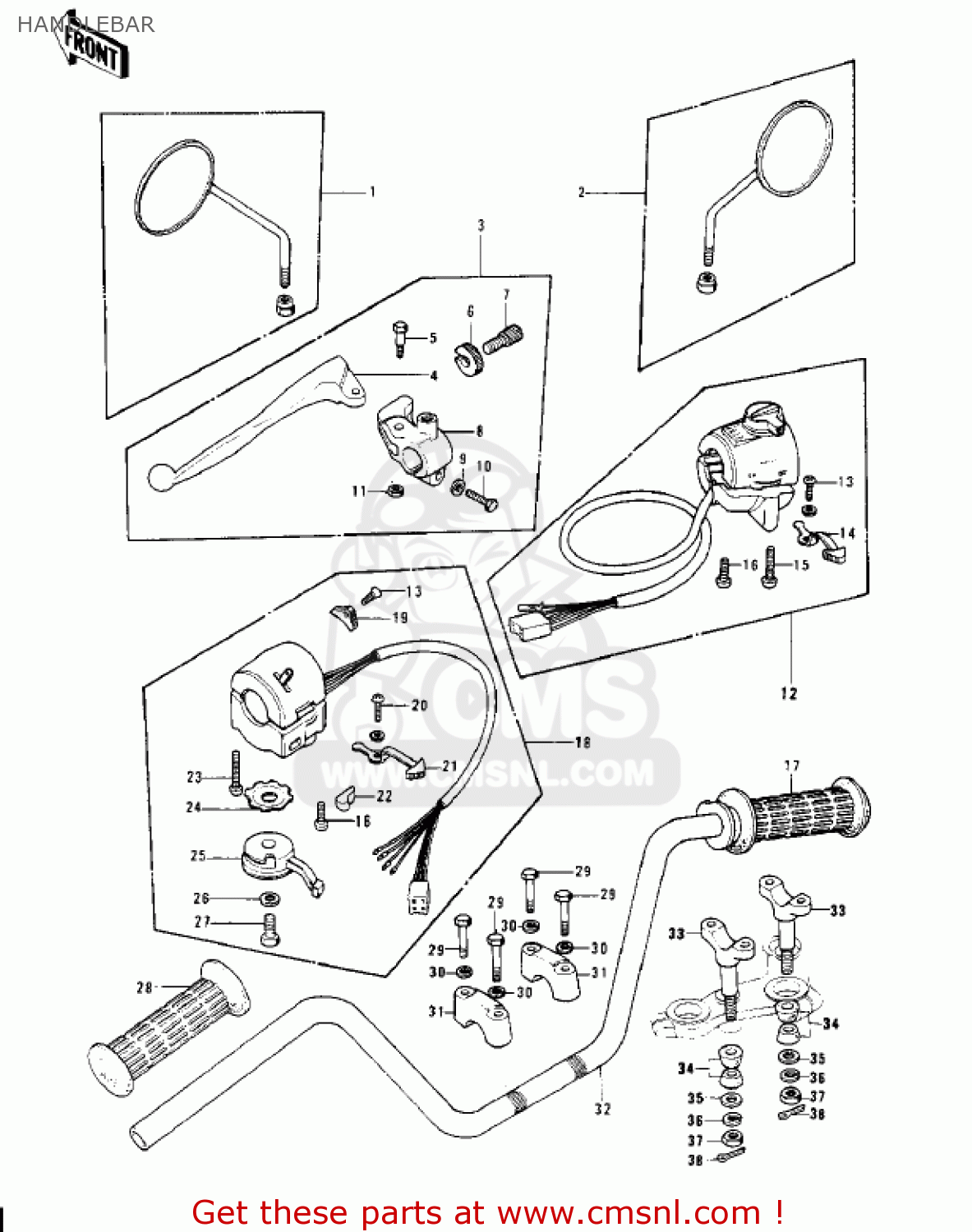

Handlebar diagram KH400A4 1977 USA CALIFORNIA
HANDLEBAR KH400A4 1977 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
56003019
ref: 1
KH400-A3
MIRROR-ASSY,LH
€ 51.00
1
56003019
ref: 1
KH400-A4/A5
MIRROR-ASSY,LH
€ 51.00
2
56002029
ref: 2
KH400-A3
MIRROR-ASSY,RH
€ 49.00
2
56002029
ref: 2
KH400-A4/A5
MIRROR-ASSY,RH
€ 49.00
3
46076049
ref: 3
LEVER ASSY,CLUTCH
€ 101.00
4
46092023
ref: 4
LEVER-GRIP,CLUTCH
€ 17.00
5
92007047
ref: 5
BOLT,HEX HEAD
€ 6.50
6
46056005
ref: 6
NUT-LOCK
€ 6.00
7
46055003
ref: 7
SCREW-CABLE ADJUST
€ 11.50
8
46094017
ref: 8
HOLDER,CLUTCH LEVER
€ 23.00
9
411B0600
ref: 9
WASHER-PLAIN,6MM
€ 0.50
10
112B0622
ref: 10
BOLT, 6X22
€ 2.50
11
92019008
ref: 11
KH400-A3
NUT-LOCK,6MM
€ 3.00
11
92017014
ref: 11
KH400-A4/A5
NUT,LOCK,6MM
€ 4.00
12
46132027
ref: 12
U.S.
CASE ASSEMBLY,RH
€ 256.00
12
46132028
ref: 12
CANADA
CASE ASSEMBLY,RH
€ 179.50
13
220B0305A
ref: 13
SCREW-PAN HEAD,3X5
€ 1.00
14
46043006
ref: 14
USE FOR 46132-027
KNOB-ASSY,LIGHTING SW
€ 8.00
15
220B0535
ref: 15
SCREW-PAN-CROS
€ 2.00
16
220B0522
ref: 16
SCREW-PAN-CROS
€ 0.50
17
46019041
ref: 17
GRIP-ASSY,THROTTLE
€ 28.00
18
46091047
ref: 18
CASE ASSEMBLY,LH
€ 280.50
19
46044013
ref: 19
KNOB,LIGHTING SWITCH,
€ 8.00
20
221B0308A
ref: 20
SCREW-CNTSNK HD,3X8
€ 2.50
21
46043005
ref: 21
KNOB-LIGHTING SW L.H
€ 6.50
22
270101001
ref: 22
BUTTON, HORN PUSH
€ 6.50
23
220B0530
ref: 23
SCREW-PAN-CROS
€ 2.00
24
92095012
ref: 24
WASHER-LOCK
€ 3.50
25
46096009
ref: 25
LEVER,STARTER
€ 15.50
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
112B0608
ref: 27
BOLT-HEX,HEAD,6X8
€ 0.50
28
46075028
ref: 28
GRIP,LH
€ 32.00
29
920011405
ref: 29
BOLT,8X38
€ 10.00
30
461F0800
ref: 30
WASHER-SPRING,8MM
€ 0.50
31
46012008
ref: 31
HOLDER-HANDLE,UPP
€ 23.00
32
46003030
ref: 32
HANDLE
€ 136.00
33
46012010
ref: 33
HOLDER-HANDLE,LWR
€ 20.00
34
92075039
ref: 34
DAMPER RUBBER-HANDLE
€ 3.00
35
46016003
ref: 35
PLATE,HANDLE HOLDER
€ 3.50
36
461F1000
ref: 36
WASHER-SPRING,10MM
€ 0.50
37
314B1000
ref: 37
NUT,10MM
€ 0.50
38
554A0800
ref: 38
PIN-SNAP,8MM
€ 1.00
