FRONT BRAKE ('74-'75 S3/S3-A)
KH400A4 1977 USA CALIFORNIA

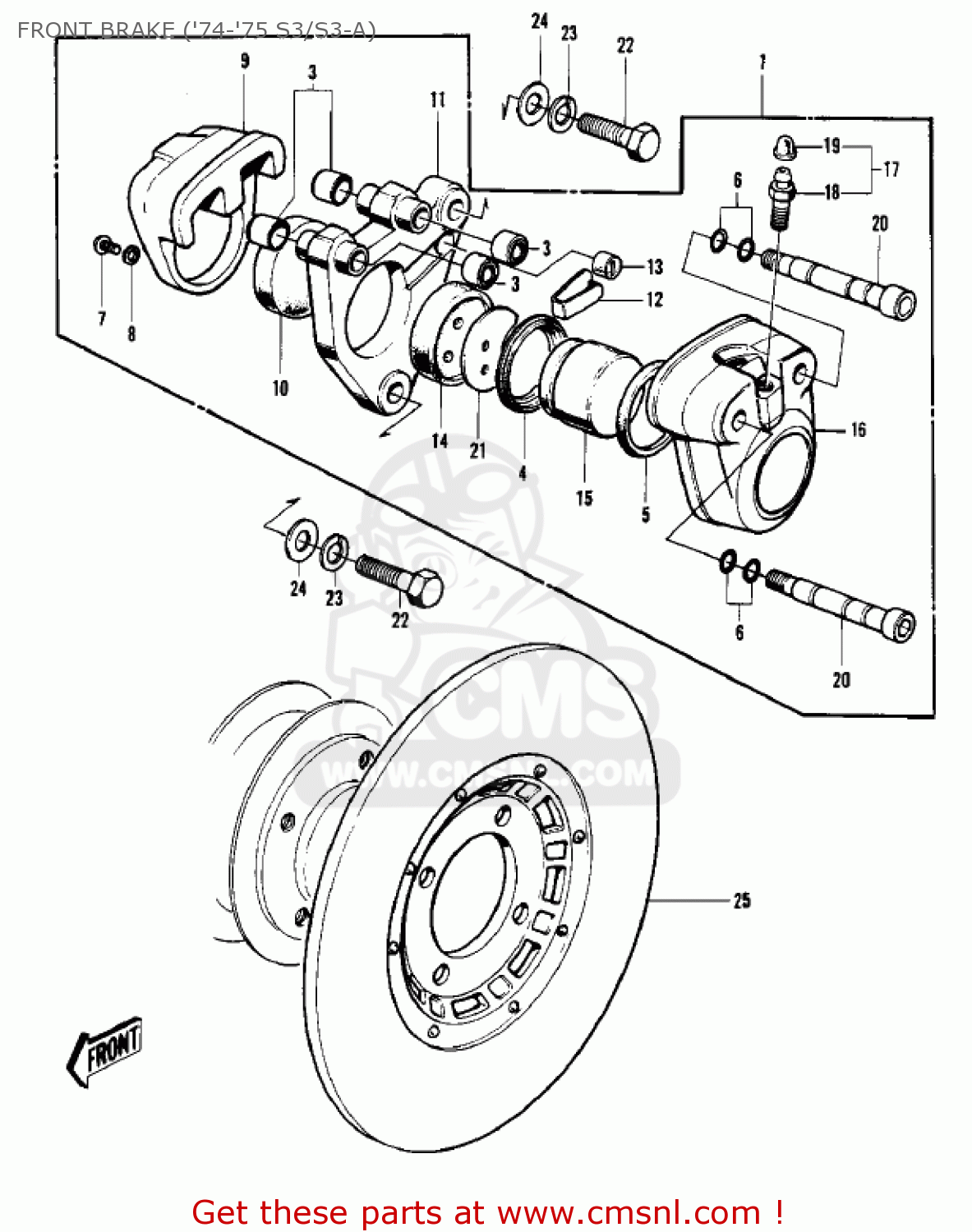

Front brake ('74-'75 s3/s3-a) diagram KH400A4 1977 USA CALIFORNIA
FRONT BRAKE ('74-'75 S3/S3-A) KH400A4 1977 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
43041003
ref: 1
S3
CALIPER ASSY
€ 308.50
1
43041007
ref: 1
S3-A
CALIPER ASSY
€ 281.00
2
43073003
ref: 2
INCL. REF. 3-6
REPAIR SET,CALLIPER
€ 20.00
3
43052002
ref: 3
BOOT,SHAFT
€ 6.50
4
43054002
ref: 4
BOOT,PISTON
€ 19.00
5
43049001
ref: 5
RING-PISTON SEAL
€ 7.50
6
43053001
ref: 6
RING-O,SHAFT
€ 7.00
7
220B0612
ref: 7
SCREW-PAN HEAD,6X12
€ 1.00
8
461F0600
ref: 8
WASHER-SPRING,6MM
€ 0.50
9
43043002
ref: 9
CALIPER B
€ 85.50
10
43051001
ref: 10
PAD-BRAKE
€ 45.50
11
43044003
ref: 11
HOLDER-CALIPER
€ 73.00
12
43046001
ref: 12
STOPPER-PAD A
€ 2.00
13
43047001
ref: 13
PLUG,8X6.5
€ 4.50
14
43082001
ref: 14
PAD A
€ 29.50
15
43048001
ref: 15
PISTON-CALIPER
€ 23.50
16
43042003
ref: 16
CALIPER A
€ 174.50
17
43085001
ref: 17
BREEDER SET
€ 16.50
18
43056003
ref: 18
BREATHER-BRAKE
€ 16.50
19
43057003
ref: 19
CAP-BREATHER
€ 3.00
20
43045002
ref: 20
SHAFT
€ 25.00
21
43076001
ref: 21
SHIM-PAD A
€ 6.50
22
92007032
ref: 22
BOLT,10X41.5
€ 8.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
410B1000
ref: 24
WASHER-PLAIN-SMALL,10
€ 0.50
25
41080006
ref: 25
DISC PLATE,FRONT BRAK
€ 375.00
