FRONT BRAKE
KH400A3 1976 USA CALIFORNIA

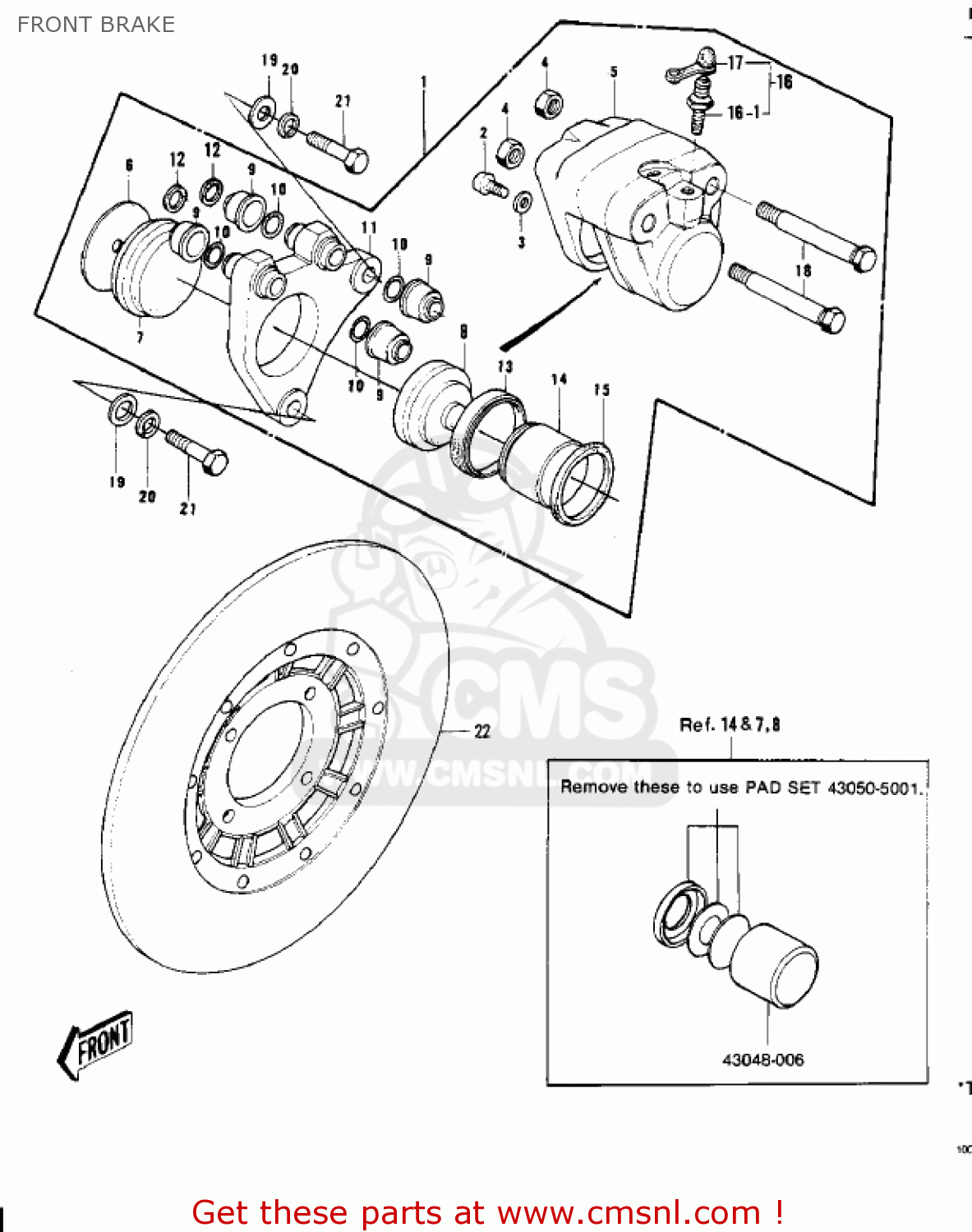

Front brake diagram KH400A3 1976 USA CALIFORNIA
FRONT BRAKE KH400A3 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
43041030
ref: 1
KH400-A3
CALIPER ASSY,L.H FROT
€ 255.00
1
43041030
ref: 1
KH400-A4/A5
CALIPER ASSY,L.H FROT
€ 255.00
2
220B0612
ref: 2
SCREW-PAN HEAD,6X12
€ 1.00
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
315B1000
ref: 4
NUT,10MM
€ 0.50
5
43042008
ref: 5
BODY,CALIPER
€ 166.00
6
43040004
ref: 6
SPACER
€ 8.00
7
43051008
ref: 7
FOR 43041-020
PAD B
€ 97.50
7
43051011
ref: 7
FOR 43041-030
PAD B (MCA)
€ 97.50
8
43050007
ref: 8
FOR 43041-020
PAD A
€ 97.50
8
43050011
ref: 8
FOR 43041-030
PAD A
€ 97.50
?
430505001
ref: ?
Includes items 7 and
PAD-ASSY-BRAKE (MCA)
€ 97.50
9
43052005
ref: 9
BOOT,SHAFT
€ 7.50
10
43053006
ref: 10
RING-O
€ 7.00
11
43044008
ref: 11
HOLDER,CALIPER
€ 89.00
12
43088002
ref: 12
PLUG
€ 6.50
13
43054003
ref: 13
BOOT,PISTON
€ 10.00
14
43048006
ref: 14
FOR 43041-020
PISTON,CALIPER
€ 47.00
14
43048009
ref: 14
FOR 43041-030
PISTON-CALIPER,FR
€ 80.50
15
43049002A
ref: 15
PISTON SEAL RING
€ 9.00
16
43085001
ref: 16
BREEDER SET
€ 16.50
16-1
43056003
ref: 16-1
BREATHER-BRAKE
€ 16.50
17
43057003
ref: 17
CAP-BREATHER
€ 3.00
18
43045006
ref: 18
BOLT
€ 18.00
19
410B1000
ref: 19
WASHER-PLAIN-SMALL,10
€ 0.50
20
461F1000
ref: 20
WASHER-SPRING,10MM
€ 0.50
21
92007032
ref: 21
BOLT,10X41.5
€ 8.50
22
41080006
ref: 22
DISC PLATE,FRONT BRAK
€ 375.00
