CHASSIS ELECTRICAL EQUIPMENT

KH400A3 1976 USA CALIFORNIA

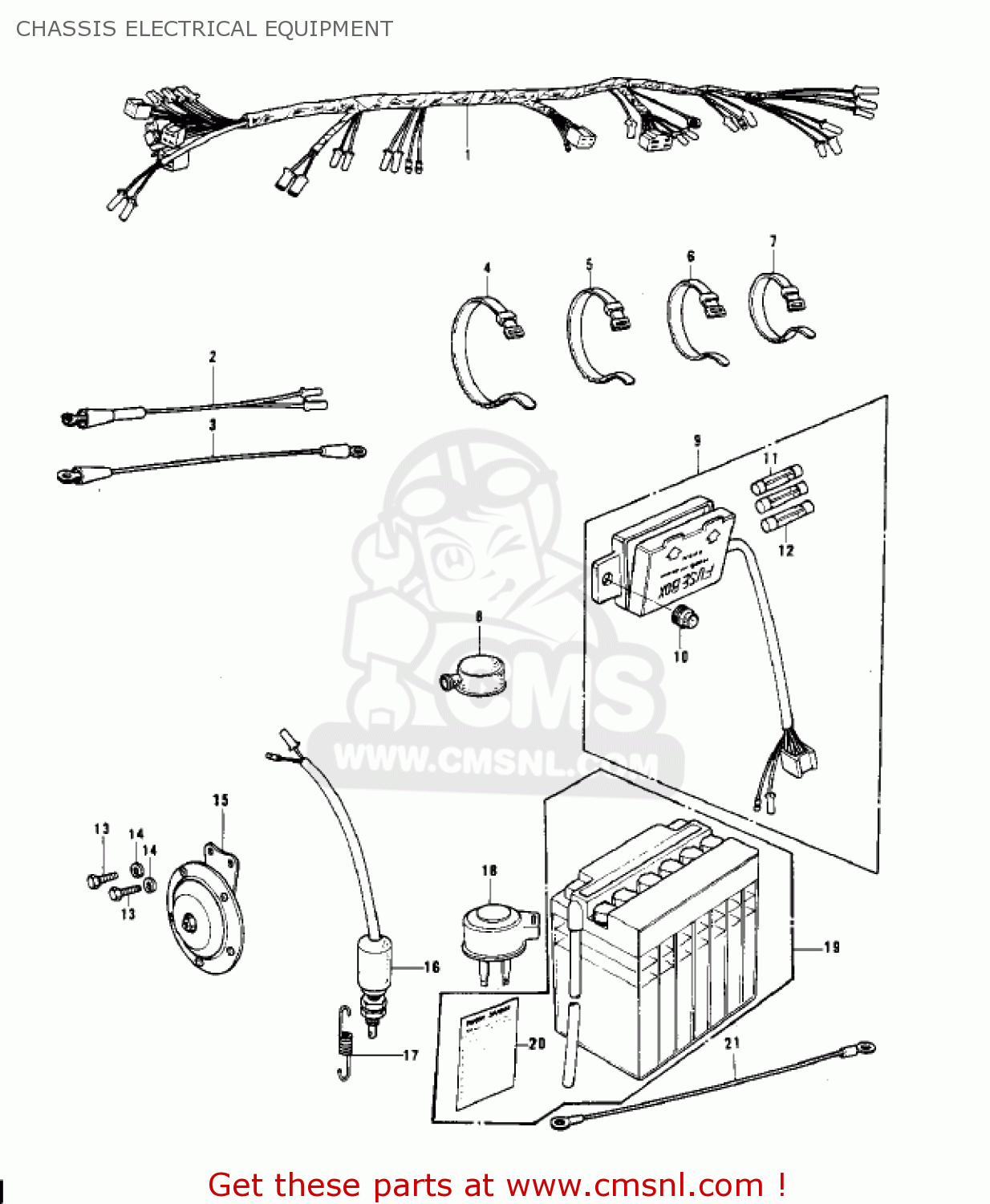

Chassis electrical equipment diagram KH400A3 1976 USA CALIFORNIA

CHASSIS ELECTRICAL EQUIPMENT KH400A3 1976 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT KH400A3 1976 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT KH400A3 1976 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
1
26001132
ref: 1
WIRING HARNESS,MAIN
€ 101.50
2
26010033
ref: 2
WIRE,LEAD
26010033
€ 10.00
3
26010017
ref: 3
WIRE-BATTERY GROUND
€ 2.50
4
92072032
ref: 4
BAND,LONG
92072032
€ 3.00
5
92072056
ref: 5
BAND,RUBBER
92072056
€ 3.00
6
92072031
ref: 6
BAND,MIDDLE
92072031
€ 3.00
7
92072030
ref: 7
BAND,SHORT
92072030
€ 3.00
8
92073001
ref: 8
CAP-BAT TERMINAL RUBB
€ 8.50
9
26004035
ref: 9
FUSE-ASSY
26004035
€ 53.50
10
92075279
ref: 10
DAMPER,FUSE
92075279
€ 3.50
11
26006005
ref: 11
FUSE 20A
26006005
€ 3.50
12
26006003
ref: 12
FUSE 10A
26006003
€ 3.00
13
115G0816
ref: 13
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
13
115G0816
ref: 13
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
461F0800
€ 0.50
15
27003066
ref: 15
HORN
€ 110.50
16
27010015
ref: 16
SWITCH,BRAKE LAMP
27010015
€ 23.00
17
27011013
ref: 17
SPRING-BRAKE LAMP SW
27011013
€ 9.50
18
27002011
ref: 18
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
19
26012022
ref: 19
12N5.5-4A
BATTERY 12V 6AH
€ 58.00
20
560401036
ref: 20
WARNING, BATTERY
€ 2.00
21
26011084
ref: 21
WIRE,GROUND LEAD
€ 10.50
