CLUTCH ('74-'75 S3/S3-A)
KH400A3 1976 USA CALIFORNIA

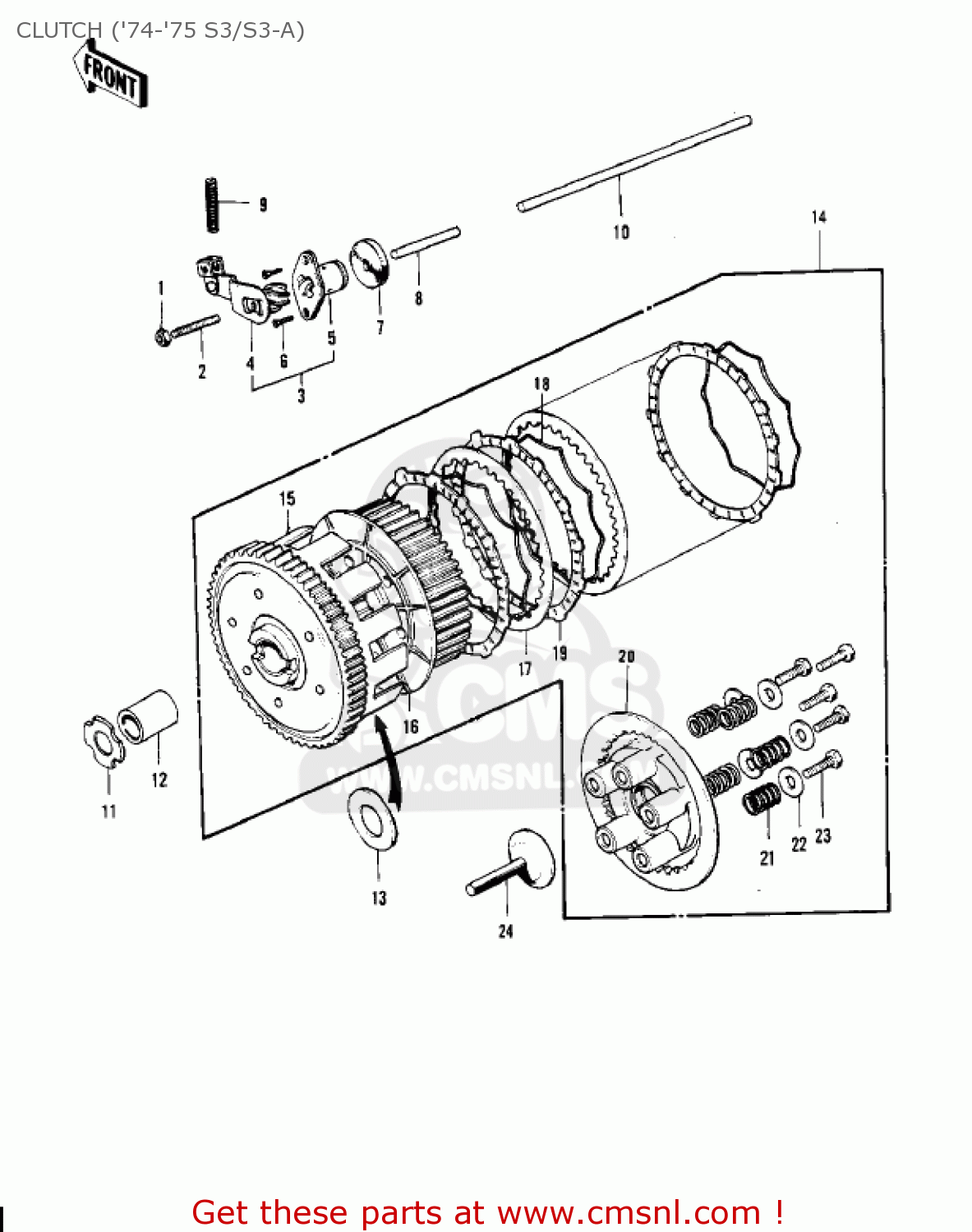

Clutch ('74-'75 s3/s3-a) diagram KH400A3 1976 USA CALIFORNIA
CLUTCH ('74-'75 S3/S3-A) KH400A3 1976 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
291Z0625
ref: 2
SCREW-SLOTTED,6X25
€ 3.50
3
13231010
ref: 3
RELEASE ASSY,CLUTCH
€ 35.00
4
13102017
ref: 4
INNER,CLUTCH RELEASE
€ 29.00
5
13118008
ref: 5
OUTER,CLUTCH RELEASE
€ 16.00
6
221B0616
ref: 6
SCREW-CNTSNK HD,6X16
€ 0.50
7
92050040
ref: 7
OIL SEAL,TC7297
€ 15.00
8
13116010
ref: 8
ROD-CLUTCH PUSH SHORT
€ 10.50
9
92081096
ref: 9
SPRING-CLUTCH RELEASE
€ 3.50
10
13116019
ref: 10
ROD-CLUTCH PUSH,LONG
€ 7.50
11
92022119
ref: 11
WASHER-THRUST
€ 4.50
12
92028045
ref: 12
BUSH-CLUTCH
€ 5.50
13
92022189
ref: 13
WASHER-PLAIN,20MM
€ 4.00
14
130811070
ref: 14
WHN EXH USE 13081-10
CLUTCH-ASSY
€ 359.50
14
130811070
ref: 14
WHN EXH USE 13081-10
CLUTCH-ASSY
€ 359.50
14
130811070
ref: 14
CLUTCH-ASSY
€ 359.50
15
130951040
ref: 15
WHN EXH USE 13095-10
HOUSING COMP CLUTCH
€ 203.50
15
130951040
ref: 15
HOUSING COMP CLUTCH
€ 203.50
16
13087036
ref: 16
HUB,CLUTCH
€ 57.00
17
13089003
ref: 17
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
18
13229002
ref: 18
SPRING,CLUTCH STEEL
€ 7.50
19
130881015
ref: 19
PLATE-FRICTION (NAS)
€ 11.50
20
13187004
ref: 20
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
21
92081095
ref: 21
SPRING-CLUTCH
€ 8.50
22
92022167
ref: 22
WASHER-PLAIN,5MM
€ 1.50
23
92003078
ref: 23
BOLT,5X18
€ 2.00
24
13116016
ref: 24
ROD-PUSH,CLUTCH SPRIN
€ 11.50
