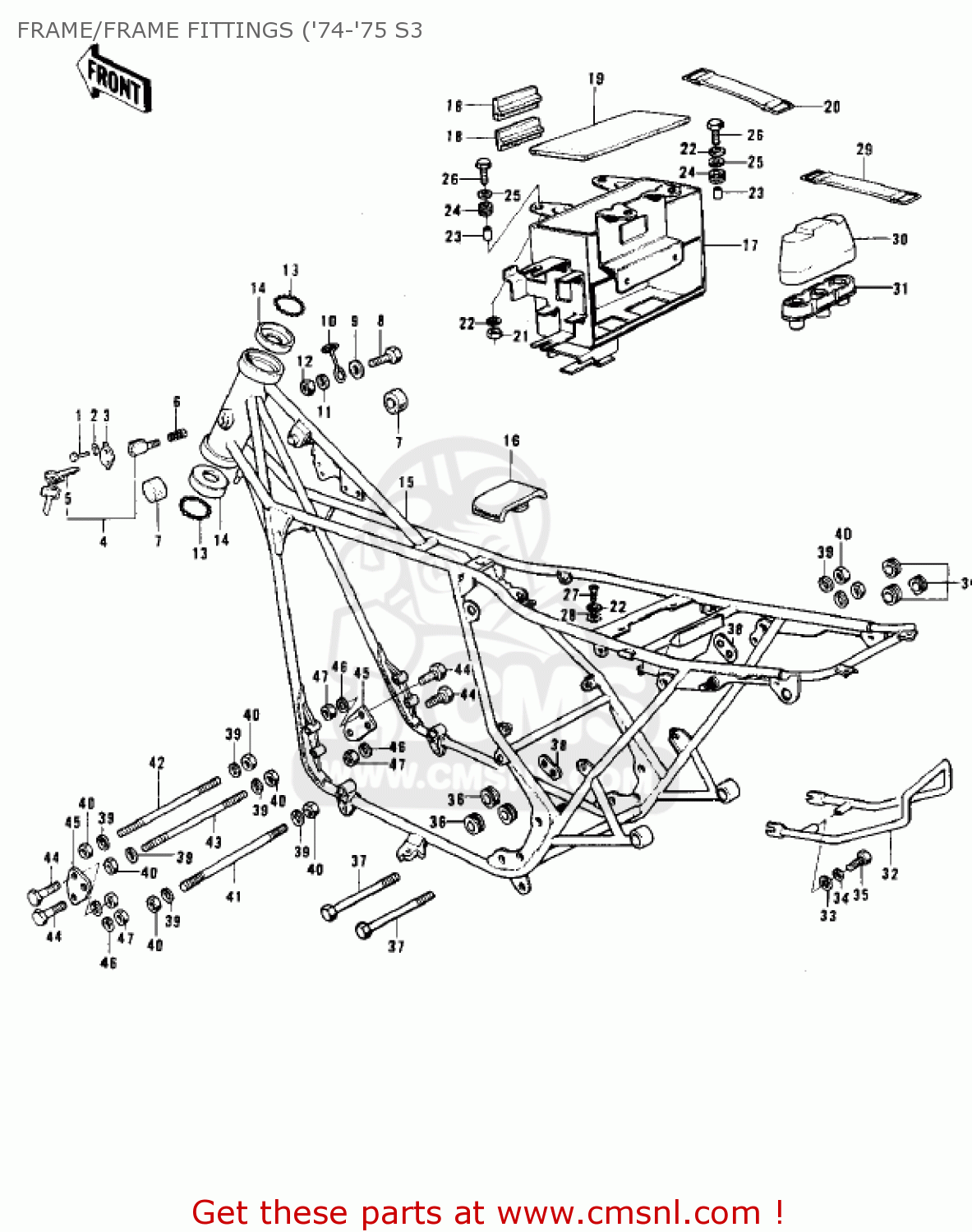

FRAME/FRAME FITTINGS ('74-'75 S3

ref

part #

description

quantity

1

92008007
ref: 1

SCREW-TAPPING

€ 2.50

2

92097003
ref: 2

WASHER

€ 2.50

3

110121134
ref: 3

CAP,STEERING LOCK

€ 4.50

4

27016038
ref: 4

LOCK ASSY,STEERING

€ 36.00

5

2700805501
ref: 5

KEY SET, #901

€ 17.00

5

2700805510
ref: 5

KEY SET,#910

€ 18.50

6

27032001
ref: 6

SPRING-STEERING LOCK

€ 3.50

7

92075101
ref: 7

DAMPER RUBBER-FL TANK

€ 4.00

8

110N0816
ref: 8

BOLT-HEX HEAD,8X16

€ 0.50

9

410D0800
ref: 9

WASHER-PLAIN,8MM

€ 2.00

10

92037139
ref: 10

CLAMP,CABLE

€ 2.00

11

461F0800
ref: 11

WASHER-SPRING,8MM

€ 0.50

12

311B0800
ref: 12

NUT,8MM

€ 0.50

13

600A0800
ref: 13

BALL-STEEL,1/4

€ 0.50

14

92048006
ref: 14

RACE-STRNG BEARIN-STE

€ 11.50

15

32002129
ref: 15

FRAME

€ 1,094.50

16

92075214
ref: 16

DAMPER,FUEL TANK

€ 29.00

17

32097031
ref: 17

CASE,BATTERY

€ 57.00

18

32103003
ref: 18

DAMPER,RECTIFIER RUBB

€ 3.50

19

32103006
ref: 19

MAT-BATTERY

€ 3.00

20

92072045
ref: 20

BAND-OIL TANK

€ 10.00

21

311B0600
ref: 21

NUT,6MM

€ 0.50

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50

23

92027129
ref: 23

COLLAR,6.8X10X8.5

€ 3.00

24

92075076
ref: 24

DAMPER

€ 3.00

25

92022125
ref: 25

WASHER,6.5X20X1.6

€ 1.00

26

112B0622
ref: 26

BOLT, 6X22

€ 2.50

27

220B0614
ref: 27

SCREW-PAN HEAD,6X14

€ 2.00

28

464H0600
ref: 28

WASHER-LOCK,6MM

€ 0.50

29

92072053
ref: 29

BAND-SPARK PLUG COVER

€ 8.50

30

32132003
ref: 30

COVER-SPARK PLUG

€ 3.00

31

32132002
ref: 31

HOLDER-SPARK PLUG COV

€ 2.00

32

35032028
ref: 32

STAY,REAR FENDER

€ 62.50

33

411B0800
ref: 33

WASHER-PLAIN,8MM

€ 0.50

34

461F0800
ref: 34

WASHER-SPRING,8MM

€ 0.50

35

115G0820
ref: 35

BOLT,8X20

€ 2.00

36

92071056
ref: 36

GROMMET

€ 2.50

37

920011602
ref: 37

BOLT,FLANGED,10X110

€ 7.50

38

32030023
ref: 38

PLATE-ENGINE MOUNT

€ 8.00

39

461F1000
ref: 39

WASHER-SPRING,10MM

€ 0.50

40

314B1000
ref: 40

NUT,10MM

€ 0.50

41

92003182
ref: 41

BOLT, 10 X 237

€ 7.00

42

92003181
ref: 42

BOLT,10X225

€ 8.50

43

92003209
ref: 43

BOLT, 10X252

€ 8.50

44

920011182
ref: 44

BOLT,10X45

€ 6.00

44

920011581
ref: 44

BOLT,FLANGED,8X60

€ 3.50

45

32030030
ref: 45

PLATE,ENGINE

€ 11.50

46

461F0800
ref: 46

WASHER-SPRING,8MM

€ 0.50

47

311B0800
ref: 47

NUT,8MM

€ 0.50
