SWINGARM/SHOCK ABSORBER
KH125M5 2000 CANADA

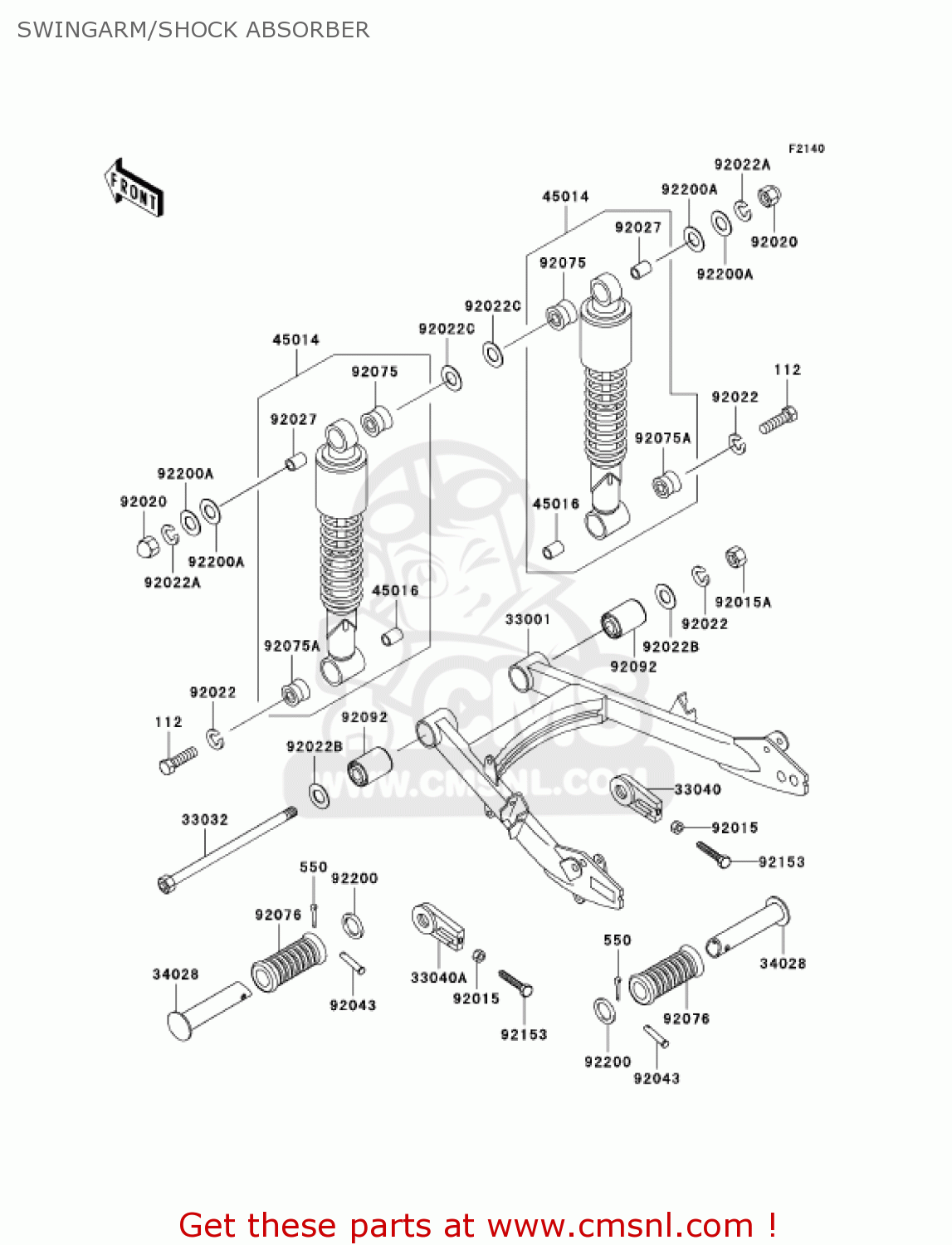

Swingarm/shock absorber diagram KH125M5 2000 CANADA
SWINGARM/SHOCK ABSORBER KH125M5 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112N1035
ref: 112
BOLT-UPSET,10X35
€ 6.00
550
550D2518
ref: 550
PIN,COTTER,2.5X18
€ 0.50
33001
330011212
ref: 33001
ARM-COMP-SWING
€ 43.00
33032
33032039
ref: 33032
SHAFT-SWING ARM
€ 25.50
33040
330401025
ref: 33040
ADJUSTER-CHAIN,RH
€ 4.50
33040A
330401054
ref: 33040A
CHAIN ADJUSTER,LH
€ 4.00
34028
340281023
ref: 34028
REAR FOOTREST BAR
€ 2.50
45014
450141650
ref: 45014
SHOCKABSORBER
€ 75.00
45016
45016003
ref: 45016
COLLAR,SHOCKABSORBER
€ 12.50
92015
920151364
ref: 92015
NUT,8MM
€ 2.50
92015A
920151416
ref: 92015A
NUT,10MM
€ 3.00
92020
92020014
ref: 92020
NUT,CAP,12MM
€ 6.50
92022
920221540
ref: 92022
WASHER,SPRING,10MM
€ 2.50
92022A
920221541
ref: 92022A
WASHER,SPRING,12MM
€ 0.50
92022B
920221558
ref: 92022B
WASHER,10.5X22X1.6
€ 2.00
92022C
920221563
ref: 92022C
WASHER
€ 0.50
92027
920271031
ref: 92027
COLLAR,SHOCKABSORBER
€ 3.00
92043
92043080
ref: 92043
PIN-FOOTREST BAR FIT
€ 3.50
92075
920751019
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751020
ref: 92075A
DAMPER,SHOCKABSORBER
€ 3.00
92076
92076020
ref: 92076
DAMPER
€ 7.50
92092
92092006
ref: 92092
BUSHING-RUBBER,SWING
€ 11.50
92153
921531194
ref: 92153
BOLT,CHAIN ADJUSTER,8
€ 1.00
92200
922001120
ref: 92200
WASHER, 19.5X28X2.3
€ 2.00
92200A
922001541
ref: 92200A
WASHER,12.5X26X2.3
€ 0.50
