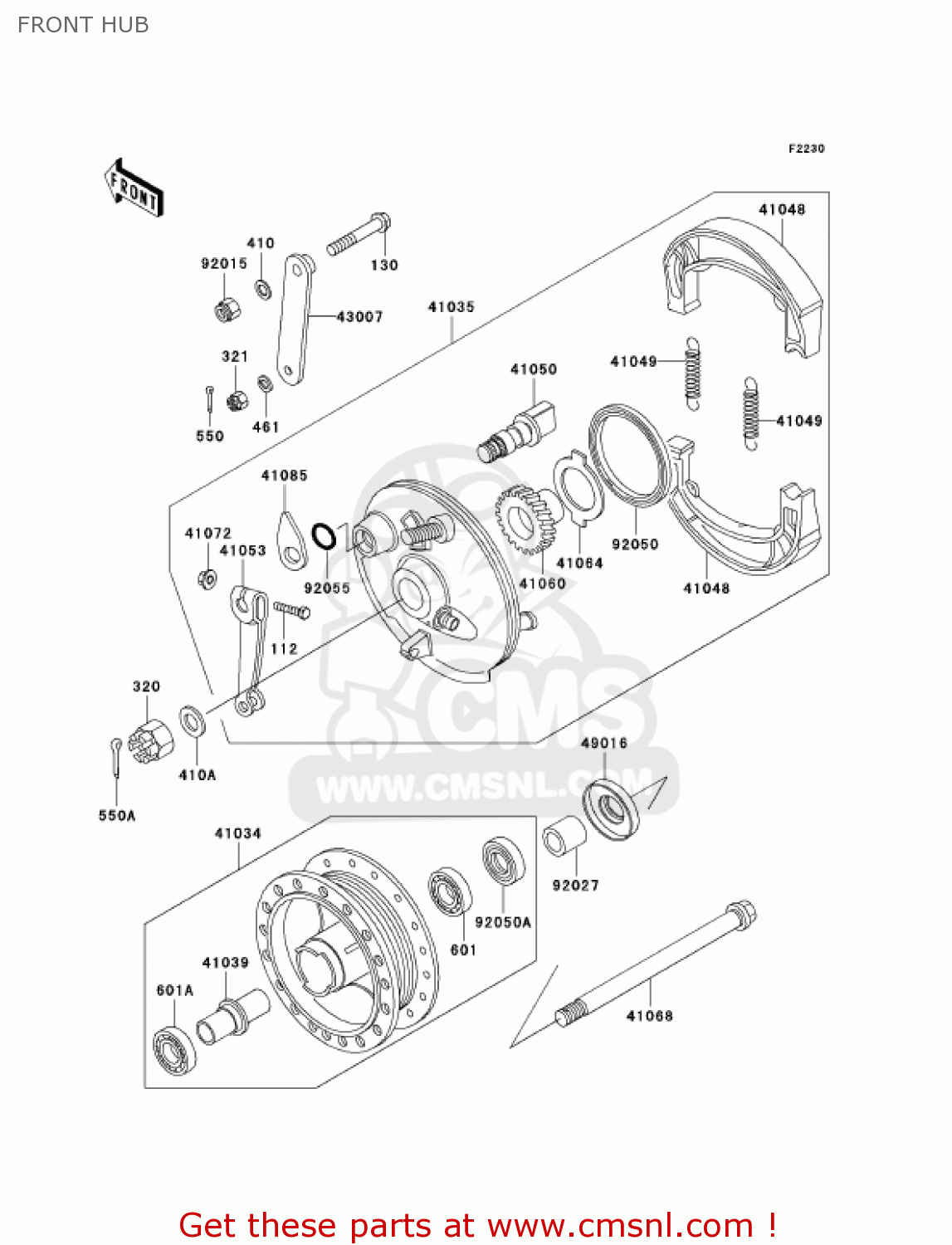

FRONT HUB

ref

part #

description

quantity

112

112V0630
ref: 112

BOLT-UPSET,6X30

€ 1.00

130

130G1060
ref: 130

BOLT

€ 6.00

320

320G1200
ref: 320

NUT-CASTLE

€ 2.50

321

321B0800
ref: 321

NUT-CASTLE,8MM

€ 3.00

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

410A

410B1200
ref: 410A

WASHER-PLAIN-SMALL,12

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

550

550D2025
ref: 550

PIN-COTTER,2.0X25

€ 2.00

550A

550D3025
ref: 550A

PIN-COTTER,3.0X25

€ 0.50

601

601B6301G
ref: 601

BEARING-BALL,#6301G

€ 13.00

601A

601B6301UG
ref: 601A

BEARING-BALL,#6301UG

€ 27.00

41034

410341309
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 81.50

41035

410351163
ref: 41035

PANEL-ASSY-BRAKE,FR

€ 162.50

41039

41039005
ref: 41039

COLLAR,L=47

€ 8.50

41048

410481087
ref: 41048

SHOE-BRAKE (NAS)

€ 15.00

41049

41049002
ref: 41049

SPRING-BRAKE SHOE

€ 5.50

41050

410501004
ref: 41050

CAM-BRAKE

€ 20.00

41053

41053005
ref: 41053

LEVER-BRAKE CAM

€ 11.50

41060

410601044
ref: 41060

METER SCREW GEAR,22T

€ 17.00

41064

41064009
ref: 41064

RECEIVER-SPEEDOMETER

€ 7.50

41068

410681368
ref: 41068

AXLE,FRONT

€ 5.50

41072

41072007
ref: 41072

NUT,6MM

€ 2.50

41085

41085003
ref: 41085

INDICATOR,BRAKE SHOE

€ 9.00

43007

430071012
ref: 43007

FRONT BRAKE TORQUE LINK

€ 12.50

49016

490161011
ref: 49016

DUST COVER

€ 2.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92027

920271054
ref: 92027

COLLAR, FRONT AXLE

€ 7.50

92050

92050010
ref: 92050

OIL SEAL-F BRK PANEL

€ 13.00

92050A

92050011
ref: 92050A

OIL SEAL-FR BRK DRUM

€ 8.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00
