CARBURETOR
KH125M5 2000 CANADA

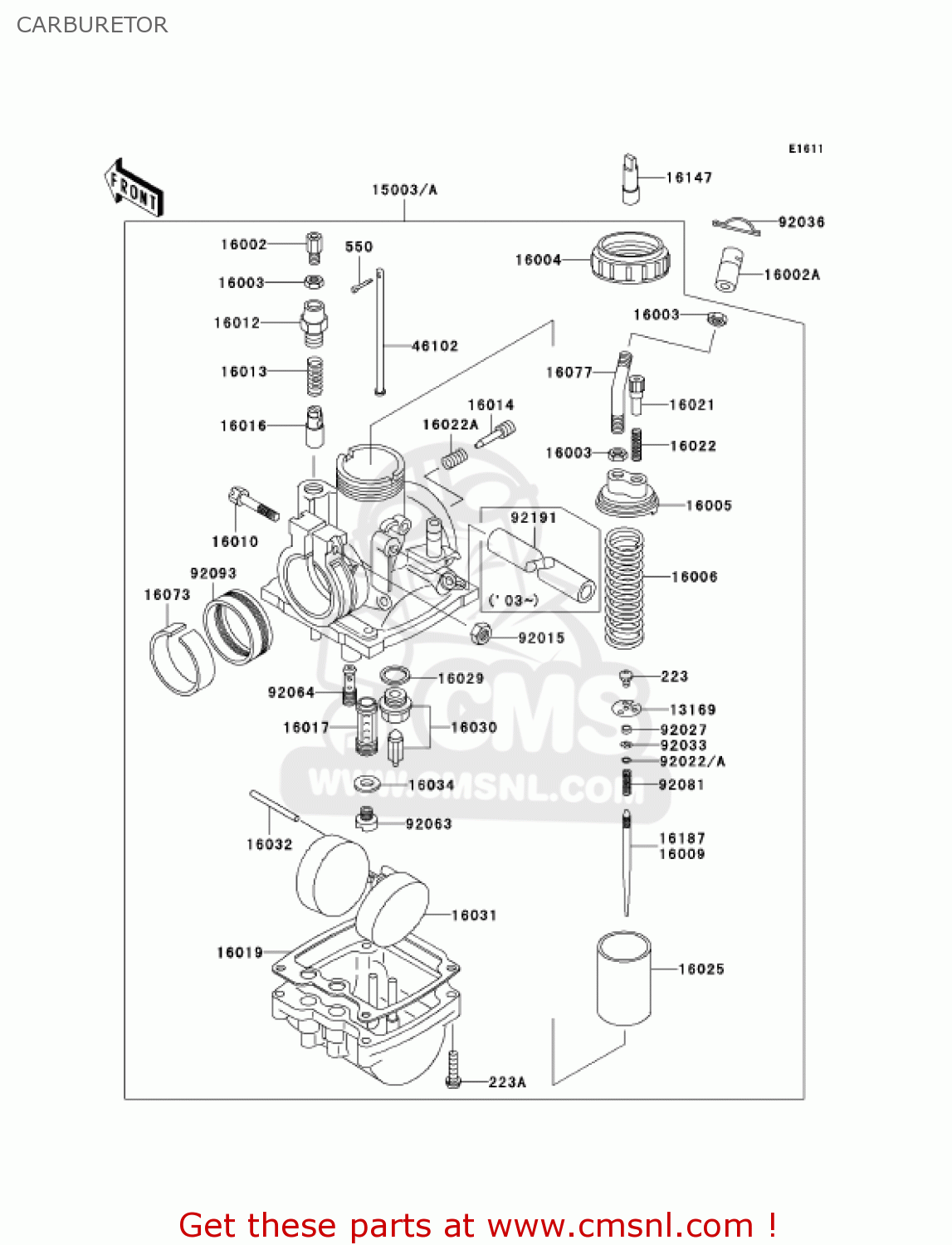

Carburetor diagram KH125M5 2000 CANADA
CARBURETOR KH125M5 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
13169
131691676
ref: 13169
PLATE
€ 4.50
15003
150031552
ref: 15003
CARBURETOR-ASSY
€ 70.50
16002
16002002
ref: 16002
ADJUSTER-CABLE,STARTE
€ 8.00
16002A
16002007
ref: 16002A
ADJUSTER-CABLE,THROTT
€ 7.50
16003
16003004
ref: 16003
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004010
ref: 16004
CAP-CHAMBER,MIXING
€ 13.50
16005
160051006
ref: 16005
TOP-CHAMBER,MIXING
€ 13.50
16006
16006013
ref: 16006
SPRING-THROTTLE VALVE
€ 10.00
16009
160091902
ref: 16009
NEEDLE-JET,5EP1
€ 4.00
16010
16010004
ref: 16010
SCREW-CLAMP
€ 3.50
16012
16012004
ref: 16012
CAP-STARTER PLUNGER
€ 7.50
16013
16013003
ref: 16013
SPRING-STARTER PLUNG
€ 4.00
16014
16014002
ref: 16014
SCREW-PILOT AIR
€ 11.00
16016
16016002
ref: 16016
PLUNGER,STARTER
€ 20.00
16017
160171385
ref: 16017
JET-NEEDLE,O-6
€ 12.50
16019
16019021
ref: 16019
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
16021
16021002
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16022
16022005
ref: 16022
SPRING-THR STOP SCREW
€ 5.50
16022A
16022007
ref: 16022A
SPRING-THR STOP SCREW
€ 5.50
16025
160251206
ref: 16025
VALVE-THROTTLE,CA2.0
€ 13.50
16029
16029004
ref: 16029
WASHER-FLOAT VLV SEAT
€ 2.50
16030
160301001
ref: 16030
VALVE-FLOAT,2.0
€ 40.50
16031
16031015
ref: 16031
FLOAT
€ 40.50
16032
16032003
ref: 16032
FLOAT PIN
€ 4.00
16034
16034001
ref: 16034
WASHER-MAIN JET
€ 2.50
16073
160731008
ref: 16073
INSULATOR
€ 10.00
16077
16077008
ref: 16077
GUIDE,CABLE
€ 6.50
16147
16147001
ref: 16147
PLUG,12X40
€ 3.00
46102
461021009
ref: 46102
ROD,THROTTLE VALVE
€ 4.00
92015
920151026
ref: 92015
NUT, 6M/M
€ 4.00
92022A
920221068
ref: 92022A
THROTTLE VALVE WASHER
€ 4.00
92027
920271103
ref: 92027
RING,JET NEEDLE
€ 4.50
92033
920331290
ref: 92033
RING-SNAP
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92063
920631042
ref: 92063
JET-MAIN,#A105R
€ 10.50
92064
920641179
ref: 92064
JET-PILOT,27.5
€ 3.00
92081
920811072
ref: 92081
NEEDLE JET SPRING
€ 2.50
223
223D0308
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0418
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
550
550D1208
ref: 550
PIN-COTTER
€ 0.00
92093
920931056
ref: 92093
SEAL
€ 7.00
