METERS/IGNITION SWITCH

KE175-B1 KE175 1976 USA CANADA / MPH KPH

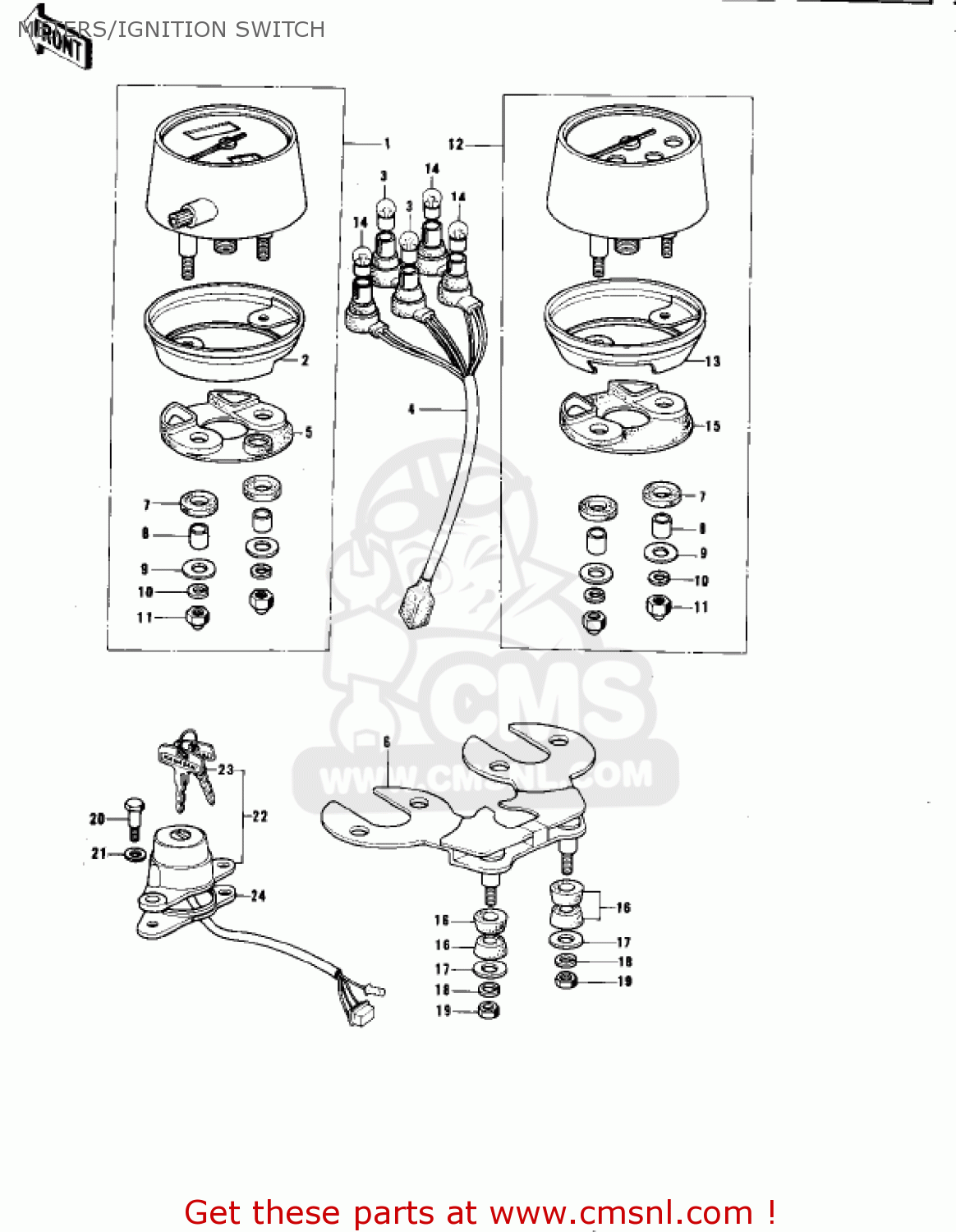

Meters/ignition switch diagram KE175-B1 KE175 1976 USA CANADA / MPH KPH

METERS/IGNITION SWITCH KE175-B1 KE175 1976 USA CANADA / MPH KPH
METERS/IGNITION SWITCH KE175-B1 KE175 1976 USA CANADA / MPH KPH
METERS/IGNITION SWITCH KE175-B1 KE175 1976 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
25006051
ref: 1
SPEEDOMETER ASSY,MPH
€ 146.50
1
25006059
ref: 1
SPEEDOMETER ASSEMBLY,KPH
€ 0.00
2
25012017
ref: 2
COVER,SPEEDOMETER
25012017
€ 23.00
3
92069024
ref: 3
BULB 6V 1.5W
92069024
€ 3.00
4
25011038
ref: 4
SOCKET,SPEEDOMETER
25011038
€ 29.00
5
25019018
ref: 5
DAMPER,SPEEDOMETER
25019018
€ 7.00
6
25008034
ref: 6
BRACKET-METER
25008034
€ 29.00
7
25019019
ref: 7
DAMPER,METER
25019019
€ 4.50
8
25021004
ref: 8
COLLAR,5.5X7.5X12.2
25021004
€ 3.00
9
92022285
ref: 9
WASHER,5.2X18X1.2
92022285
€ 4.50
10
461F0500
ref: 10
(N/R KE175-B2/-B3)
WASHER-SPRING,5MM
461F0500
€ 0.50
11
322N0500
ref: 11
NUT-CAP,5MM
322N0500
€ 2.00
12
25027010
ref: 12
TACHOMETER ASSY
25027010
€ 170.50
13
25012018
ref: 13
COVER,TACHOMETER
25012018
€ 22.50
14
92069053
ref: 14
BULB 6V 3W
92069053
€ 3.00
15
25019020
ref: 15
DAMPER RUBBER,METER
25019020
€ 5.50
16
92075248
ref: 16
DAMPER,METER BRACKET
92075248
€ 3.50
17
92022237
ref: 17
WASHER-PLAIN
92022237
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
461F0600
€ 0.50
19
311B0600
ref: 19
NUT,6MM
311B0600
€ 0.50
20
92007026
ref: 20
BOLT-HEX HEAD,6MM
92007026
€ 6.00
21
410B0800
ref: 21
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
22
27005077
ref: 22
IGNITION SWITCH
27005077
€ 121.00
23
2700805431
ref: 23
KEY SET,#431
€ 14.00
23
2700805432
ref: 23
KEY SET,#432
2700805432
€ 9.50
23
2700805433
ref: 23
KEY SET,#433
2700805433
€ 9.50
23
2700805434
ref: 23
KEY SET,#434
2700805434
€ 14.00
23
2700805435
ref: 23
KEY SET,#435
2700805435
€ 14.00
23
2700805436
ref: 23
KEY SET,#436
2700805436
€ 14.00
23
2700805437
ref: 23
KEY SET,#437
€ 9.50
23
2700805438
ref: 23
KEY SET,#438
2700805438
€ 14.00
23
2700805439
ref: 23
KEY SET,#439
2700805439
€ 9.00
23
2700805440
ref: 23
KEY SET,#440
2700805440
€ 9.50
23
2700805441
ref: 23
KEY SET,#441
2700805441
€ 9.00
23
2700805442
ref: 23
KEY SET,#442
€ 14.00
23
2700805443
ref: 23
KEY SET,#443
2700805443
€ 16.00
23
2700805444
ref: 23
KEY SET,#444
€ 9.00
23
2700805445
ref: 23
KEY SET,#445
2700805445
€ 14.00
23
2700805446
ref: 23
KEY SET,#446
€ 9.00
23
2700805447
ref: 23
KEY SET,#447
€ 14.00
23
2700805448
ref: 23
KEY SET,#448
2700805448
€ 14.00
23
2700805449
ref: 23
KEY SET,#449
€ 14.00
23
2700805450
ref: 23
KEY SET,#450
€ 14.00
23
270081024
ref: 23
KEY-LOCK,BLANK
270081024
€ 14.00
23
270081025
ref: 23
KEY-LOCK,BLANK
270081025
€ 14.00
23
270081026
ref: 23
KEY-LOCK,BLANK
270081026
€ 10.50
23
270081027
ref: 23
KEY-LOCK,BLANK
270081027
€ 10.50
24
92075077
ref: 24
DAMPER RUBBER
92075077
€ 7.00
