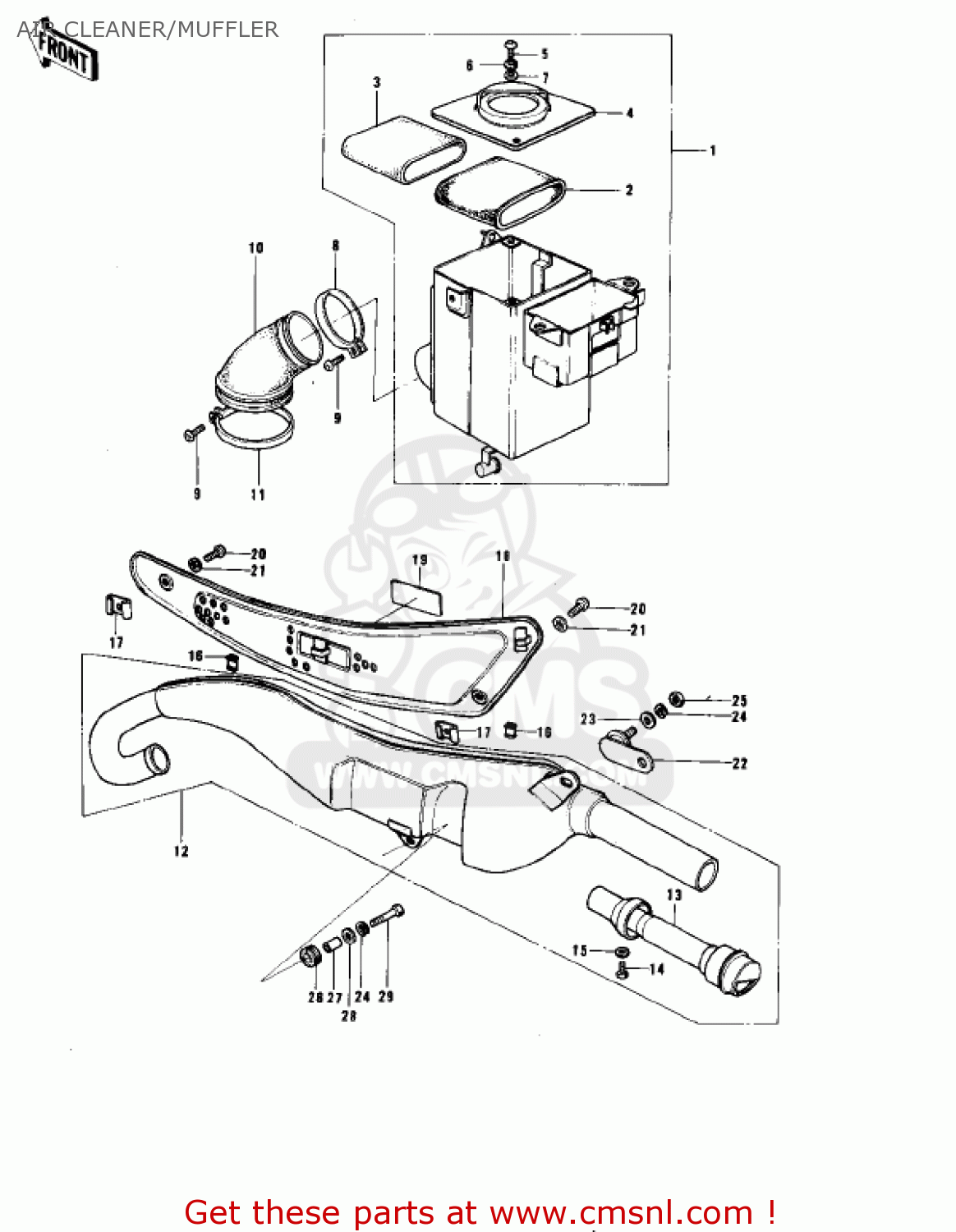

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

1101007121
ref: 1
FLAT BLACK

AIR CLEANER ASY,BLAK

€ 71.00

2

11014011
ref: 2

HOLDER,AIR FILTER ELE

€ 12.00

3

110131033
ref: 3

ELEMENT-AIR FILTER

€ 27.00

4

1101203921
ref: 4
FLAT BLACK

CAP,AIR CLEANER

€ 9.00

5

220B0612
ref: 5

SCREW-PAN HEAD,6X12

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

92037129
ref: 8

CLAMP,AIR FILTER,ID=7

€ 8.50

9

220C0635
ref: 9

SCREW-PAN-CROS,6X35,B

€ 3.50

10

11026014
ref: 10

CONNECTOR,AIR CLEANER

€ 7.00

11

92037128
ref: 11

CLAMP,AIR CLEANER

€ 4.00

12

1800115021
ref: 12
FLAT BLACK

MUFFLER ASSY,F.BLACK

€ 243.50

13

18033091
ref: 13

BAFFLE TUBE

€ 59.50

14

112G0612
ref: 14

BOLT-UPSET

€ 2.50

15

92022183
ref: 15

WASHER,6.2X11X1.5

€ 2.50

16

18065007
ref: 16

INSULATOR,HEAT

€ 3.00

17

18065010
ref: 17

INSULATOR,HEAT

€ 2.50

18

18064014
ref: 18

COVER,MUFFLER

€ 37.00

19

56018225
ref: 19

EMBLEM, MUFFLER COVER

€ 12.50

20

220E0612
ref: 20

SCREW-PAN HEAD,6X12

€ 3.00

21

463H0600
ref: 21

WASHER-LOCK,6MM

€ 0.50

22

18061054
ref: 22

BRACKET,MUFFLER

€ 16.50

23

920221561
ref: 23

WASHER,8.5X20X1.6

€ 2.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

311B0800
ref: 25

NUT,8MM

€ 0.50

26

18063005
ref: 26

DAMPER,MUFFLER

€ 3.00

27

92027102
ref: 27

COLLAR

€ 1.00

28

920221564
ref: 28

WASHER

€ 2.50

29

115G0830
ref: 29

BOLT-SMALL-UPSET,8X30

€ 3.00
