HEADLIGHT/TAILLIGHT ('74-'75)
KE125-A6 KE125 1979 USA CANADA

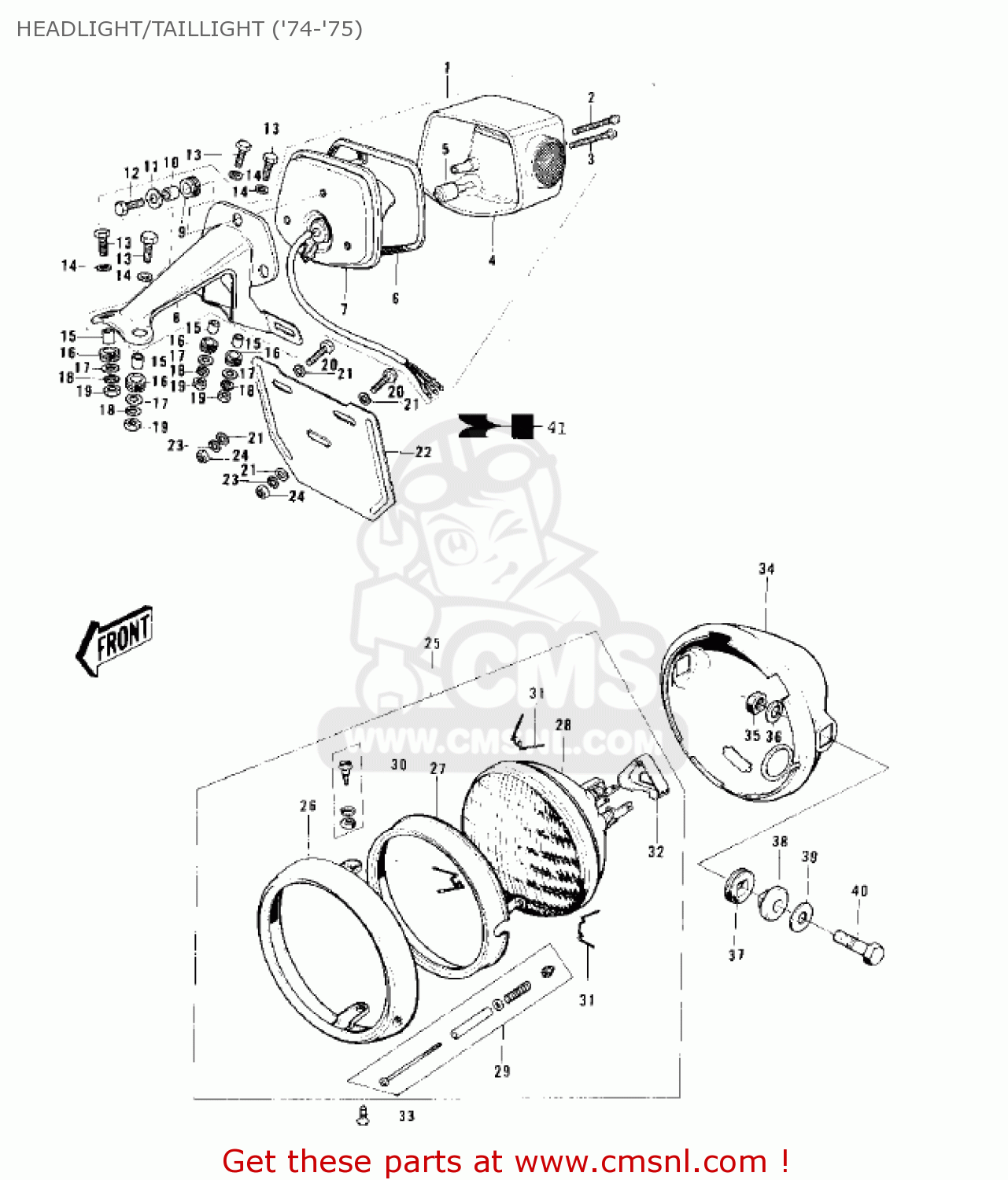

Headlight/taillight ('74-'75) diagram KE125-A6 KE125 1979 USA CANADA
HEADLIGHT/TAILLIGHT ('74-'75) KE125-A6 KE125 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
2302404821
ref: 1
FLAT BLACK
TAIL LAMP ASSEMBLY,FLAT BLACK
€ 380.50
2
220R0455
ref: 2
SCREW-PAN-CROS
€ 3.50
3
220E0450
ref: 3
SCREW-PAN HEAD,4X50
€ 3.00
4
23026028
ref: 4
LENS,TAIL LAMP,W/REFL
€ 48.50
5
92069074
ref: 5
BULB,6V-32X3CP
€ 4.50
6
23028019
ref: 6
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
7
230271018
ref: 7
TAIL LAMP BODY,COMPLETE
€ 55.00
8
2303603721
ref: 8
FLAT BLACK
TAIL LAMP BRACKET,FLAT BLACK
€ 151.50
9
92075076
ref: 9
DAMPER
€ 3.00
10
92027129
ref: 10
COLLAR,6.8X10X8.5
€ 3.00
11
92022125
ref: 11
WASHER,6.5X20X1.6
€ 1.00
12
110B620
ref: 12
UNAVAILABLE IN PRICE BOOK
€ 0.00
13
112G0630
ref: 13
BOLT-UPSET
€ 1.00
14
92022237
ref: 14
WASHER-PLAIN
€ 2.50
15
92027120
ref: 15
COLLAR
€ 3.00
16
92075209
ref: 16
DAMPER RUBBER
€ 3.00
17
92022125
ref: 17
WASHER,6.5X20X1.6
€ 1.00
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
311B0600
ref: 19
NUT,6MM
€ 0.50
20
112G0620
ref: 20
BOLT 6X20
€ 1.00
21
410B0600
ref: 21
WASHER-PLAIN-SMALL,6M
€ 0.50
22
110341117
ref: 22
BRACKET,LICENSE PLATE
€ 12.50
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
311B0600
ref: 24
NUT,6MM
€ 0.50
25
23003021
ref: 25
HEADLAMP,UNIT
€ 309.00
26
23006042
ref: 26
RIM,HEAD LAMP
€ 43.00
27
23072002
ref: 27
RETAINER,SEALED BEAM
€ 29.50
28
23007055
ref: 28
LENS-COMP,4020 MARK
€ 60.00
29
230135001
ref: 29
SCREW ASSY,FOCUS AJST
€ 10.50
30
23013007
ref: 30
SCREW ASY,LENS UNIT
€ 3.50
31
23009015
ref: 31
SPRING,HEAD LAMP LENS
€ 3.50
32
23081001
ref: 32
COVER,HD LAMP SOCKET
€ 6.50
33
23019025
ref: 33
SCREW,PAN HEAD,5X14
€ 1.50
34
2300504421
ref: 34
FLAT BLACK
HEADLAMP BODY,FLAT BLACK
€ 144.00
35
314B1000
ref: 35
NUT,10MM
€ 0.50
36
461F1000
ref: 36
WASHER-SPRING,10MM
€ 0.50
37
23066011
ref: 37
DAMPER
€ 3.50
38
23052005
ref: 38
COLLAR,L=9.6
€ 8.50
39
411D1000
ref: 39
WASHER-PLAIN,10MM
€ 3.00
40
92007041
ref: 40
BOLT,HEX HEAD,10X30
€ 7.00
41
56018176
ref: 41
EMBLEM,LICENSE PLATE
€ 8.50
