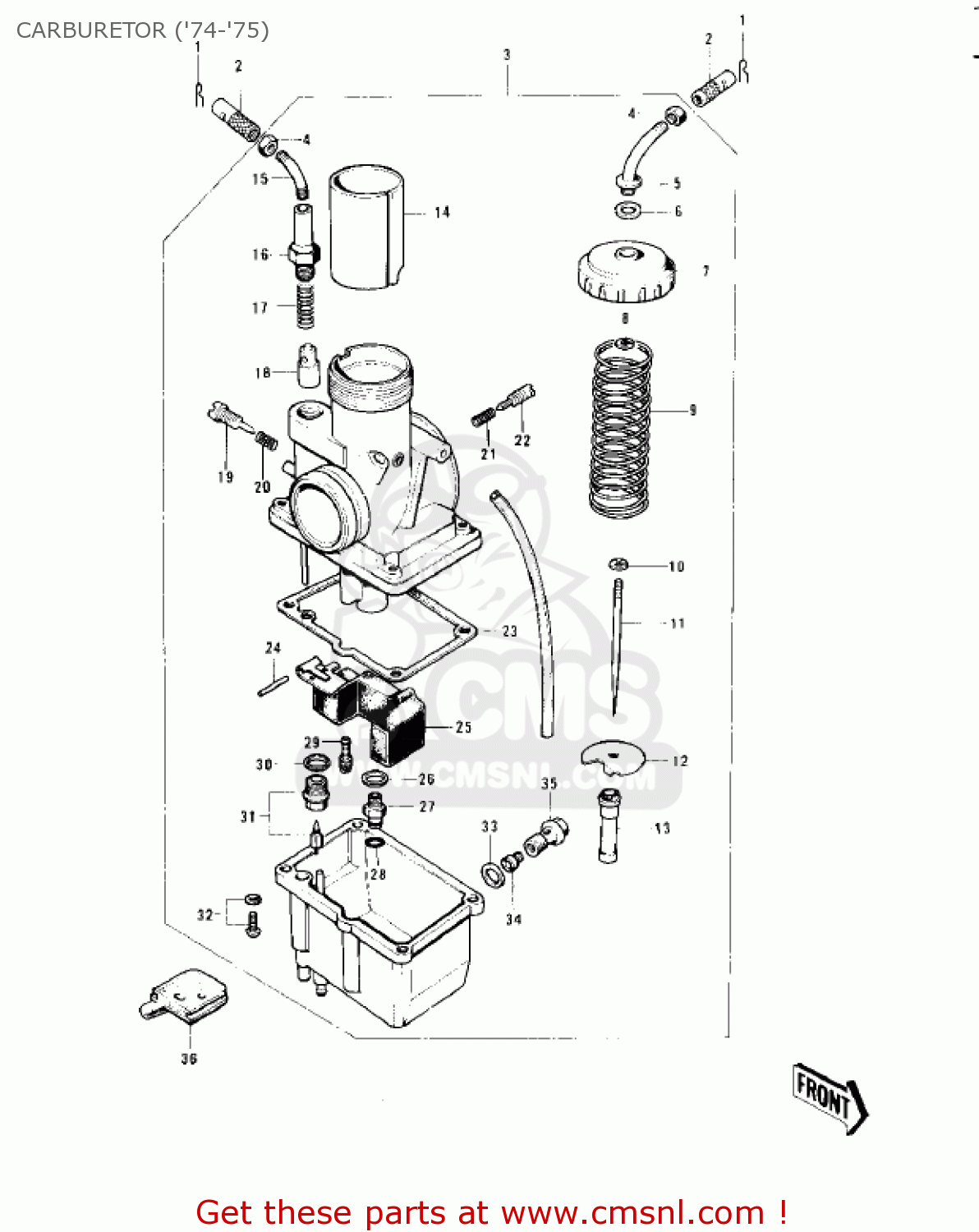

CARBURETOR ('74-'75)

ref

part #

description

quantity

1

92036018
ref: 1

CIRCLIP

€ 2.50

2

16002007
ref: 2

ADJUSTER-CABLE,THROTT

€ 7.50

3

16001199
ref: 3

CARBURETOR ASSY

€ 317.00

4

16003004
ref: 4

NUT-CABLE ADJUST LOCK

€ 4.50

5

16077011
ref: 5

GUIDE,CABLE

€ 13.50

6

16029007
ref: 6

GASKET,CABLE GUIDE (NAS)

€ 5.50

7

16004024
ref: 7

CAP,MIXING CHAMBER

€ 13.50

8

16008011
ref: 8

CLAMP,CABLE GUIDE

€ 4.50

9

16006029
ref: 9

SPRING,THROTTLE VALVE

€ 13.00

10

16008010
ref: 10

CLAMP,E-TYPE

€ 5.00

11

16009040
ref: 11

NEEDLE-JET,4EJ3

€ 28.00

12

16007023
ref: 12

SPRING SEAT,THRTL VL

€ 7.00

13

16017085
ref: 13

NEEDLE JET,O-4

€ 25.00

14

16025079
ref: 14
CA2.5

VALVE,THROTTLE,CA2.5

€ 45.50

15

16077010
ref: 15

GUIDE,CABLE

€ 13.00

16

16012017
ref: 16

CAP-STARTER PLUNGER

€ 11.50

17

16013003
ref: 17

SPRING-STARTER PLUNG

€ 4.00

18

16016002
ref: 18

PLUNGER,STARTER

€ 20.00

19

16021023
ref: 19

SCREW-THROTTLE STOP

€ 12.50

20

16022005
ref: 20

SPRING-THR STOP SCREW

€ 5.50

21

16022007
ref: 21

SPRING-THR STOP SCREW

€ 5.50

22

16014002
ref: 22

SCREW-PILOT AIR

€ 11.00

23

16019023
ref: 23

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

24

16032006
ref: 24

PIN,FLOAT

€ 4.00

25

16031026
ref: 25

FLOAT

€ 40.00

26

16034001
ref: 26

WASHER-MAIN JET

€ 2.50

27

16065008
ref: 27

HOLDER,JET NEEDLE

€ 12.00

28

92055044
ref: 28

'O' RING

€ 7.00

29

92064022
ref: 29

PILOT JET #30 ISO

€ 11.50

30

16029004
ref: 30

WASHER-FLOAT VLV SEAT

€ 2.50

31

16030025
ref: 31

VALVE-FLOAT,#2.6

€ 82.00

32

223B0414
ref: 32

SCREW PAN-WS-CROS

€ 2.50

33

16034005
ref: 33

WASHER,BANJO BOLT (MCA)

€ 3.00

34

920631033
ref: 34
STD

JET-MAIN,#A100R

€ 17.00

34

92063063
ref: 34

MAIN JET,#97.5R

€ 10.00

35

92001097
ref: 35

BOLT-BANJO

€ 15.50

36

16136009
ref: 36

GROMMET,OVERFLOW

€ 6.00

all assemblies
