FENDERS ('76-'79)
KE125-A6 KE125 1979 USA CANADA

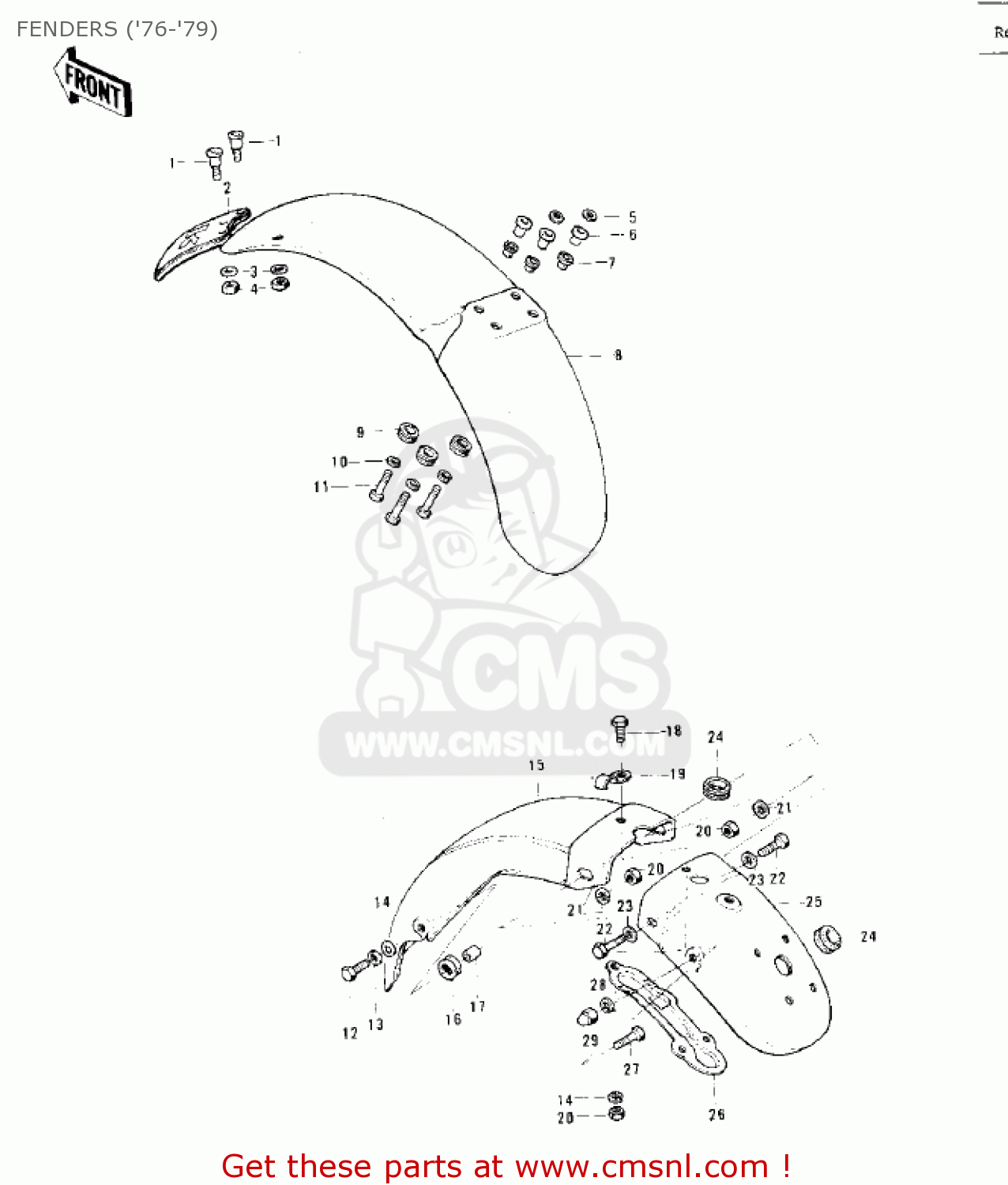

Fenders ('76-'79) diagram KE125-A6 KE125 1979 USA CANADA
FENDERS ('76-'79) KE125-A6 KE125 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92001134
ref: 1
BOLT,5X12
€ 3.00
2
35019007
ref: 2
FLAP,FENDER
€ 9.00
3
410B0500
ref: 3
WASHER-PLAIN-SMALL,5M
€ 0.50
4
311B0500
ref: 4
NUT-HEX
€ 0.50
5
92022228
ref: 5
WASHER-PLAIN,7MM
€ 2.50
6
92027194
ref: 6
COLLAR
€ 3.50
7
92075103
ref: 7
DAMPER
€ 2.50
8
350040861W
ref: 8
METALLIC SILVER
FENDER,FRONT,SILVER
€ 69.00
8
3500410016V
ref: 8
KE125-A5
FENDER,FRONT,WHITE
€ 48.50
8
3500410016N
ref: 8
KE125-A6
FENDER,FRONT,M.BLUE
€ 31.00
8
3500410016L
ref: 8
KE125-A6
FENDER,FRONT,F.RED
€ 35.50
9
92075121
ref: 9
DAMPER,FENDER
€ 2.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
112G0625
ref: 11
BOLT-UPSET,6X25
€ 4.00
12
112G0616
ref: 12
BOLT UPSET,6X16
€ 1.00
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
92022125
ref: 14
WASHER,6.5X20X1.6
€ 1.00
15
35022100
ref: 15
FENDER-COMP-REAR,FR
€ 33.50
16
92075105
ref: 16
DAMPER
€ 2.50
17
92027103
ref: 17
COLLAR
€ 2.50
18
112B0614
ref: 18
BOLT-UPSET 6X14
€ 2.50
19
35024002
ref: 19
CLAMP,WIRING HARNESS
€ 2.00
20
92019008
ref: 20
NUT-LOCK,6MM
€ 3.00
21
92075223
ref: 21
DAMPER RUBBER,FENDER
€ 1.00
22
112G0618
ref: 22
BOLT-UPSET
€ 0.50
23
410B0600
ref: 23
WASHER-PLAIN-SMALL,6M
€ 0.50
24
92071079
ref: 24
GROMMET,TL LMP WIRE
€ 1.50
25
350221011W
ref: 25
METALLIC SILVER
FENDER,REAR,
€ 76.00
25
35022101A7
ref: 25
KE125-A5
FENDER,REAR,WHITE
€ 73.00
25
35022101B1
ref: 25
KE125-A6
FENDER,REAR,F.RED
€ 76.00
25
35022101B4
ref: 25
KE125-A6
FENDER,REAR,M.BLUE
€ 76.00
26
35021005
ref: 26
GUSSET,REAR FENDER
€ 6.50
27
115G0818
ref: 27
BOLT SMALL-UPSET
€ 2.50
28
461F0800
ref: 28
WASHER-SPRING,8MM
€ 0.50
29
92020007
ref: 29
NUT,CAP,8MM
€ 3.50
