GEAR CHANGE MECHANISM ('76-'79)

KE125-A6 KE125 1979 USA CANADA

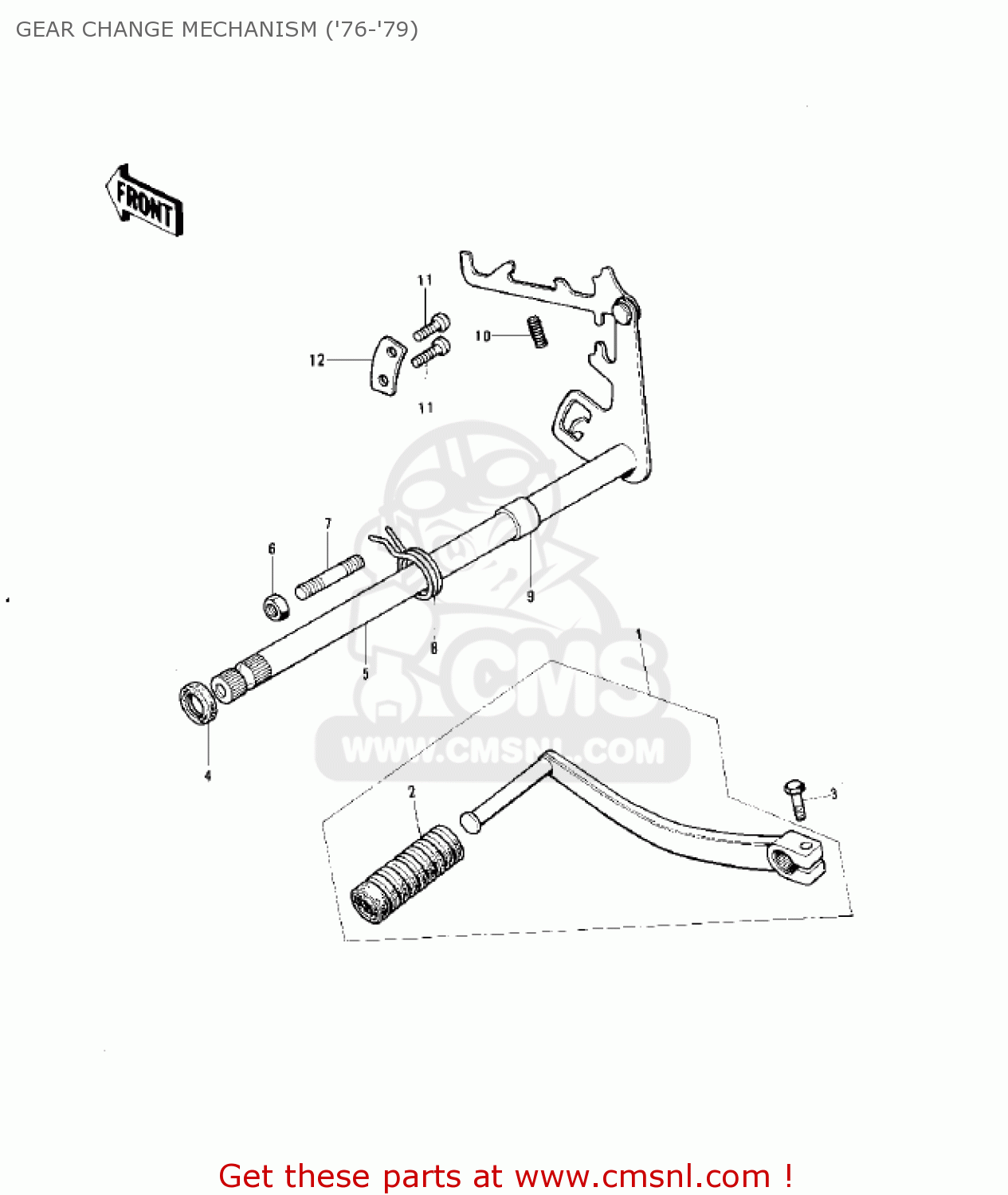

Gear change mechanism ('76-'79) diagram KE125-A6 KE125 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

132421272
ref: 1

LEVER-ASSY-CHANGE,PED

€ 25.50

13157004
ref: 2

RUBBER-CHANGE PEDAL

€ 4.00

112G0620
ref: 3

BOLT 6X20

€ 1.00

920491271
ref: 4

SEAL, OIL

€ 7.00

13161040
ref: 5

LEVER-COMP-CHANGE SHA

€ 51.50

312B0800
ref: 6

NUT,8MM

€ 0.50

920011401
ref: 7

BOLT,RETURN SPRING

€ 3.00

920811129
ref: 8

SPRING,TENTION

€ 6.50

92027205
ref: 9

COLLAR,GEAR CHNG LEV

€ 4.00

92081124
ref: 10

SPRING,GEAR CHANGE

€ 3.00

220B0614
ref: 11

SCREW-PAN HEAD,6X14

€ 2.00

13169013
ref: 12

PLATE,CHNG DRUM PSTN

€ 3.00

13169002
ref: 12
KE125-A4~

PLATE,CHANGE DRUM POS

€ 3.00
