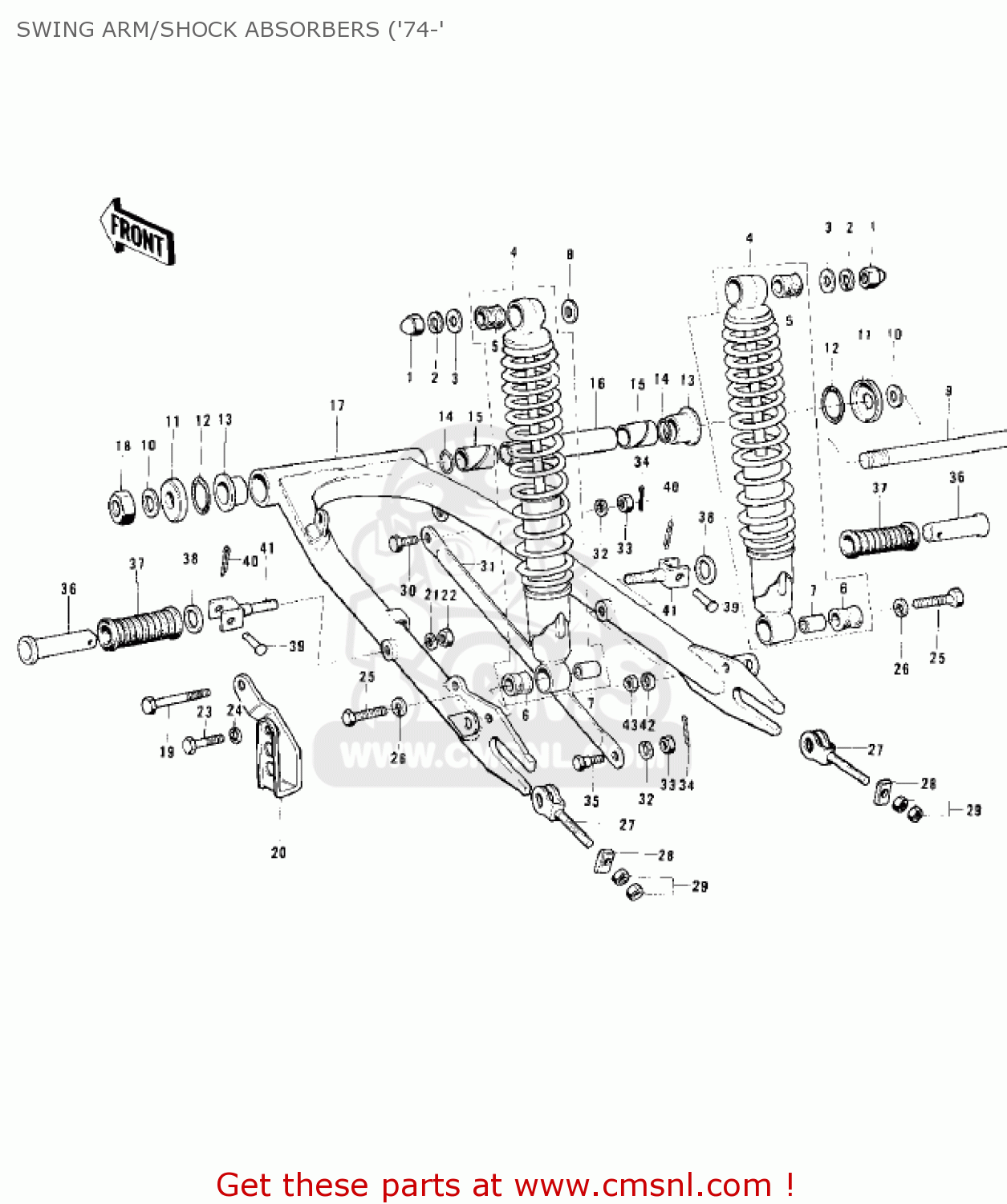

SWING ARM/SHOCK ABSORBERS ('74-'

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

92022044
ref: 3
I.D.=10.5

WASHER,10.5X26X2.3

€ 2.50

4

45014113
ref: 4

SHOCKABSORBER,REAR

€ 171.50

5

45017010
ref: 5

BUSH A-SHCK ABS RUBER

€ 9.00

6

920751020
ref: 6

DAMPER,SHOCKABSORBER

€ 3.00

7

45016003
ref: 7

COLLAR,SHOCKABSORBER

€ 12.50

8

410B1200
ref: 8
I.D.=12.5

WASHER-PLAIN-SMALL,12

€ 0.50

9

33032034
ref: 9

SHAFT-SWING ARM

€ 22.50

10

410B1200
ref: 10

WASHER-PLAIN-SMALL,12

€ 0.50

11

33035005
ref: 11

CAP,SWING ARM

€ 5.50

12

671B2530
ref: 12

O RING,30MM

€ 3.00

13

33033009
ref: 13

BUSHING,SWING ARM

€ 57.00

14

670B2016
ref: 14

O RING,16MM

€ 1.00

15

33034016
ref: 15

SLEEVE,12.1X22X39

€ 14.50

16

33036007
ref: 16

COLLAR,12.7X17.3X106

€ 6.00

17

33001063
ref: 17

ARM,SWING

€ 174.50

18

92019009
ref: 18

NUT,LOCK,12MM

€ 5.00

19

920011254
ref: 19
NOT REQUIRED FOR P/N

BOLT,HEX HEAD,10X50

€ 2.50

20

55020016
ref: 20

GUARD,CHAIN

€ 14.50

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

314B1000
ref: 22

NUT,10MM

€ 0.50

23

115G0816
ref: 23

BOLT-HEX,HEAD 8X16

€ 0.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

113N1035
ref: 25

BOLT-HEX HEAD,10X35

€ 6.00

26

461F1000
ref: 26

WASHER-SPRING,10MM

€ 0.50

27

33040057
ref: 27

ADJUSTER,CHAIN

€ 17.00

28

33041002
ref: 28

PLATE,CHAIN ADJUSTER

€ 9.50

29

311B0800
ref: 29

NUT,8MM

€ 0.50

30

92003143
ref: 30

BOLT,HEX HEAD,8X24

€ 2.50

31

43007039
ref: 31

TORQUE LINK,RR BRAKE

€ 9.00

32

461F0800
ref: 32

WASHER-SPRING,8MM

€ 0.50

33

320B0800
ref: 33

NUT,8MM

€ 1.50

34

550D2020
ref: 34

PIN-COTTER,2.0X20

€ 0.50

35

92003144
ref: 35

BOLT,RR TORQUE LINK

€ 4.00

36

34028009
ref: 36
OPTION

BAR-REAR FOOTREST

€ 24.00

37

92076024
ref: 37
OPTION

DAMPER,STEP

€ 14.50

38

92022199
ref: 38
OPTION

WASHER,20X30X2.3

€ 5.00

39

920431464
ref: 39
OPTION

PIN

€ 5.50

40

550D2012
ref: 40
OPTION

PIN,COTTER,2.0X12

€ 0.50

41

34029013
ref: 41
OPTION

BRACKET R.FOOTREST

€ 15.50

42

461F1000
ref: 42

WASHER-SPRING,10MM

€ 0.50

43

314B1000
ref: 43

NUT,10MM

€ 0.50
