OIL PUMP ('74-'75)
KE125-A3 KE125 1976 USA CANADA

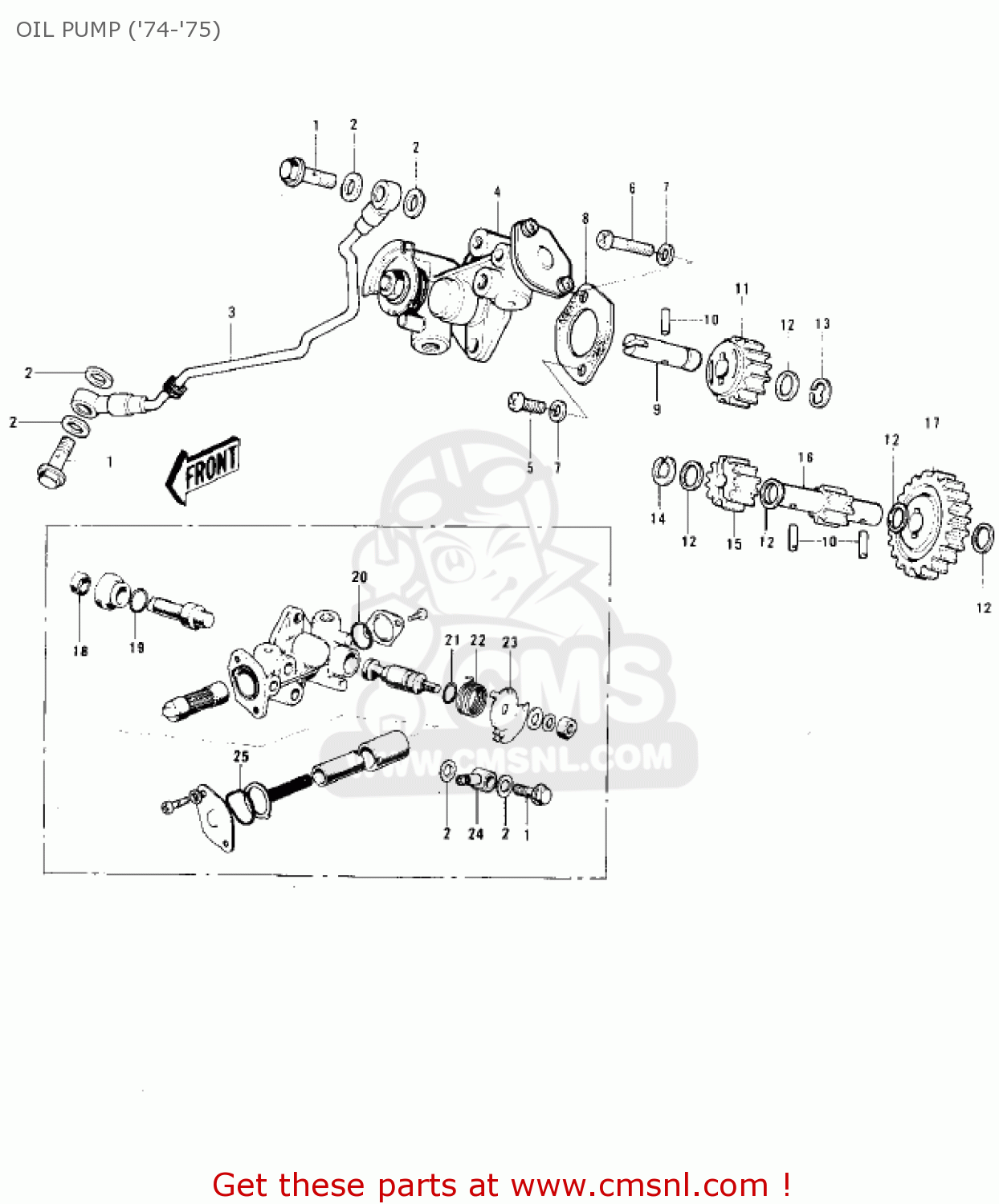

Oil pump ('74-'75) diagram KE125-A3 KE125 1976 USA CANADA
OIL PUMP ('74-'75) KE125-A3 KE125 1976 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
2
92022077
ref: 2
WASHER,6.1X12X1
€ 0.50
3
16134022
ref: 3
TUBE,OIL
€ 24.00
4
16082069
ref: 4
OIL PUMP ASSY
€ 113.00
4
16082069
ref: 4
KS125A
OIL PUMP ASSY
€ 113.00
5
220B0514
ref: 5
ACREW-PAN HEAD,5X14
€ 2.50
6
220B0528
ref: 6
SCREW-PAN-CROS
€ 0.50
7
92022037
ref: 7
WASHER,5.5X10.5X0.8
€ 2.50
8
110601160
ref: 8
GASKET,OIL PUMP (NAS)
€ 3.00
9
16086003
ref: 9
SHAFT,OIL PUMP GEAR
€ 7.50
10
92042035
ref: 10
PIN,DOWEL,2.5X12.8
€ 2.50
11
16085021
ref: 11
12T
GEAR,OIL PUMP,12T
€ 13.00
12
92026095
ref: 12
SPACER,8.3X13X1.0
€ 5.50
13
482J7000
ref: 13
CIRCLIP-TYPE-E,7MM
€ 0.50
14
482J6000
ref: 14
CIRCLIP-TYPE-E,6MM
€ 0.50
15
16085020
ref: 15
10T
GEAR,OIL PUMP,10T
€ 12.00
16
13224010
ref: 16
PINION,TACHOMETER
€ 30.00
17
16085022
ref: 17
20T
GEAR,OIL PUMP,20T
€ 10.50
18
16091001
ref: 18
OIL SEAL-OIL PUMP SHT
€ 4.50
19
16090002
ref: 19
RING-O,OIL PUMP SHAFT
€ 4.50
20
16090003
ref: 20
RING-O,CAP,LWR
€ 7.50
21
920491294
ref: 21
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
22
16093007
ref: 22
SPRING,OIL PUMP LEVER
€ 6.00
23
16096014
ref: 23
LEVER,OIL PUMP CABLE
€ 5.50
24
92061009
ref: 24
FITTING,BANJO
€ 8.50
25
16088002
ref: 25
RING-O,CAP,BANJO SIDE
€ 6.50
