KICKSTARTER MECHANISM ('76-'79)

KE125-A3 KE125 1976 USA CANADA

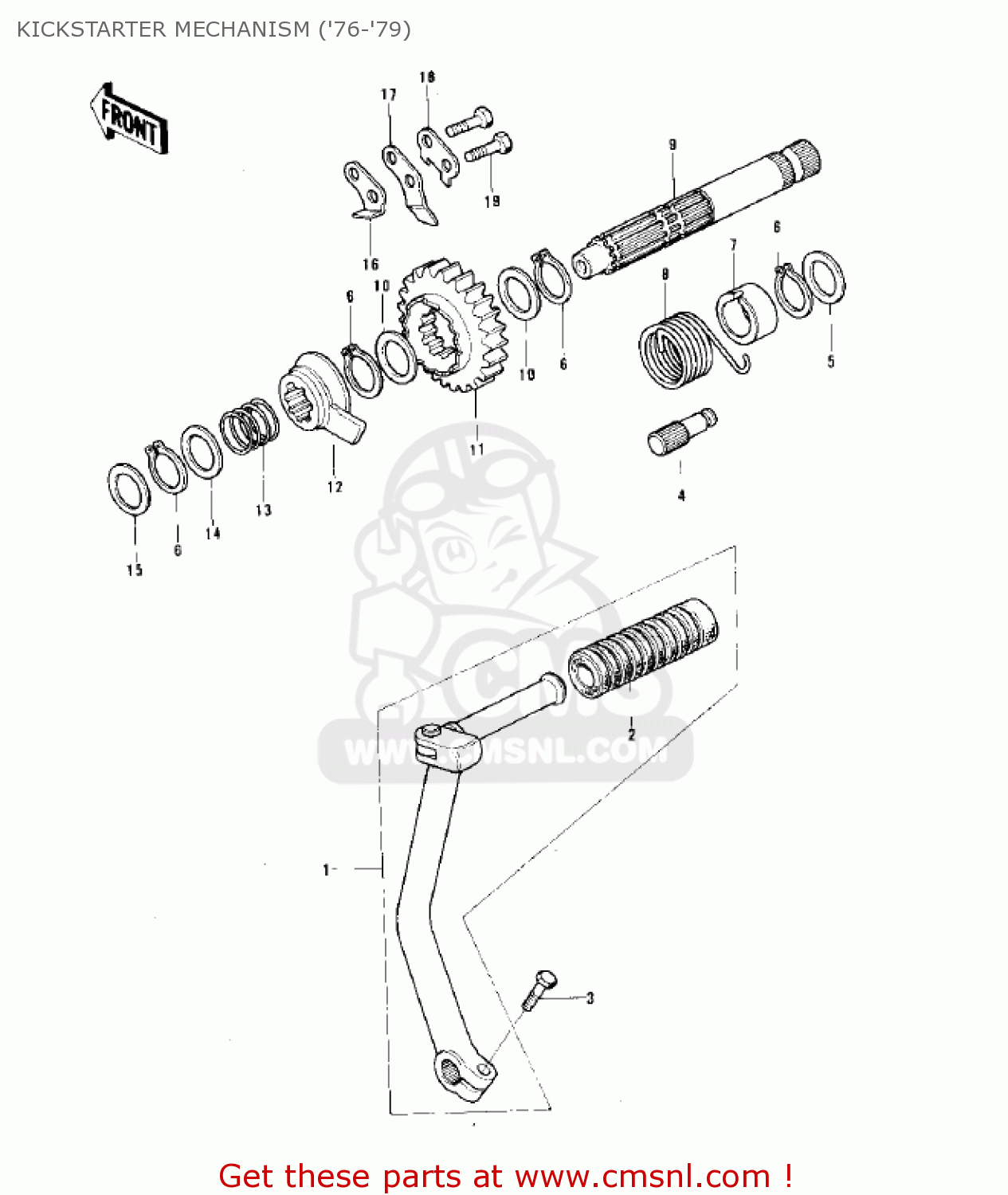

Kickstarter mechanism ('76-'79) diagram KE125-A3 KE125 1976 USA CANADA

KICKSTARTER MECHANISM ('76-'79) KE125-A3 KE125 1976 USA CANADA

KICKSTARTER MECHANISM ('76-'79) KE125-A3 KE125 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

13064019
ref: 1

PEDAL,KICKSTARTER

€ 117.50

2

13063002
ref: 2

RUBBER-KICK PEDAL

€ 3.00

3

115G0825
ref: 3

BOLT-HEX,HEAD,8X25

€ 3.00

4

92043102
ref: 4

PIN

€ 2.50

5

92022268
ref: 5
I.D.=16.3?,1.0

WASHER,16.3X24X1

€ 5.50

6

480J1600
ref: 6

CIRCLIP-TYPE-C,16MM

€ 2.50

7

13070008
ref: 7

GUIDE,KICK SPRING

€ 6.00

8

92082005
ref: 8

SPRING,KICKSTARTER

€ 13.50

9

130661012
ref: 9

SHAFT-KICK

€ 53.50

10

92022315
ref: 10
I.D.=16.3?,0.5

WASHER, 16.8X22X0.5

€ 4.00

10

92022315
ref: 10
KE125-A5~

WASHER, 16.8X22X0.5

€ 4.00

11

13068032
ref: 11
2ET

GEAR-SPUR,KICKSTARTER

€ 44.00

12

130781052
ref: 12

RATCHET,KL250-D2

€ 50.50

13

92081122
ref: 13

SPRING,RATCHET

€ 6.00

14

92022315
ref: 14
I.D.=17.3

WASHER, 16.8X22X0.5

€ 4.00

14

92022315
ref: 14
KE125-A5~

WASHER, 16.8X22X0.5

€ 4.00

15

92022269
ref: 15
I.D.=12.3

WASHER,PLAIN

€ 1.00

16

320851061
ref: 16

STOPPER,KICKSTARTER

€ 4.00

17

13206010
ref: 17

GUIDE,KICKSTATER

€ 6.50

18

92024054
ref: 18

WASHER,LOCK

€ 1.50

19

112G0618
ref: 19

BOLT-UPSET

€ 0.50
