CRANKSHAFT/PISTON/ROTARY VALVE (

KE125-A3 KE125 1976 USA CANADA

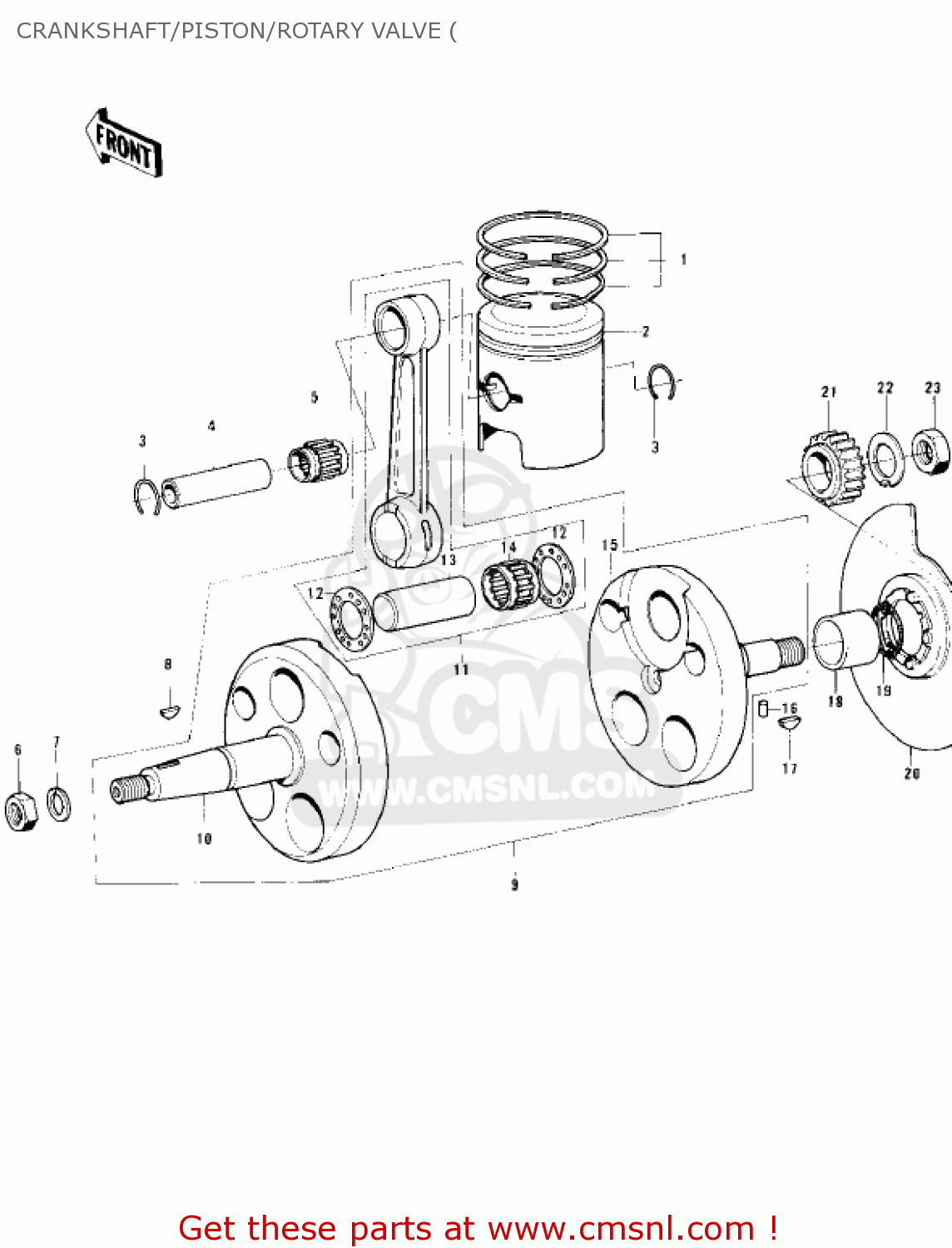

Crankshaft/piston/rotary valve ( diagram KE125-A3 KE125 1976 USA CANADA

CRANKSHAFT/PISTON/ROTARY VALVE ( KE125-A3 KE125 1976 USA CANADA

CRANKSHAFT/PISTON/ROTARY VALVE ( KE125-A3 KE125 1976 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

13008050
ref: 1

RING-SET-PISTON,STD

€ 33.00

2

13001072
ref: 2

PISTON-ENGINE,STD

€ 56.00

3

92036003
ref: 3

CIRCLIP-PISTON PIN

€ 0.50

4

130021002
ref: 4

PIN-PISTON

€ 13.00

5

13033035
ref: 5
PQKBK141819 8X

BEARING-NEEDLE,UR1412

€ 16.00

6

314B1000
ref: 6

NUT,10MM

€ 0.50

7

461F1000
ref: 7

WASHER-SPRING,10MM

€ 0.50

8

510A3200
ref: 8

KEY-WOODRUFF

€ 1.50

9

130311003
ref: 9

CRANKSHAFT-COMP

€ 423.00

10

13037059
ref: 10

CRANKSHAFT,LH

€ 135.50

11

130445003
ref: 11

SET-CONNECTING ROD

€ 153.50

12

92025005
ref: 12

SHIM,20X34.5X1.0

€ 4.50

13

13035033
ref: 13

PIN-CRANK

€ 17.00

14

130341001
ref: 14
72KT064

BEARING-NEEDLE,KT2027

€ 24.00

15

130371084
ref: 15

CRANKSHAFT,R.H

€ 119.50

16

610A0410
ref: 16

ROLLER,4X10

€ 2.50

17

92038003
ref: 17

WOODRUFF KEY-PRY PINI

€ 1.50

18

92027220
ref: 18

COLLAR,R.H CRANKSHFT

€ 28.50

19

670B2016
ref: 19

O RING,16MM

€ 1.00

20

12001025
ref: 20

VALVE,ROTARY DISC

€ 57.00

21

130971040
ref: 21
22T

GEAR-PRIMARY SPUR,22T

€ 86.00

22

92024003
ref: 22

WASHER,CLAW,12.5X25X0

€ 2.50

23

92015006
ref: 23

NUT,12MM

€ 3.50
