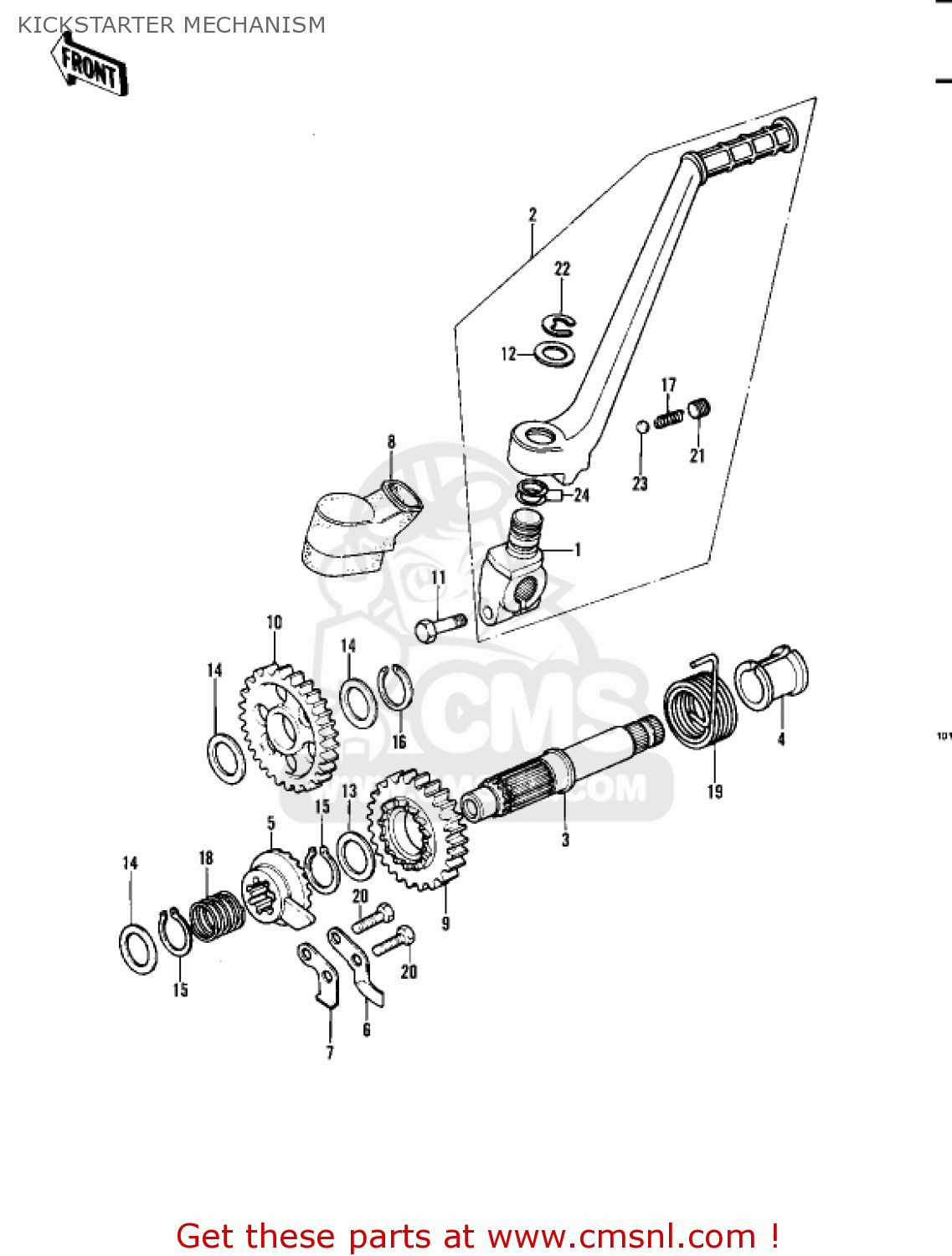

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130611007
ref: 1

BOSS,KICK PEDAL

€ 65.50

2

130645003
ref: 2

LEVER-ASSY-KICK,PEDAL

€ 166.00

3

130661009
ref: 3

SHAFT,KICK

€ 46.50

4

13070007
ref: 4

GUIDE,KICK SPRING

€ 5.50

5

13078007
ref: 5

RATCHET

€ 50.00

6

132061003
ref: 6

GUIDE-KICK

€ 7.00

7

13072014
ref: 7

STOPPER,KICKSTARTER

€ 6.50

8

490061006
ref: 8

BOOT,KICKSTARTER

€ 12.50

9

590511016
ref: 9

REAR,KICKSTARTER,25T

€ 73.50

10

590511017
ref: 10

GEAR,IDLE,27T

€ 73.00

11

920011042
ref: 11

BOLT,HEX HEAD,8X28

€ 4.00

12

920221019
ref: 12

WASHER,15.2X20X1

€ 3.50

13

92022159
ref: 13

WASHER-THRUST,25MM

€ 5.50

14

92022252
ref: 14

WASHER

€ 4.00

15

92033026
ref: 15

CIRCLIP

€ 6.00

16

92033029
ref: 16

CIRCLIP,18MM

€ 6.50

17

92081020
ref: 17

SPRING-KICK PEDAL

€ 2.50

18

92081097
ref: 18

SPRING

€ 7.50

19

92082003
ref: 19

SPRING-KICKSTARTER

€ 19.00

20

112G0618
ref: 20

BOLT-UPSET

€ 0.50

21

290Q0808
ref: 21

SCREW,8X8

€ 2.50

22

482K0100
ref: 22

CIRCLIP-TYPE-E,10MM

€ 0.50

23

600A0800
ref: 23

BALL-STEEL,1/4

€ 0.50

24

670B2015
ref: 24

O RING,15MM

€ 1.00
