CARBURETOR

KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

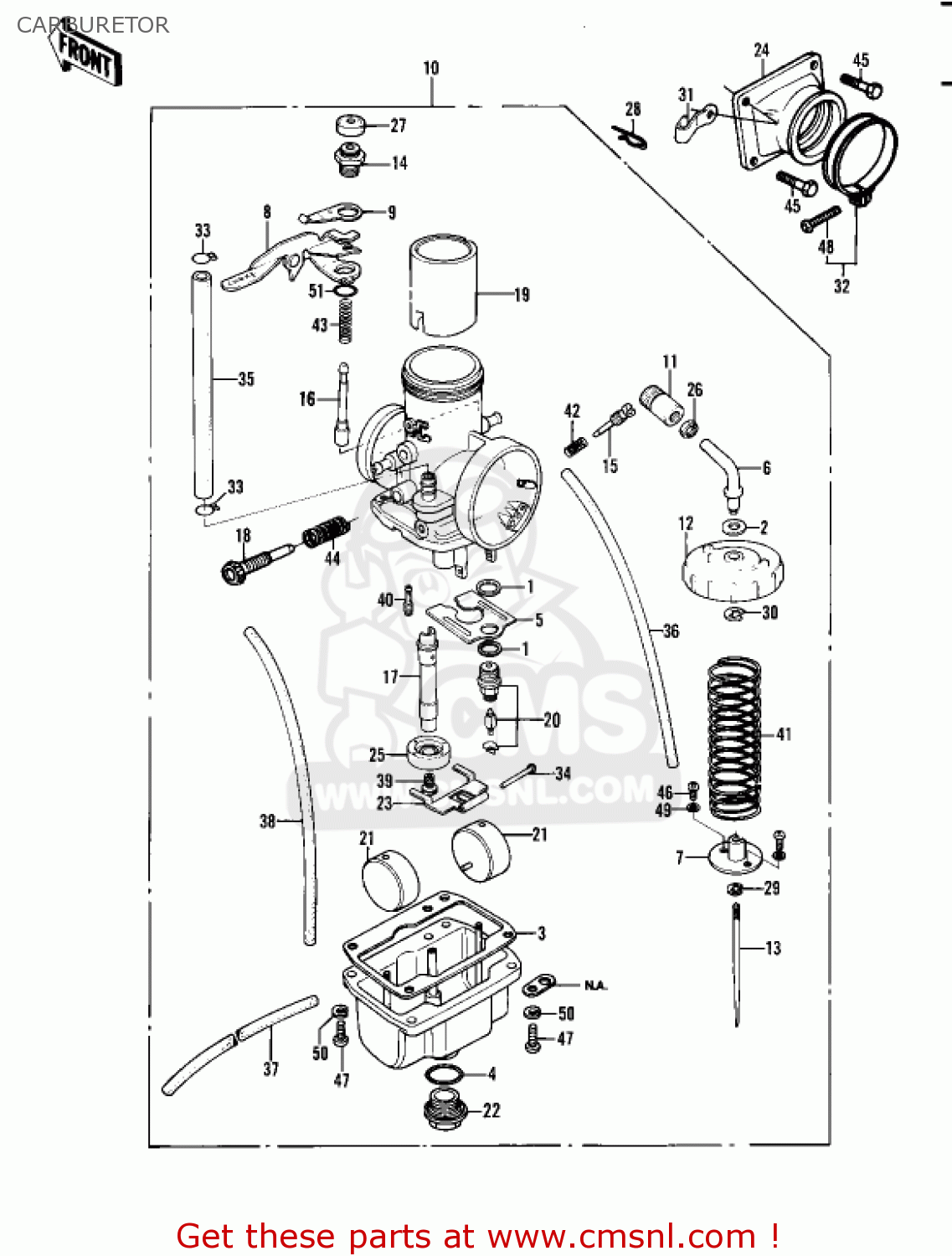

Carburetor diagram KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

CARBURETOR KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT
CARBURETOR KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT
CARBURETOR KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT
prices are in EUR
ref
part #
description
quantity
1
110091076
ref: 1
GASKET,FLOAT VALVE (NAS)
110091076
€ 2.00
2
110091191
ref: 2
GASKET,CABLE GUIDE (NAS)
110091191
€ 4.50
3
16019028
ref: 3
GASKET,FLOAT CHAMBER (NAS)
16019028
€ 11.50
4
16038009
ref: 4
GASKET,MAIN JET COVER
16038009
€ 5.50
5
16038019
ref: 5
PLATE,FLOAT CHAMBER
€ 12.00
6
130701014
ref: 6
GUIDE,CABLE
130701014
€ 24.50
7
131591010
ref: 7
CONNECTOR,THROTTLE
131591010
€ 9.00
8
131681048
ref: 8
LEVER STARTER PLUNGER
€ 15.00
9
131691052
ref: 9
SPRING PLATE STARTER
€ 8.50
10
160011490
ref: 10
CARBURETOR ASSY
€ 209.50
11
160021006
ref: 11
ADJUSTER-CABLE
160021006
€ 6.50
12
160041010
ref: 12
TOP,MIXING CHAMBER
160041010
€ 26.50
13
160091109
ref: 13
JET NEEDLE,6G03
€ 13.50
14
16012019
ref: 14
CAP-STARTER PLUNGER
16012019
€ 12.50
15
16014006
ref: 15
SCREW-PILOT AIR
16014006
€ 9.00
16
160161008
ref: 16
PLUNGER,ASSY STARTER
€ 17.00
17
160171066
ref: 17
NEEDLE JET,R-2
€ 14.00
18
160211034
ref: 18
SCREW-THROTTLE STOP
€ 12.50
19
160251066
ref: 19
VALVE,THROTTLE,CA3.0
€ 60.00
20
160301027
ref: 20
VALVE-FLOAT,3.3
€ 29.00
21
16031029
ref: 21
FLOAT
16031029
€ 40.00
22
160491004
ref: 22
COVER,MAIN JET
€ 9.50
23
16055009
ref: 23
ARM-FLOAT
16055009
€ 12.50
24
160651005
ref: 24
HOLDER-CARBURETOR
€ 70.00
25
160651045
ref: 25
HOLDER-CARBURETOR,NEE
160651045
€ 40.50
26
16003004
ref: 26
NUT-CABLE ADJUST LOCK
16003004
€ 4.50
27
16039015
ref: 27
CAP,STARTER PLUNGER
16039015
€ 4.50
28
92036018
ref: 28
CIRCLIP
92036018
€ 2.50
29
16008010
ref: 29
CLAMP,E-TYPE
16008010
€ 5.00
30
16008011
ref: 30
CLAMP,CABLE GUIDE
16008011
€ 4.50
31
92037016
ref: 31
CLAMP,WIRING HARNESS
92037016
€ 1.50
32
92037116
ref: 32
CLAMP
€ 10.50
33
920371184
ref: 33
CLAMP,HOSE
€ 1.00
34
16032008
ref: 34
PIN,FLOAT
16032008
€ 4.00
35
920591123
ref: 35
TUBE,7.5X12.5X225
€ 17.00
36
920591142
ref: 36
TUBE,3.5X6.5X410
€ 16.50
37
920591224
ref: 37
TUBE,3.5X6.5X350
€ 5.50
38
920591225
ref: 38
TUBE,3.5X6.5X450
€ 3.00
39
920631025
ref: 39
STD
JET-MAIN,#155R
920631025
€ 8.50
39
92063120
ref: 39
JET-MAIN,#150R
€ 8.50
39
92063121
ref: 39
MAIN JET,#152.5R
€ 7.00
39
920631026
ref: 39
JET-MAIN,#157.5R
€ 8.50
39
920631018
ref: 39
JET-MAIN,#160R
920631018
€ 8.50
40
92064023
ref: 40
JET-PILOT,#35
92064023
€ 13.00
41
16006028
ref: 41
SPRING,THROTTLE VALVE
16006028
€ 8.50
42
16022007
ref: 42
SPRING-THR STOP SCREW
16022007
€ 5.50
43
920811181
ref: 43
SPRING,STARTER PLUNG
920811181
€ 3.00
44
920811200
ref: 44
SPRING,THROTT STP SCR
920811200
€ 5.50
45
130G0620
ref: 45
BOLT,FLANGED,6X20
130G0620
€ 2.50
46
220B0308
ref: 46
SCREW-PAN-CROS
220B0308
€ 0.50
47
214B0516A
ref: 47
UNAVAILABLE IN PRICE BOOK
€ 0.50
48
220B0535
ref: 48
SCREW-PAN-CROS
220B0535
€ 2.00
49
461F0300
ref: 49
WASHER-SPRING,3MM
461F0300
€ 0.50
50
461F0500
ref: 50
WASHER-SPRING,5MM
461F0500
€ 0.50
51
670B1509
ref: 51
O RING,9MM
670B1509
€ 1.00
