CRANKSHAFT/PISTON

KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

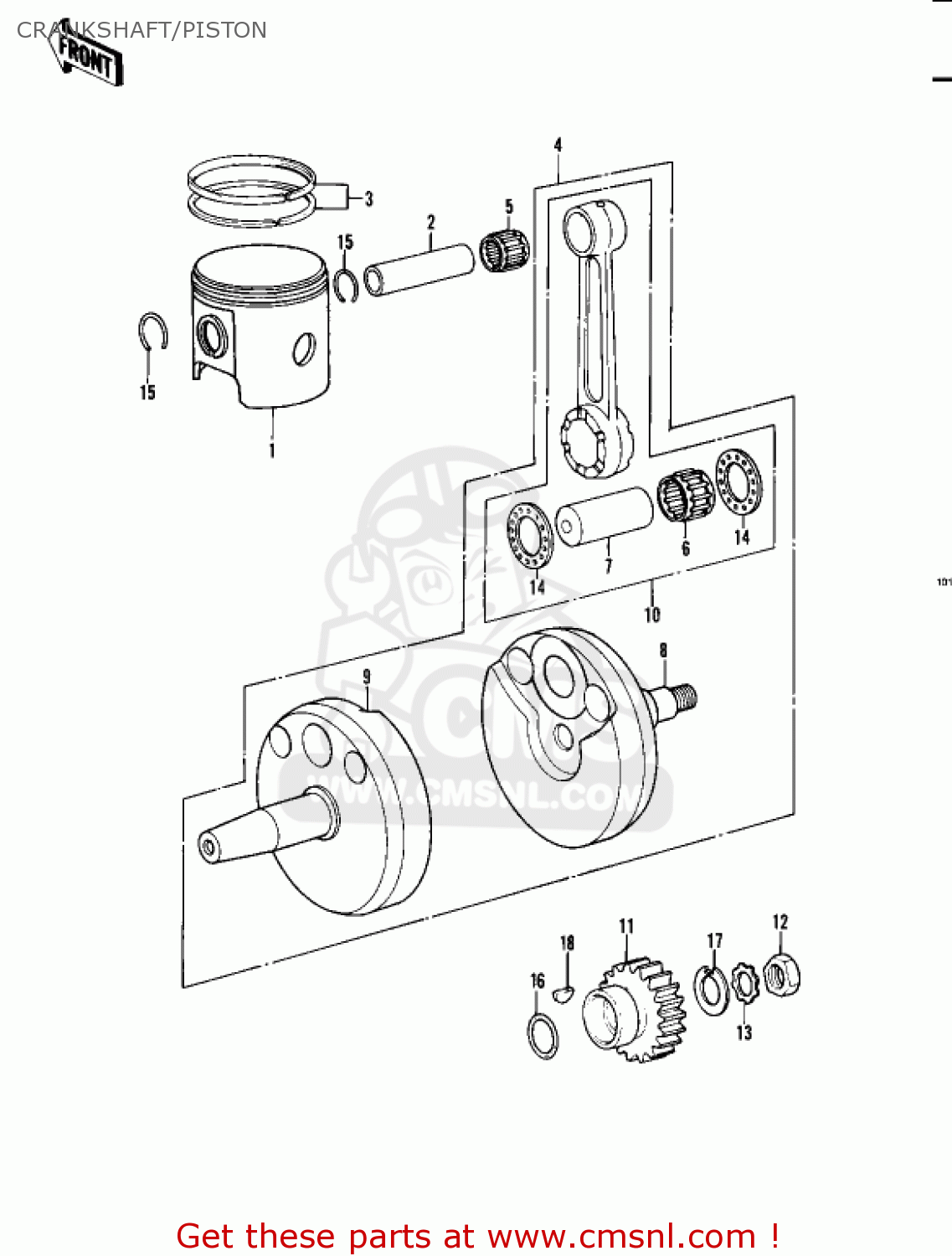

Crankshaft/piston diagram KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

130011075
ref: 1

PISTON-ENGINE

€ 165.50

13002031
ref: 2

PIN-PISTON

€ 17.50

130085030
ref: 3

RING-SET-PISTON,STD

€ 73.00

130311060
ref: 4

CRANKSHAFT ASSY

€ 418.00

130331055
ref: 5

BEARING-SMALL END,KTV

€ 26.00

130341012
ref: 6

BEARING,N.KT263322EGS

€ 62.00

130351003
ref: 7

PIN,CRANK,12X26X62

€ 29.50

130371113
ref: 8

CRANKSHAFT,RH

€ 151.50

130371116
ref: 9

CRANKSHAFT,L.H

€ 153.00

130445011
ref: 10

CONNECTING ROD ASSY,

€ 107.50

130971019
ref: 11

GEAR,PRIMARY,26T

€ 66.50

92015019
ref: 12

NUT,18MM

€ 4.00

92024015
ref: 13

WASHER,CLAW,18.2X32X0

€ 2.50

92026093
ref: 14

WASHER

€ 17.50

92036008
ref: 15

CIRCLIP-PISTON PIN

€ 0.50

920551047
ref: 16

RING-O,30MM

€ 5.50

464H1800
ref: 17

WASHER,LOCK,18M/M

€ 2.50

510A5100
ref: 18

KEY-WOODRUFF

€ 1.50
