CYLINDER HEAD/CYLINDER/REED VALV

KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

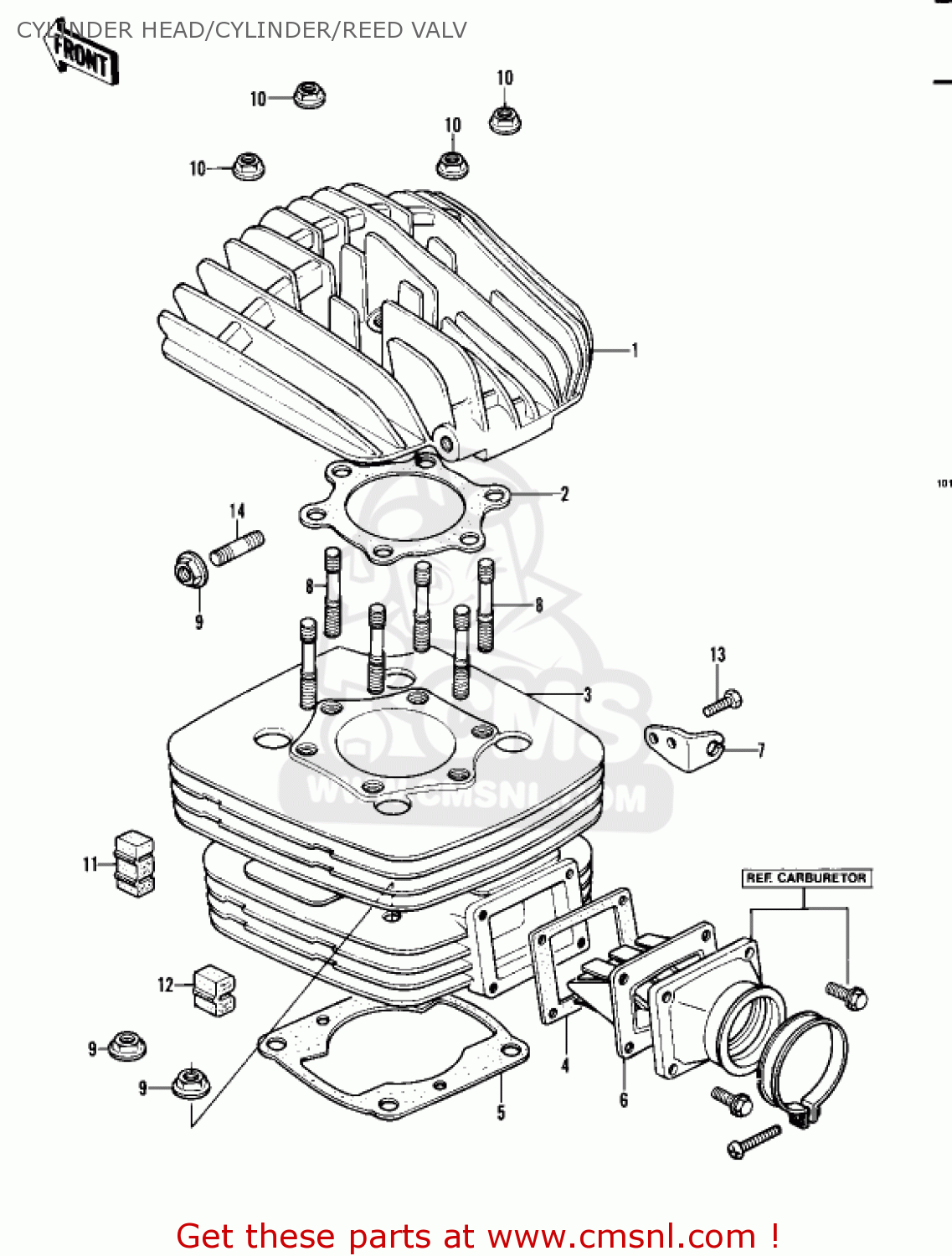

Cylinder head/cylinder/reed valv diagram KDX450-A1 KDX450 1982 UNITED KINGDOM USA CALIFORNIA EXPORT

prices are in EUR

ref

part #

description

quantity

110011030
ref: 1

HEAD,CYLINDER F.BLACK

€ 152.00

110041015
ref: 2

GASKET-HEAD,CYLINDER (NAS)

€ 14.00

110051149
ref: 3

CYLINDER

€ 591.50

110091018
ref: 4

GASKET,REED VALVE (MCA)

€ 3.50

110091130
ref: 5

GASKET,CYLINDER BASE (MCA)

€ 7.00

120211007
ref: 6

VALVE-ASSY-REED

€ 101.50

130911119
ref: 7

HOLDER

€ 2.50

920041022
ref: 8

STUD,CYLINDER

€ 4.50

920151415
ref: 9

NUT,10MM

€ 3.00

920151014
ref: 10

NUT,8MM

€ 0.50

920751160
ref: 11

DAMPER RUBBER CYL

€ 3.50

920751161
ref: 12

DAMPER RUBBER CYL

€ 4.00

112G0618
ref: 13

BOLT-UPSET

€ 0.50

175G1018
ref: 14

STUD,10X18

€ 2.50
