METER
KDX250-E2 1992 EUROPE FR GR AS

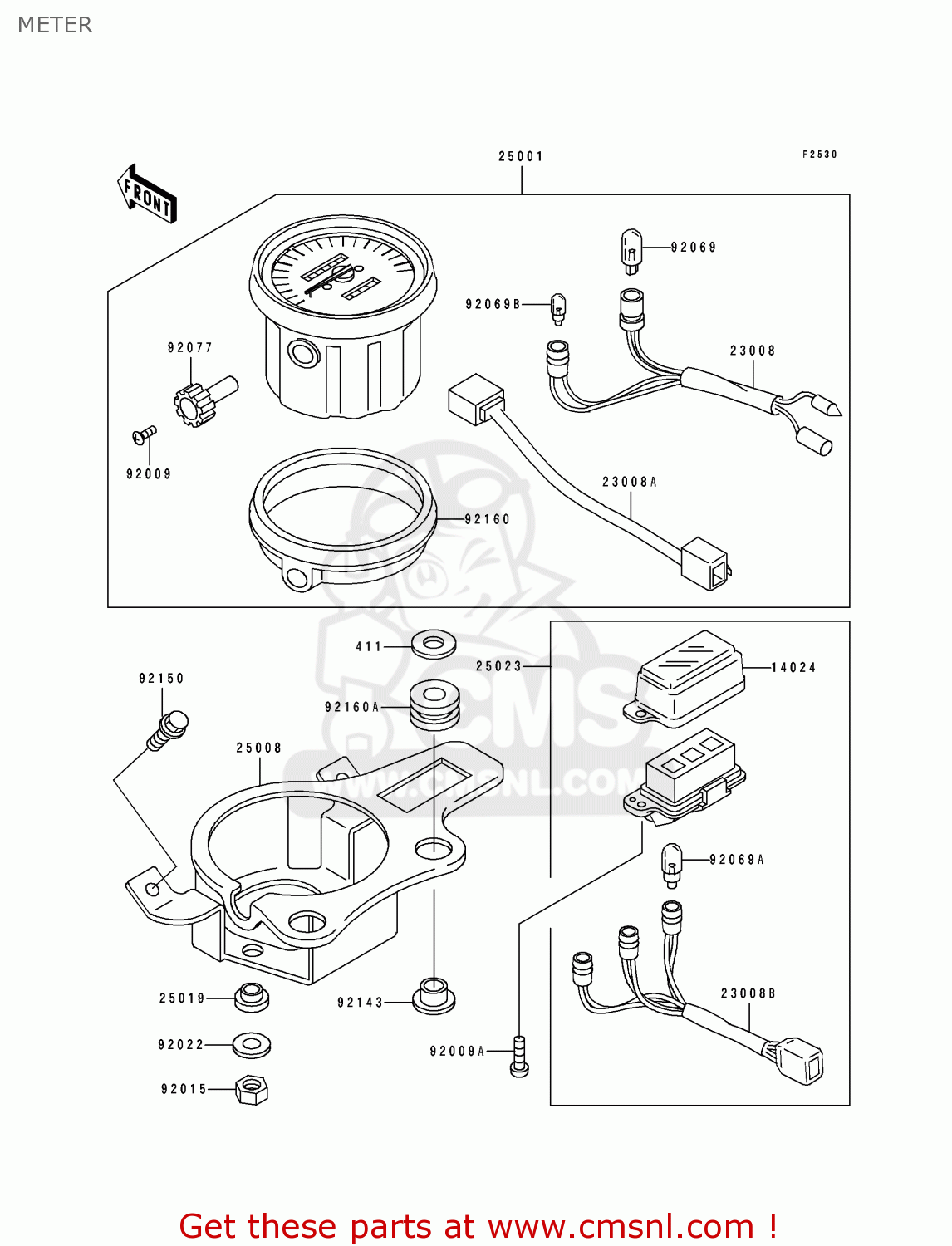

Meter diagram KDX250-E2 1992 EUROPE FR GR AS
METER KDX250-E2 1992 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
14024
140241505
ref: 14024
COVER,PILOT BOX,UPP
€ 7.50
23008
230081468
ref: 23008
SOCKET-ASSY,SPEEDOMET
€ 13.50
23008A
230081469
ref: 23008A
SOCKET-ASSY,SPEEDOMET
€ 17.50
23008B
230081477
ref: 23008B
SOCKET-ASSY,PILOT BOX
€ 119.00
25001
250011845
ref: 25001
METER-ASSY,KPH
€ 612.00
25008
250081161
ref: 25008
BRACKET-METER
€ 68.50
25019
25019023
ref: 25019
DAMPER RUBBER,METER
€ 2.50
25023
250231192
ref: 25023
COVER-METER CASE,PILO
€ 60.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
€ 2.00
92009A
920091628
ref: 92009A
SCREW,TAPPING,4X12
€ 2.00
92015
920151221
ref: 92015
NUT,LOCK,5MM
€ 4.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691059
ref: 92069
BULB,12V 1.7W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92069B
920691070
ref: 92069B
BULB,12V 1.7W
€ 3.00
92077
920771073
ref: 92077
KNOB,METER
€ 4.00
92143
921431422
ref: 92143
COLLAR
€ 7.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92160
921601064
ref: 92160
DAMPER,SPEEDOMETER
€ 18.50
92160A
921601230
ref: 92160A
DAMPER
€ 3.00
