FRAME

KDX250-E2 1992 EUROPE FR GR AS

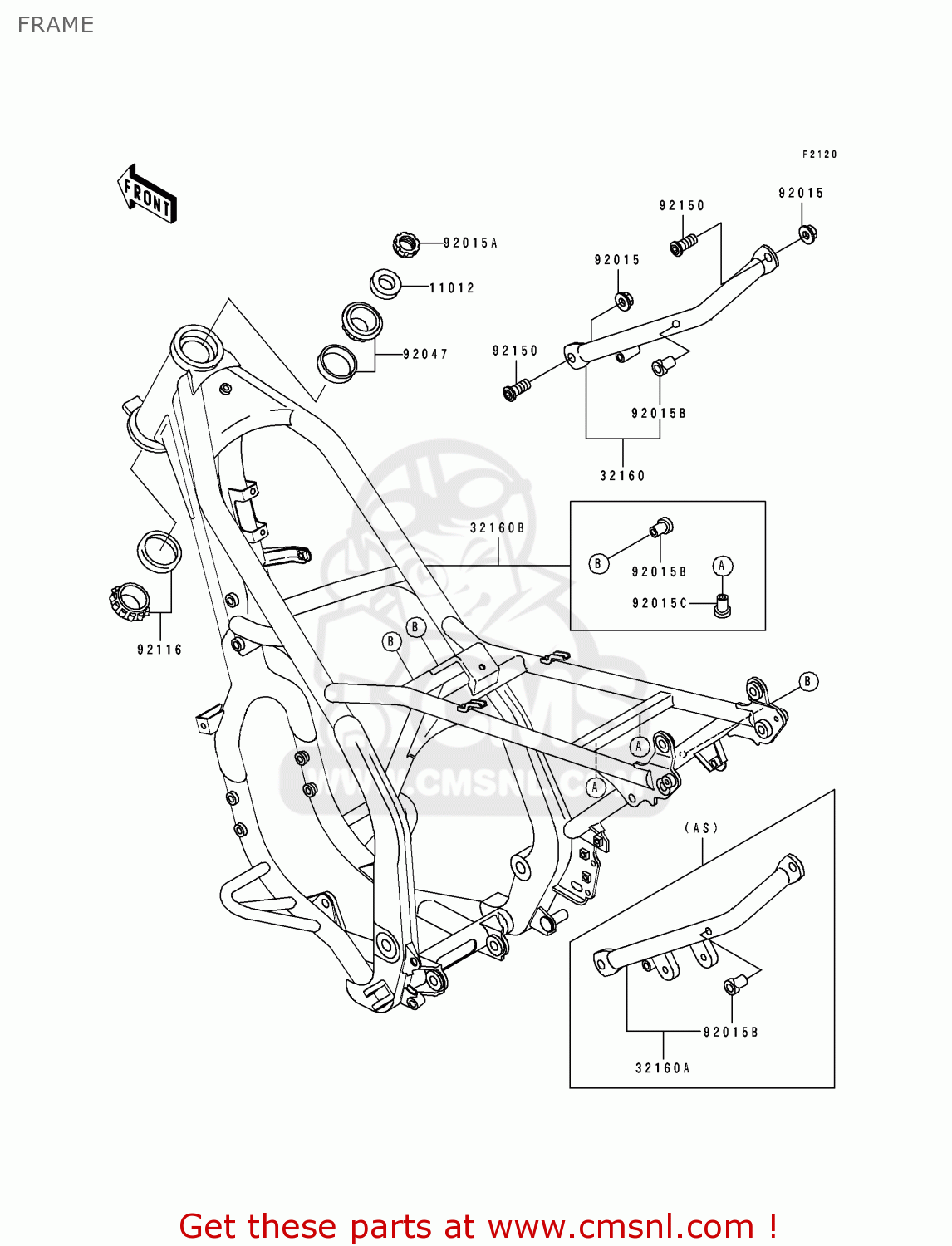

Frame diagram KDX250-E2 1992 EUROPE FR GR AS

prices are in EUR

ref

part #

description

quantity

11012

110121762
ref: 11012

CAP,STEERING STEM

€ 4.00

32160

321601163CC
ref: 32160
EUFRGR

FRAME-COMP,SUB,L.GREE

€ 88.50

32160A

321601189CC
ref: 32160A
AS

FRAME-COMP,SUB,L.GREEN

€ 0.00

32160B

321601191CC
ref: 32160B

FRAME-COMP,MAIN,L.GRE

€ 912.50

92015

920151502
ref: 92015

NUT,FLANGED,10MM

€ 7.00

92015A

920151546
ref: 92015A

NUT,25MM,T=12

€ 14.50

92015B

920151759
ref: 92015B

NUT,POP,6MM

€ 3.00

92015C

920151792
ref: 92015C

NUT,POP,6MM,L=16.5

€ 3.00

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92116

921161069
ref: 92116

BEARING-ROLLER

€ 69.50

92150

921501221
ref: 92150

BOLT,SOCKET,10X23

€ 3.50
