HEAD LAMP
KDX250-E2 1992 EUROPE FR GR AS

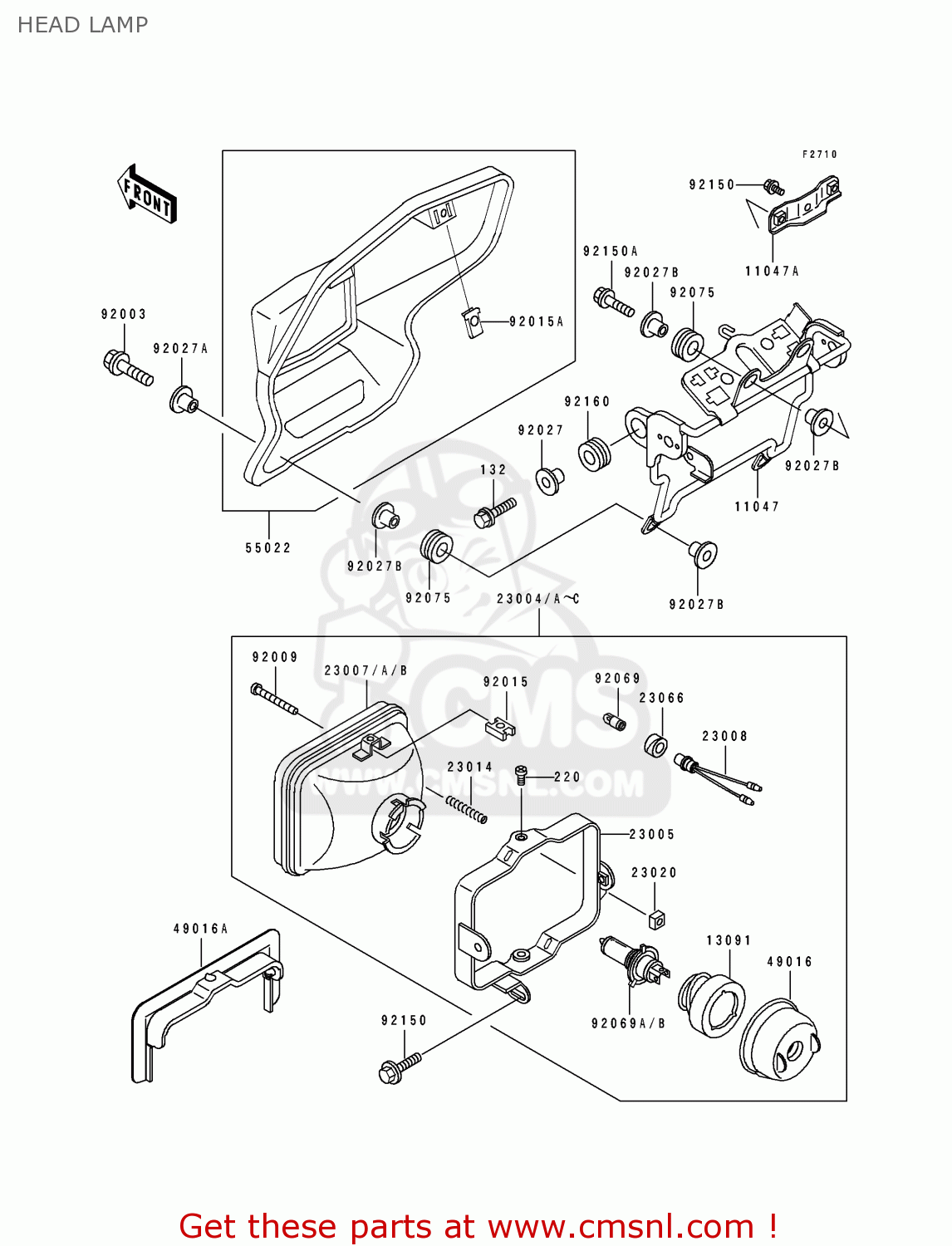

Head lamp diagram KDX250-E2 1992 EUROPE FR GR AS
HEAD LAMP KDX250-E2 1992 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
11047
110471294
ref: 11047
BRACKET,HEAD LAMP
€ 80.50
11047A
110471464
ref: 11047A
BRACKET
€ 8.00
13091
130911558
ref: 13091
AS
HOLDER,SOCKET
€ 9.00
23004A
230041323
ref: 23004A
EUGR
LAMP-HEAD
€ 326.00
23004B
230041324
ref: 23004B
FR
LAMP-HEAD
€ 347.50
23004C
230041340
ref: 23004C
AS
HEADLAMP
€ 160.00
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
€ 27.50
23007A
230071270
ref: 23007A
EUFRGR
LENS-COMP,HEAD LAMP
€ 96.50
23007B
230071280
ref: 23007B
AS
LENS-COMP,HEAD LAMP
€ 126.00
23008
23008038
ref: 23008
EUFRGR
SOCKET-ASSY,PARKING L
€ 7.50
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
€ 2.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23066
23066008
ref: 23066
EUFRGR
DAMPER,PARKING LAMP
€ 3.00
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
49016A
490161101
ref: 49016A
COVER-SEAL,HEAD LAMP
€ 21.00
55022
5502250136W
ref: 55022
COVER-HEAD LAMP,L.GRE
€ 79.50
92003
92003202
ref: 92003
BOLT
€ 4.00
92009
920091065
ref: 92009
SCREW,4MM
€ 3.00
92015
920151354
ref: 92015
NUT,5MM
€ 3.50
92015A
920151826
ref: 92015A
NUT,6MM
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92027A
920271168
ref: 92027A
COLLAR,L=4.6
€ 3.50
92027B
920271848
ref: 92027B
COLLAR,L=7.4
€ 2.50
92069
92069071
ref: 92069
EUFRGR
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
ASEUGR
BULB,12V-60155W
€ 15.00
92069B
920691004
ref: 92069B
FR
BULB,12V 60/55W,H4,YE
€ 15.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
132
132G0825
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92150A
921501507
ref: 92150A
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
