FRONT FORK
KDX250-E2 1992 EUROPE FR GR AS

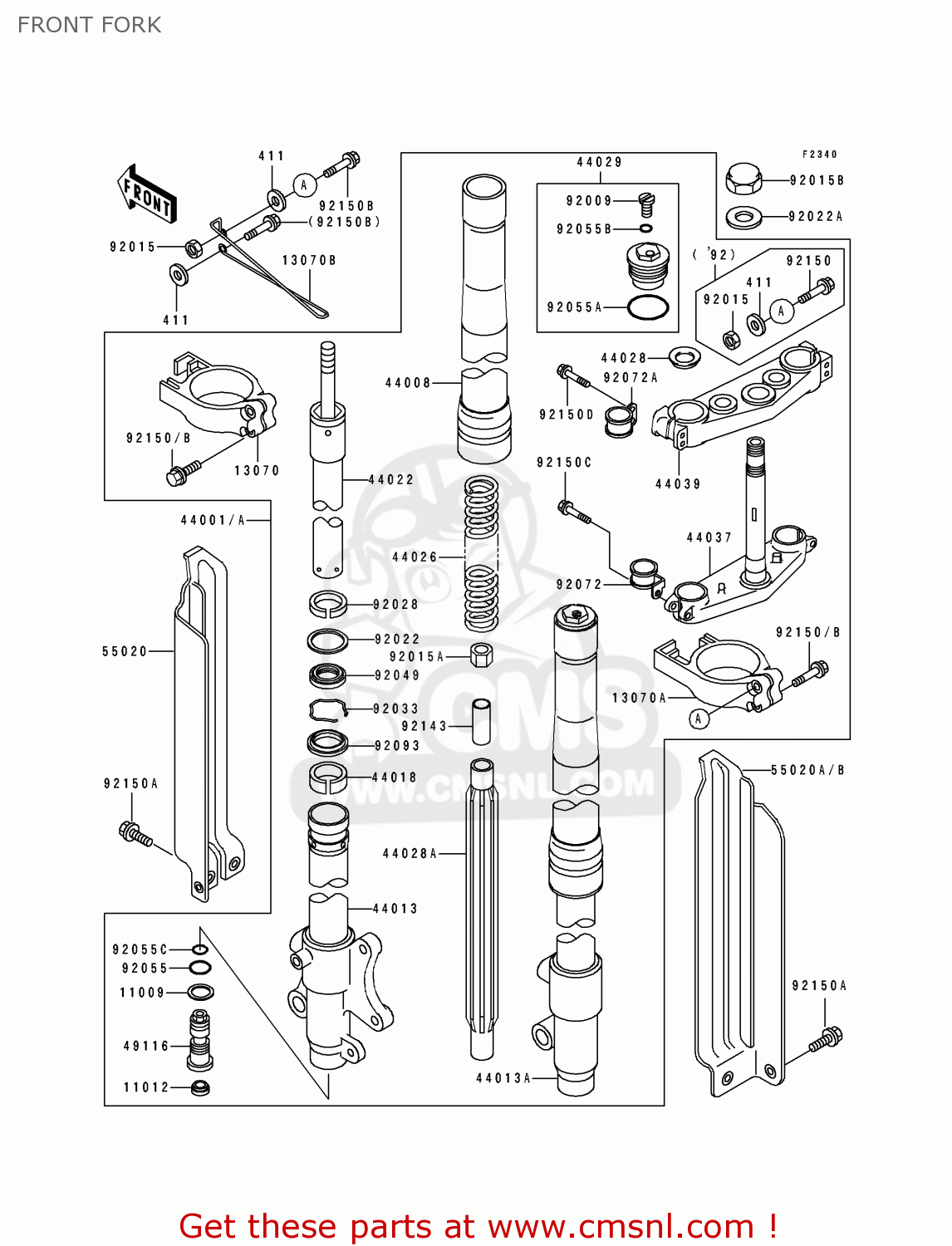

Front fork diagram KDX250-E2 1992 EUROPE FR GR AS
FRONT FORK KDX250-E2 1992 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
13070
130701222
ref: 13070
GUIDE,FORK,LH
€ 18.00
13070A
130701223
ref: 13070A
GUIDE,FORK,RH
€ 18.50
44001A
440011839
ref: 44001A
FORK-FRONT
€ 2,383.00
44008
440081015
ref: 44008
PIPE-FORK OUTER
€ 455.00
44013
440131350
ref: 44013
PIPE-FORK INNER,LH
€ 270.00
44013A
440131351
ref: 44013A
PIPE-FORK INNER,RH
€ 270.00
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221268
ref: 44022
CYLINDER-FORK
€ 223.00
44026
440261496
ref: 44026
SPRING-FRONT FORK
€ 63.00
44028
440281081
ref: 44028
GUIDE-FORK SPRING
€ 8.50
44028A
440281084
ref: 44028A
GUIDE-FORK SPRING
€ 10.00
44029
440291149
ref: 44029
SEAT-FORK SPRING
€ 87.00
44037
440371291
ref: 44037
HOLDER-FORK UNDER
€ 526.00
44039
440391218
ref: 44039
HOLDER-FORK UPPER
€ 117.00
49116
491161096
ref: 49116
VALVE-ASSY,FORK
€ 131.50
55020
550201363
ref: 55020
GUARD,FORK,LH
€ 33.00
55020B
550201423
ref: 55020B
GUARD,FORK,RH
€ 27.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151752
ref: 92015
NUT,LOCK,FLANGED,5MM
€ 2.50
92015A
920151827
ref: 92015A
NUT
€ 16.00
92015B
920151867
ref: 92015B
NUT,STEERING STEM,22M
€ 12.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491373
ref: 92049
SEAL-OIL
€ 19.00
92055
920551156
ref: 92055
RING-O,REARSHOCK
€ 1.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92072
920721267
ref: 92072
BAND
€ 14.50
92072A
920721283
ref: 92072A
BAND
€ 18.50
92093
920931315
ref: 92093
SEAL,FORK OUTER TUBE
€ 12.50
92143
921431516
ref: 92143
COLLAR,FORK
€ 7.00
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
411
411B0500
ref: 411
WASHER-PLAIN,5MM
€ 0.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150C
921501446
ref: 92150C
BOLT,10X40
€ 9.00
92150D
921501516
ref: 92150D
BOLT, FLANGED 8X40
€ 9.50
