GEAR CHANGE MECHANISM
KDX250-D3 1993 AL

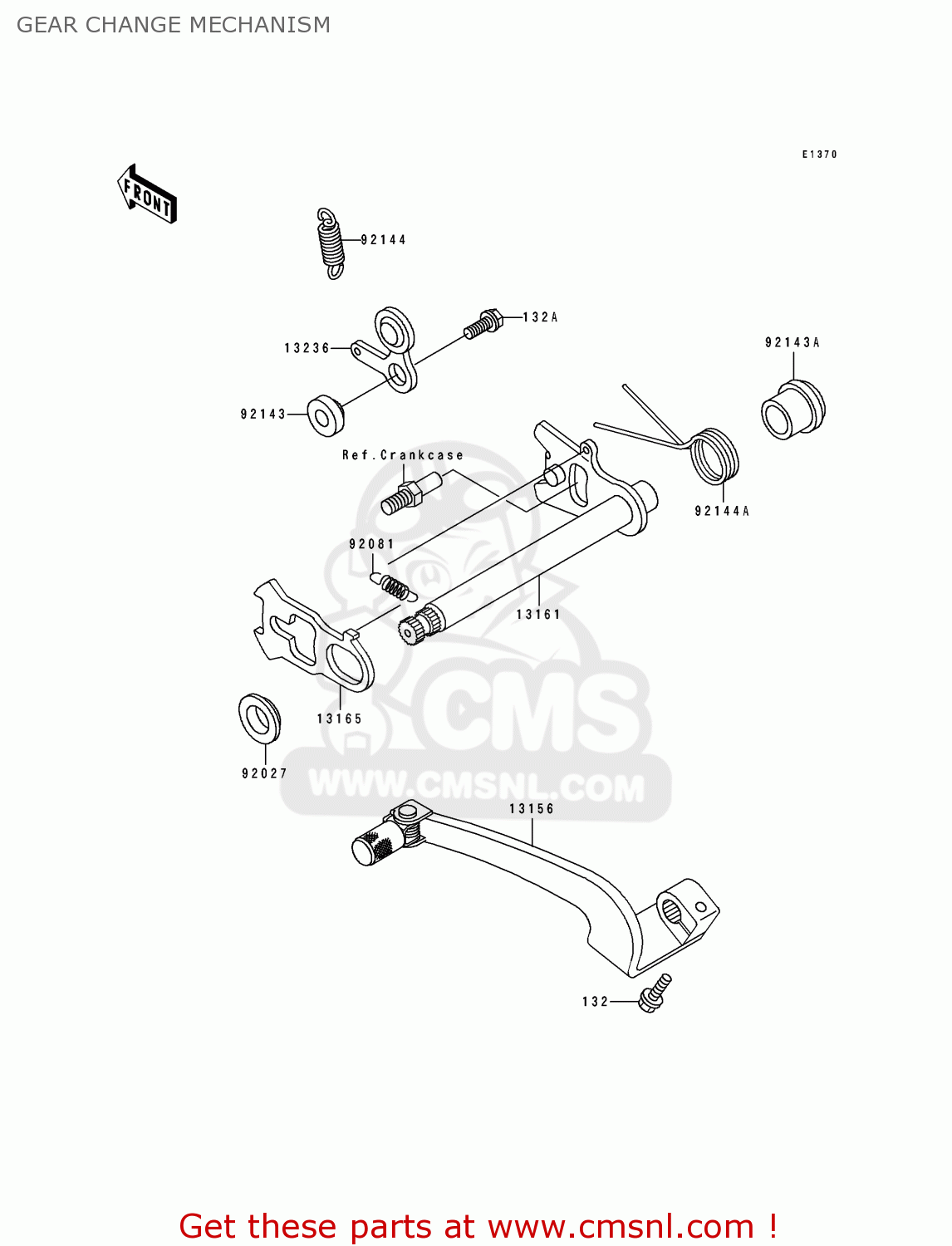

Gear change mechanism diagram KDX250-D3 1993 AL
GEAR CHANGE MECHANISM KDX250-D3 1993 AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132Y0616
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
13156
131561339
ref: 13156
LEVER-CHANGE,PEDAL
€ 67.50
13161
131611180
ref: 13161
LEVER-COMP-CHANGE SHA
€ 42.00
13165
131651119
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361189
ref: 13236
LEVER-COMP,POSITION
€ 7.50
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92143
921431055
ref: 92143
COLLAR
€ 4.50
92143A
921431498
ref: 92143A
COLLAR,RETURN SPRING
€ 7.00
92144
921441382
ref: 92144
SPRING
€ 6.50
92144A
921441485
ref: 92144A
SPRING,CHANGE SHAFT R
€ 4.50
