FRONT FORK(KDX250-D2/D3/D4/D5)
KDX250-D3 1993 AL

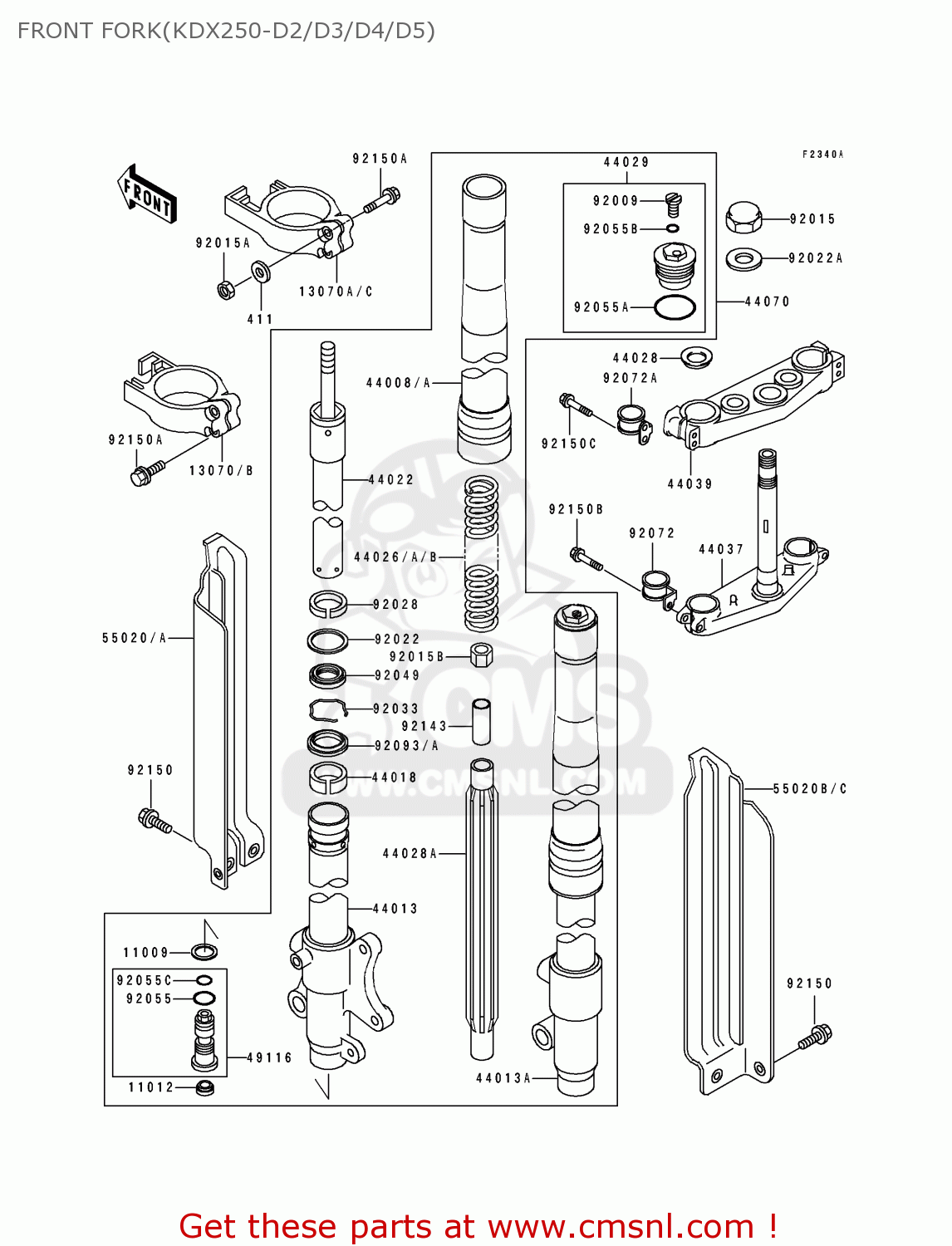

Front fork(kdx250-d2/d3/d4/d5) diagram KDX250-D3 1993 AL
FRONT FORK(KDX250-D2/D3/D4/D5) KDX250-D3 1993 AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
13070B
130701263
ref: 13070B
GUIDE,FORK,LH
€ 22.00
13070C
130701264
ref: 13070C
GUIDE,FORK,RH
€ 22.00
44008
440081015KW
ref: 44008
PIPE-FORK OUTER,BLUE
€ 641.50
44013
440131350
ref: 44013
PIPE-FORK INNER,LH
€ 270.00
44013A
440131351
ref: 44013A
PIPE-FORK INNER,RH
€ 270.00
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221268
ref: 44022
CYLINDER-FORK
€ 223.00
44026
440261496
ref: 44026
SPRING-FRONT FORK
€ 63.00
44026A
440261502
ref: 44026A
SPRING-FRONT FORK,K=0
€ 63.00
44026B
440261503
ref: 44026B
SPRING-FRONT FORK,K=0
€ 56.50
44028
440281081
ref: 44028
GUIDE-FORK SPRING
€ 8.50
44028A
440281084
ref: 44028A
GUIDE-FORK SPRING
€ 10.00
44029
440291149
ref: 44029
SEAT-FORK SPRING
€ 87.00
44037
440371290
ref: 44037
HOLDER-FORK UNDER
€ 589.50
44039
440391218
ref: 44039
HOLDER-FORK UPPER
€ 117.00
44070
440705133KW
ref: 44070
DAMPER-ASSY
€ 1,385.00
49116
491161096
ref: 49116
VALVE-ASSY,FORK
€ 131.50
55020A
550201363RZ
ref: 55020A
GUARD,FORK,LH,WHITE
€ 33.00
55020C
550201423RZ
ref: 55020C
GUARD,FORK,RH
€ 27.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92015B
920151827
ref: 92015B
NUT
€ 16.00
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491373
ref: 92049
SEAL-OIL
€ 19.00
92055
920551156
ref: 92055
RING-O,REARSHOCK
€ 1.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92072
920721267
ref: 92072
BAND
€ 14.50
92072A
920721268
ref: 92072A
BAND
€ 14.50
92093A
920931342
ref: 92093A
SEAL,FORK OUTER TUBE
€ 12.50
92143
921431516
ref: 92143
COLLAR,FORK
€ 7.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92150A
921501434
ref: 92150A
BOLT,5X40
€ 3.00
92150B
921501446
ref: 92150B
BOLT,10X40
€ 9.00
92150C
921501516
ref: 92150C
BOLT, FLANGED 8X40
€ 9.50
