FRAME
KDX250-D3 1993 AL

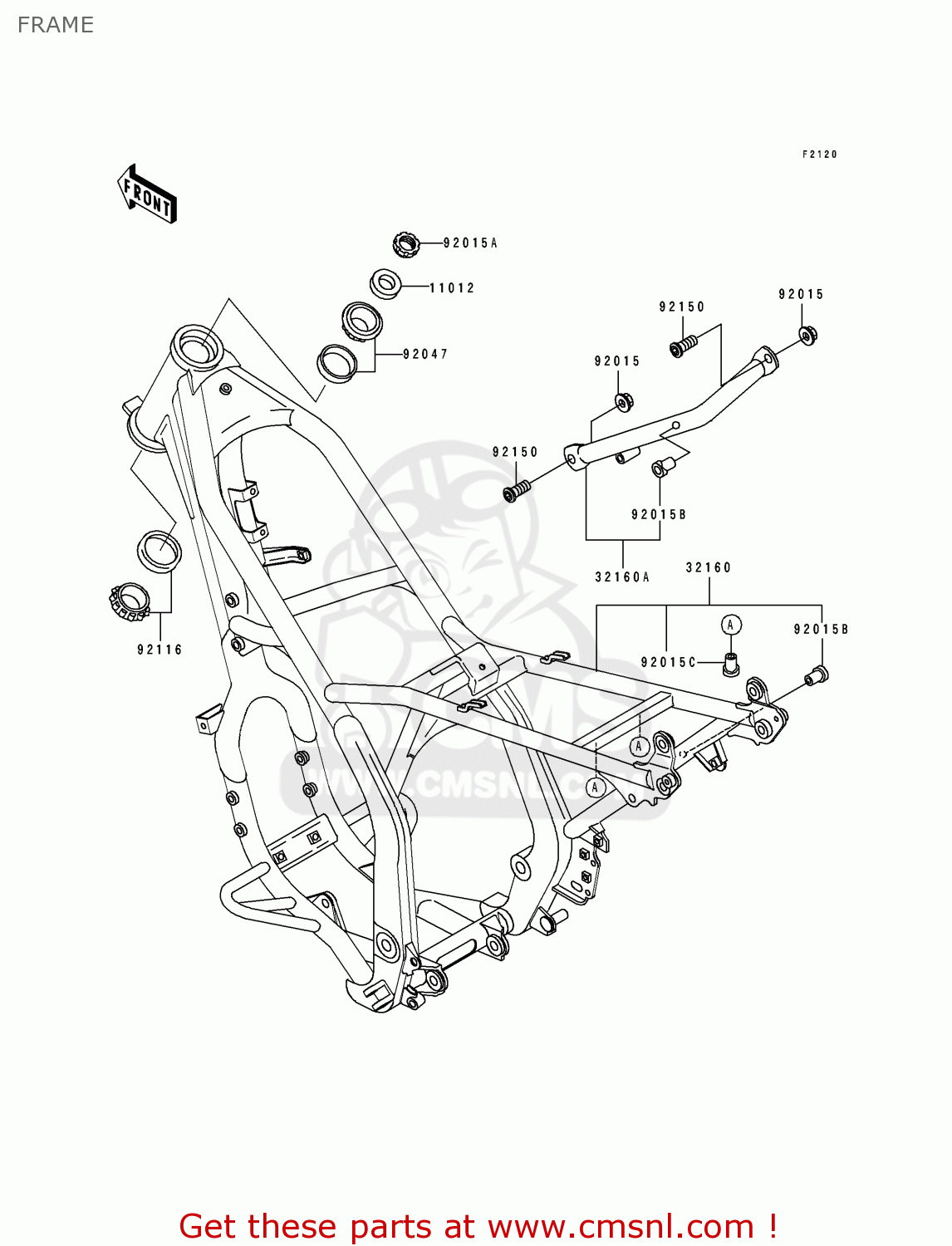

Frame diagram KDX250-D3 1993 AL
FRAME KDX250-D3 1993 AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121762
ref: 11012
CAP,STEERING STEM
€ 4.00
32160
321601161CC
ref: 32160
FRAME-COMP,MAIN,L.GRE
€ 906.50
32160A
321601163CC
ref: 32160A
FRAME-COMP,SUB,L.GREE
€ 88.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
€ 7.00
92015A
920151546
ref: 92015A
NUT,25MM,T=12
€ 14.50
92015B
920151759
ref: 92015B
NUT,POP,6MM
€ 3.00
92015C
920151792
ref: 92015C
NUT,POP,6MM,L=16.5
€ 3.00
92047
92047017
ref: 92047
CONE,STRNG,STEM
€ 49.50
92116
921161069
ref: 92116
BEARING-ROLLER
€ 69.50
92150
921501221
ref: 92150
BOLT,SOCKET,10X23
€ 3.50
