BRAKE PEDAL
KDX250-D3 1993 AL

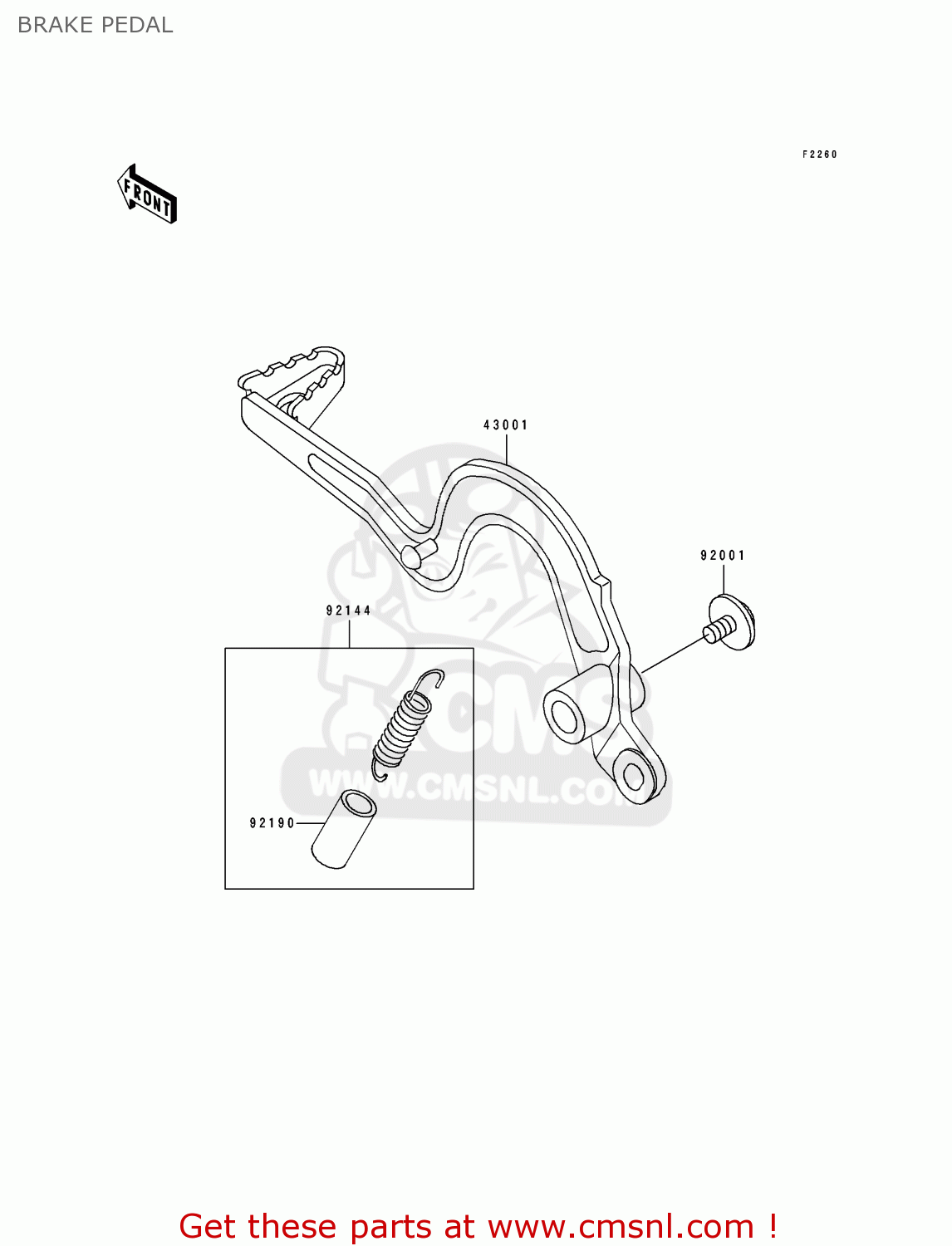

Brake pedal diagram KDX250-D3 1993 AL
BRAKE PEDAL KDX250-D3 1993 AL
×
prices are in EUR
ref
part #
description
quantity
43001
430011306
ref: 43001
LEVER-BRAKE,PEDAL
€ 49.50
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92144
921441587
ref: 92144
SPRING,BRAKE PEDAL RE
€ 3.50
92190
921901217
ref: 92190
TUBE,12X15X25
€ 2.00
