Genuine KDX Kawasaki Parts delivered quickly!
home
MUFFLER
KDX250-C1 1983 AUSTRALIA

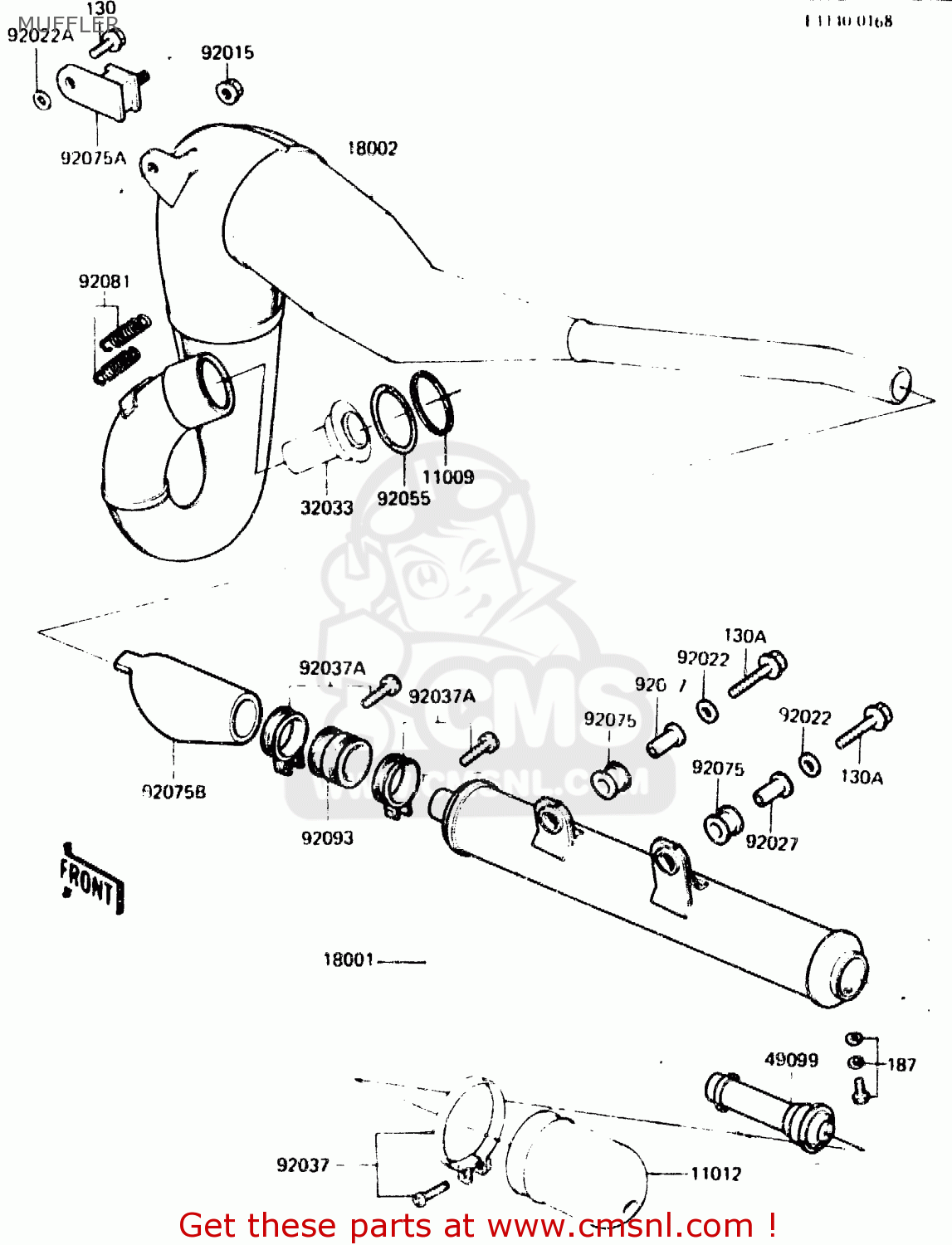

Muffler diagram KDX250-C1 1983 AUSTRALIA
MUFFLER KDX250-C1 1983 AUSTRALIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091253
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 7.50
11012
110121307
ref: 11012
CAP,MUFFLER,CHOKE
€ 20.50
18001
180011363
ref: 18001
MUFFLER
€ 214.00
18002
180021200
ref: 18002
BODY-COMP-MUFFLER
€ 258.00
32033
320331088
ref: 32033
PIPE-A,EXHAUST CHOKE
€ 11.50
49099
490991126
ref: 49099
BAFFLE-PIPE MUFFLER
€ 65.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022298
ref: 92022
WASHER,8.5X35X2.3
€ 9.50
92022A
92022312
ref: 92022A
WASHER,PLAIN
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037068
ref: 92037
CLAMP
€ 7.50
92037A
92037177
ref: 92037A
CLAMP
€ 7.50
92055
920551057
ref: 92055
RING-O,55MM,MUFFLER
€ 9.50
92075
920751196
ref: 92075
DAMPER,MUFFLER
€ 5.50
92075A
920751343
ref: 92075A
DAMPER,MUFFLER
€ 21.00
92075B
920751488
ref: 92075B
DAMPER,MUFFLER
€ 48.50
92081
920811452
ref: 92081
SPRING,MUFFLER
€ 5.50
92093
920931014
ref: 92093
SEAL,MUFFLER
€ 19.50
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
€ 1.00
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
