FENDER

KDX250-C1 1983 AUSTRALIA

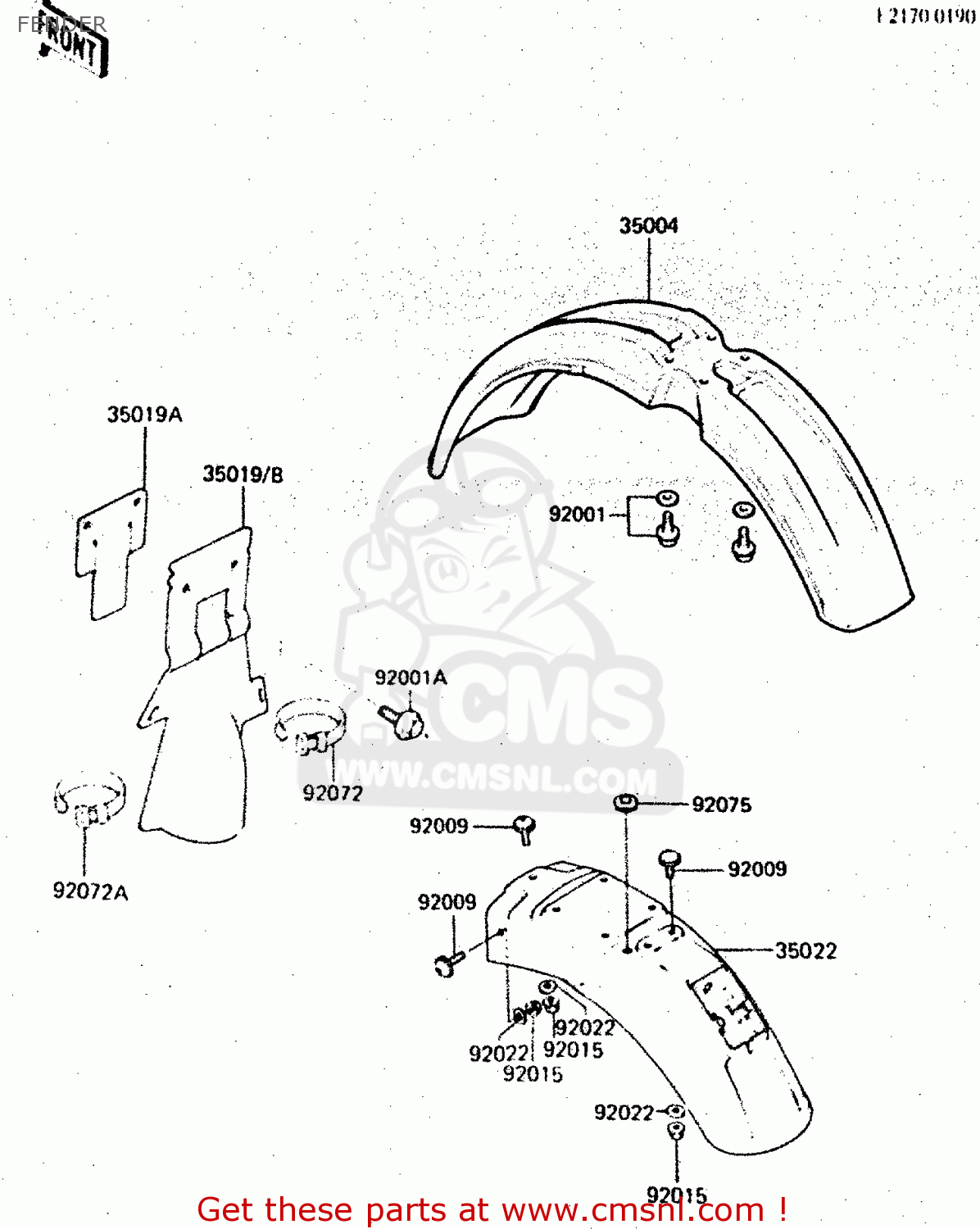

Fender diagram KDX250-C1 1983 AUSTRALIA

prices are in EUR

ref

part #

description

quantity

35004

3500410766W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35019

350191051
ref: 35019

FLAP,RR

€ 16.00

35019A

350191056
ref: 35019A

FLAP,FENDER,RR

€ 9.50

35022

3502211136W
ref: 35022

FENDER-COMP-REAR,L.GR

€ 91.00

92001

920011773
ref: 92001

BOLT,6X20

€ 2.50

92001A

920011926
ref: 92001A

BOLT,6X14

€ 2.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92075

92075051
ref: 92075

DAMPER RUBBER

€ 2.50
