FUEL TANK

KDX250-C1 1983 AUSTRALIA

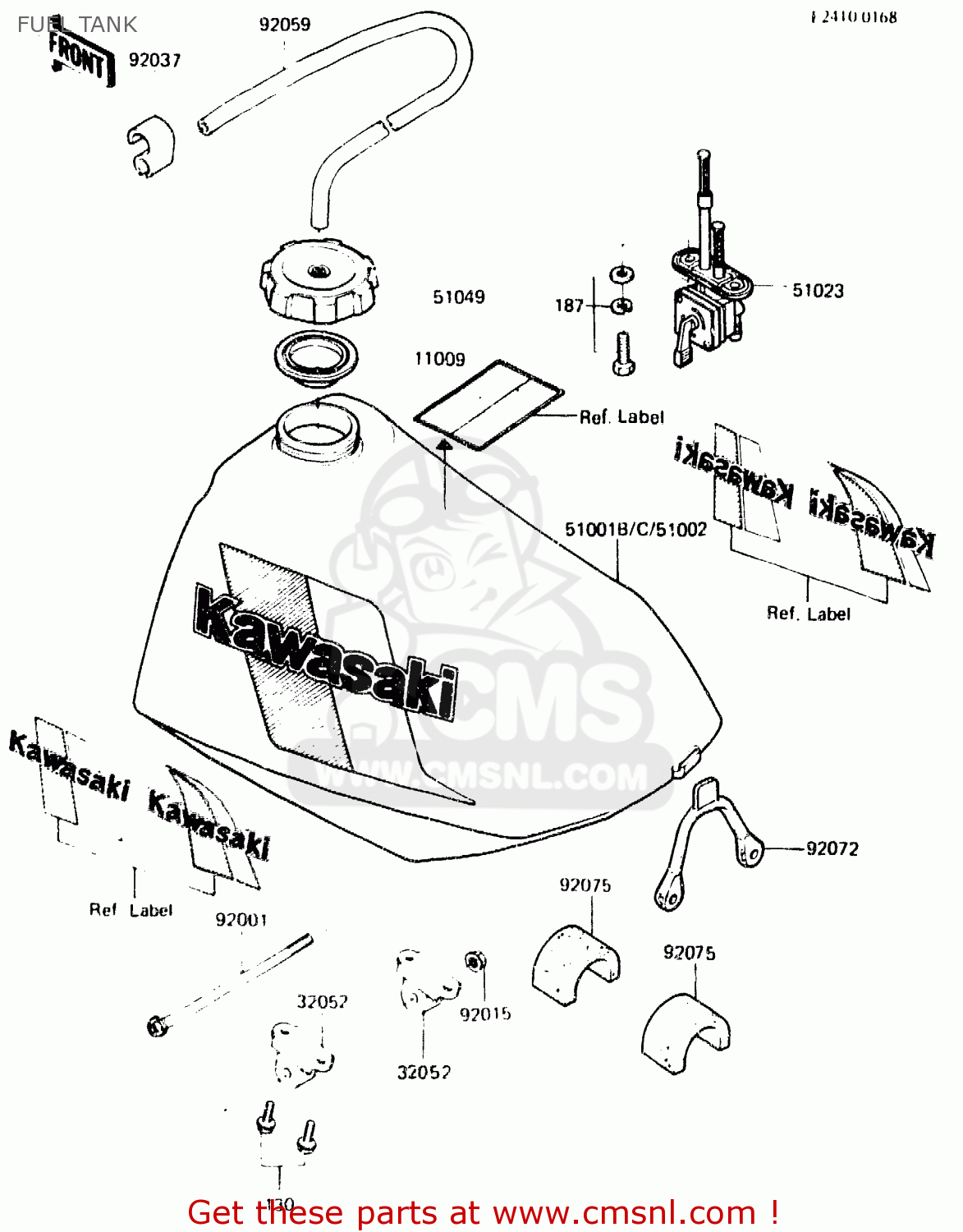

Fuel tank diagram KDX250-C1 1983 AUSTRALIA

prices are in EUR

ref

part #

description

quantity

11009

110091276
ref: 11009

GASKET,FUEL TANK CAP (NAS)

€ 7.00

32052

320521104
ref: 32052

BRACKET-TANK

€ 12.50

51001B

5100152926W
ref: 51001B

TANK-COMP-FUEL,L.GREE

€ 398.50

51023

510231045
ref: 51023

TAP-ASSY,FUEL

€ 49.00

51049

510491007
ref: 51049

CAP-TANK,FUEL

€ 15.50

92001

920011501
ref: 92001

BOLT

€ 5.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92037

920371377
ref: 92037

CLAMP,TUBE

€ 3.50

92059

920591258
ref: 92059

TUBE,5X9X250

€ 8.50

92072

92072042
ref: 92072

BAND,FUEL TANK

€ 9.00

92075

920751382
ref: 92075

DAMPER,FUEL TANK

€ 20.50

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

187

187B0616
ref: 187

BOLT-UPSET-WSP

€ 0.50
