CRANKSHAFT/PISTON
KDX250-C1 1983 AUSTRALIA

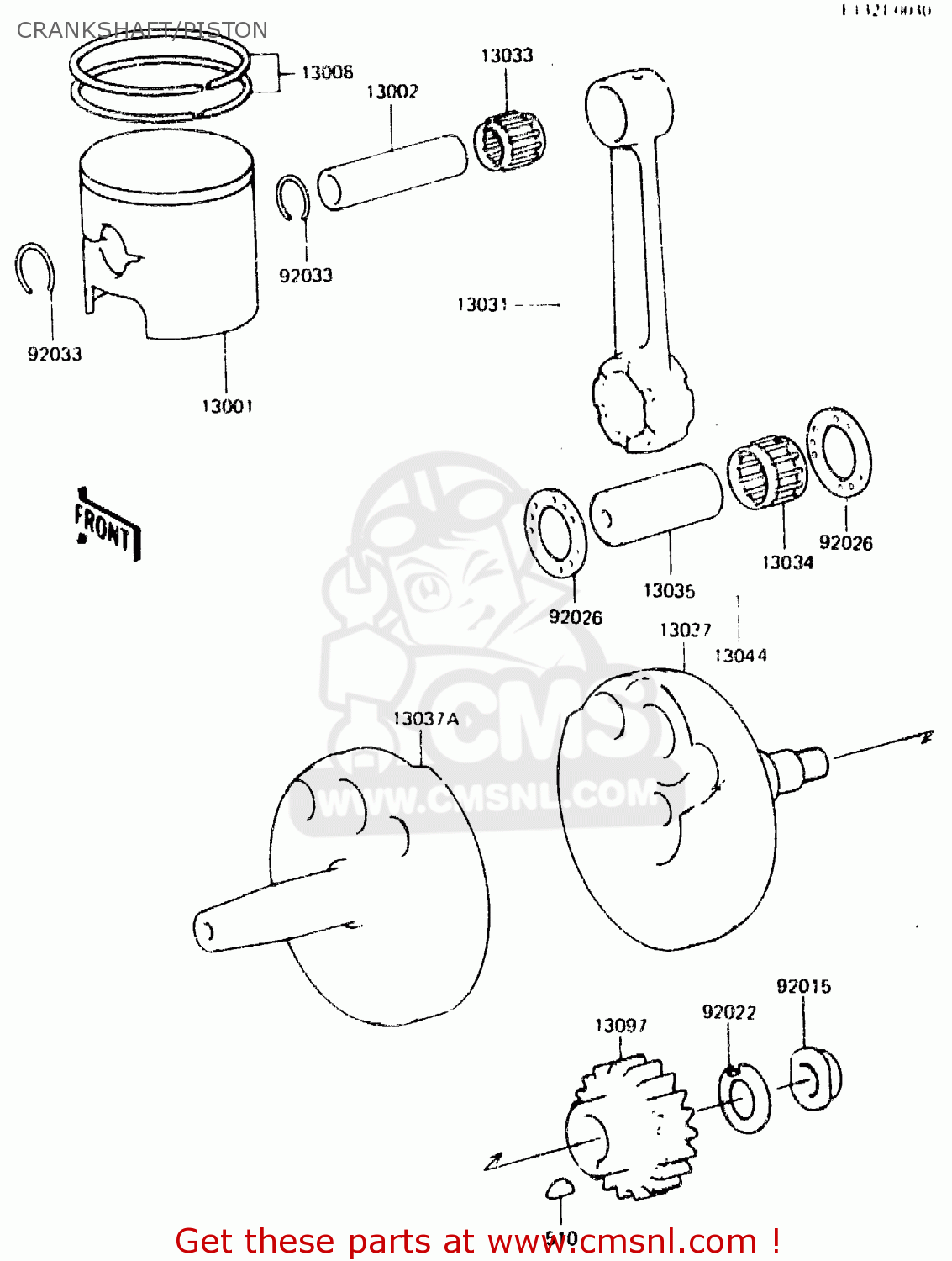

Crankshaft/piston diagram KDX250-C1 1983 AUSTRALIA
CRANKSHAFT/PISTON KDX250-C1 1983 AUSTRALIA
×
prices are in EUR
ref
part #
description
quantity
13001
130011039
ref: 13001
PISTON-ENGINE
€ 69.50
13002
13002017
ref: 13002
PIN-PISTON
€ 17.50
13008
130085026
ref: 13008
RING-SET-PISTON
€ 50.50
13031
130311049
ref: 13031
CRANKSHAFT ASSY
€ 338.00
13033
13033036
ref: 13033
BRG,N,KBK182223.8X
€ 22.50
13034
13034049
ref: 13034
BEARING-NEEDLE,PK2432
€ 36.00
13035
13035034
ref: 13035
PIN-CRANK
€ 54.50
13037
130371069
ref: 13037
CRANKSHAFT,R.H
€ 185.00
13037A
130371097
ref: 13037A
CRANKSHAFT,LH
€ 257.50
13044
130445007
ref: 13044
SET-CONNECTING ROD
€ 133.00
13097
130971028
ref: 13097
GEAR,PRIMARY
€ 75.00
92015
92015069
ref: 92015
NUT,14MM
€ 20.00
92022
92024061
ref: 92022
WASHER,LOCK
€ 2.50
92026
92026072
ref: 92026
WASHER-CONROD SIDE
€ 7.00
92033
92036015
ref: 92033
RING-SNAP,PISTON PIN
€ 3.00
510
510A5100
ref: 510
KEY-WOODRUFF
€ 1.50
