SWING ARM
KDX250-B3 KDX250 1983 USA CANADA

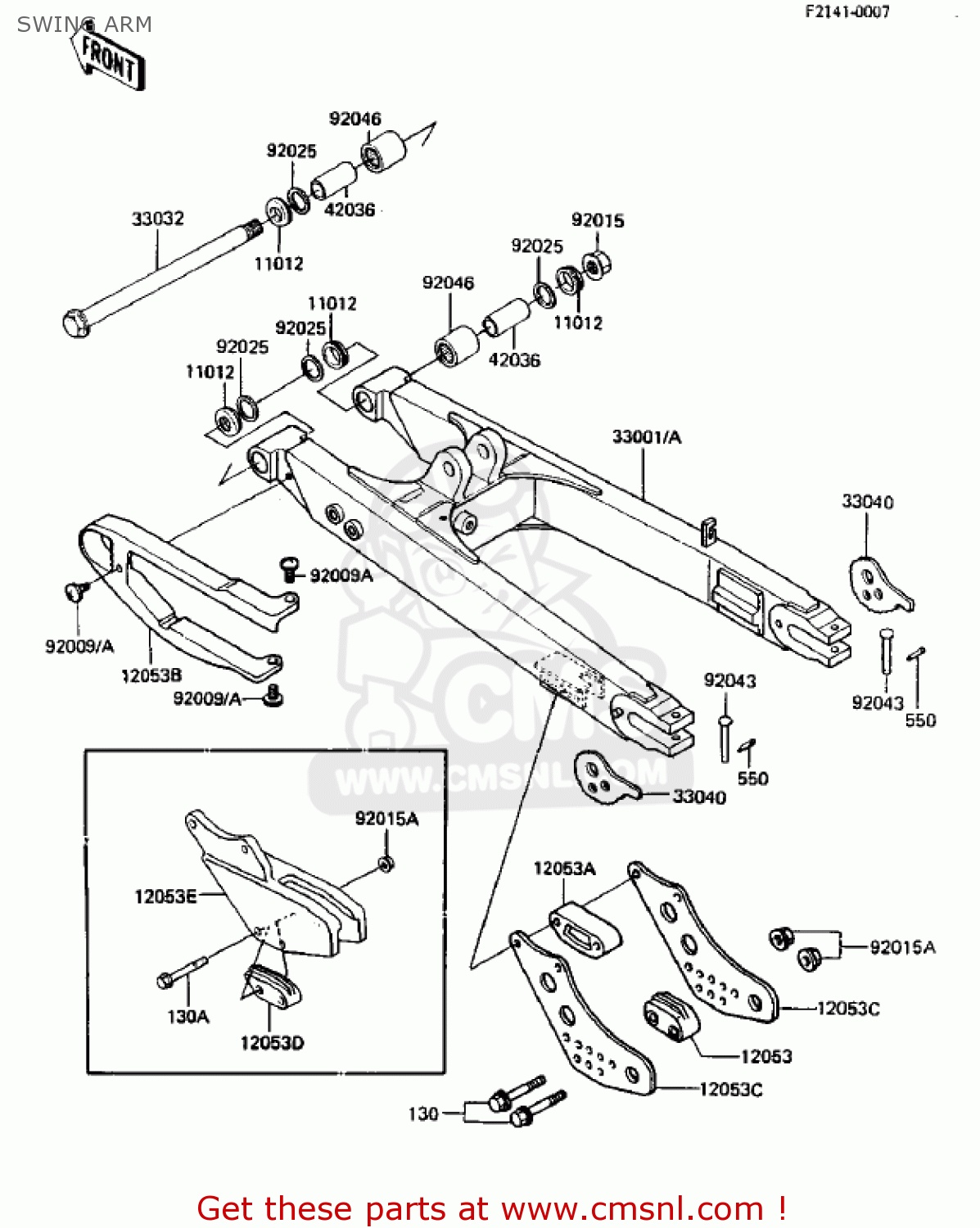

Swing arm diagram KDX250-B3 KDX250 1983 USA CANADA
SWING ARM KDX250-B3 KDX250 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121207
ref: 11012
CAP
€ 12.00
12053
120531011
ref: 12053
GUIDE-CHAIN,RR,LWR
€ 16.50
12053A
120531039
ref: 12053A
GUIDE-CHAIN,RR,UPP
€ 10.50
12053B
120531068
ref: 12053B
GUIDE-CHAIN,FR
€ 38.50
12053C
120531073
ref: 12053C
GUIDE-CHAIN,RR
€ 40.50
12053D
120531105
ref: 12053D
GUIDE-CHAIN,RR,INSIDE
€ 27.50
12053E
120531124
ref: 12053E
GUIDE-CHAIN,RR
€ 67.00
33001
330011175
ref: 33001
ARM-COMP-SWING
€ 749.00
33001A
330011208
ref: 33001A
ARM-COMP-SWING
€ 590.50
33032
330321042
ref: 33032
SHAFT-SWING ARM
€ 49.00
33040
330401060
ref: 33040
ADJUSTER-CHAIN
€ 21.00
42036
420361056
ref: 42036
SLEEVE,SWING ARM
€ 13.50
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92009A
920091287
ref: 92009A
SCREW,6X14
€ 1.50
92009A
920091287
ref: 92009A
SCREW,6X14
€ 1.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92025
920251116
ref: 92025
SHIM,20X26.6X0.5
€ 2.50
92043
920431110
ref: 92043
PIN,6X44.5
€ 3.00
92046
920461031
ref: 92046
BEARING-NEEDLE,HMK203
€ 20.50
130
130H0635
ref: 130
BOLT-FLANGED,6X35
€ 0.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
