CYLINDER HEAD/CYLINDER/REED VALV

KDX250-B3 KDX250 1983 USA CANADA

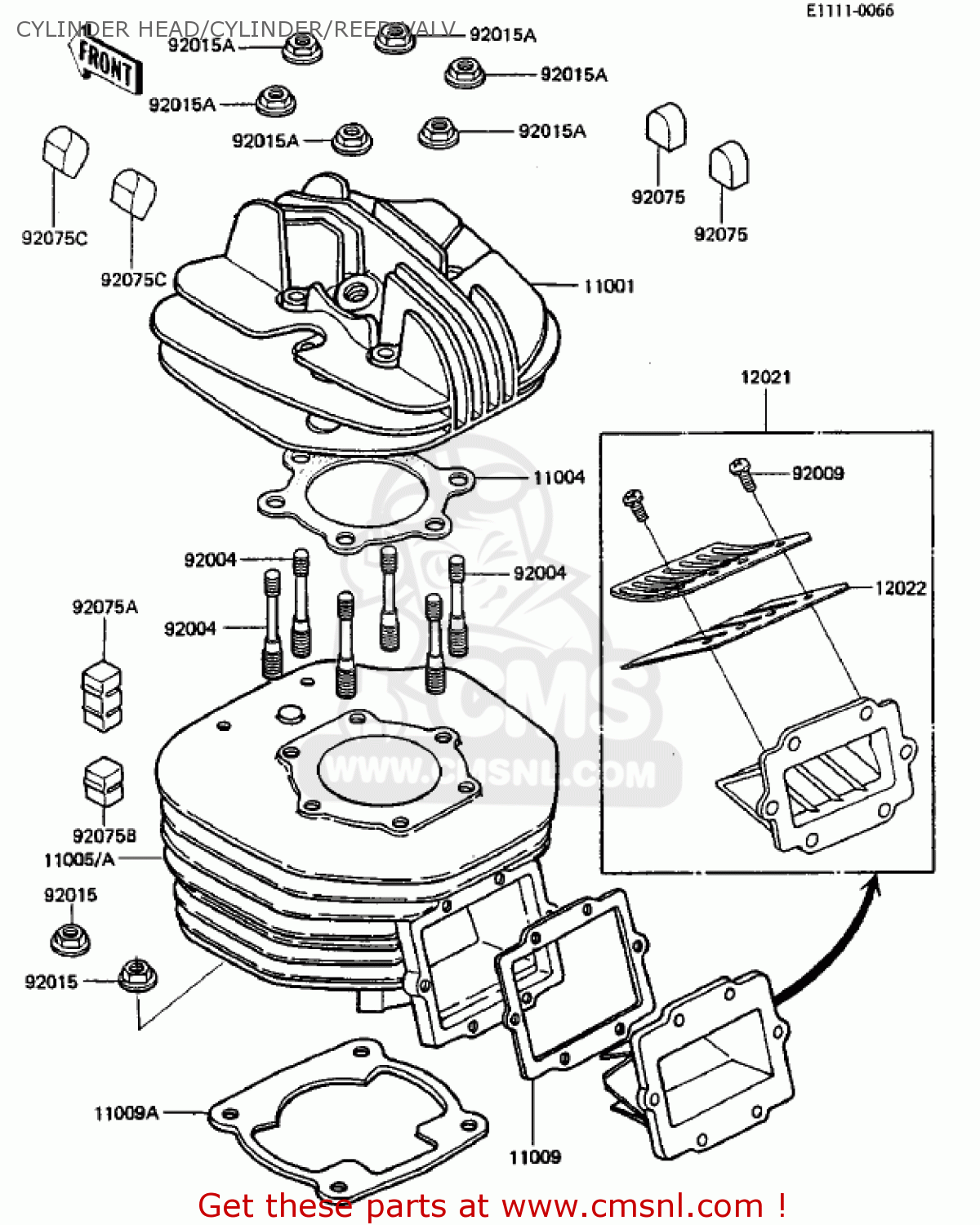

Cylinder head/cylinder/reed valv diagram KDX250-B3 KDX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11001

110011070
ref: 11001

HEAD-CYLINDER

€ 126.00

11004

110041012
ref: 11004

GASKET-HEAD,CYLINDER (NAS)

€ 16.00

11005

110051348
ref: 11005

CYLINDER-ENGINE

€ 534.00

11005A

110051348
ref: 11005A

CYLINDER-ENGINE

€ 534.00

11009

110091950
ref: 11009

GASKET,REED VALVE (NAS)

€ 7.50

11009A

110091254
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 8.50

12021

120211022
ref: 12021

VALVE-ASSY-REED

€ 121.00

12022

120221010
ref: 12022

VALVE-REED

€ 13.00

92004

920041026
ref: 92004

STUD,CYLINDER

€ 4.50

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151415
ref: 92015

NUT,10MM

€ 3.00

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92075

920751176
ref: 92075

DAMPER,CYLINDER HEAD

€ 2.50

92075A

920751229
ref: 92075A

DAMPER,CYLINDER

€ 4.50

92075B

920751344
ref: 92075B

DAMPER,CYLINDER

€ 3.00

92075C

920751368
ref: 92075C

DAMPER,CYLINDER HEAD

€ 3.00
