FRAME

KDX250-B3 KDX250 1983 USA CANADA

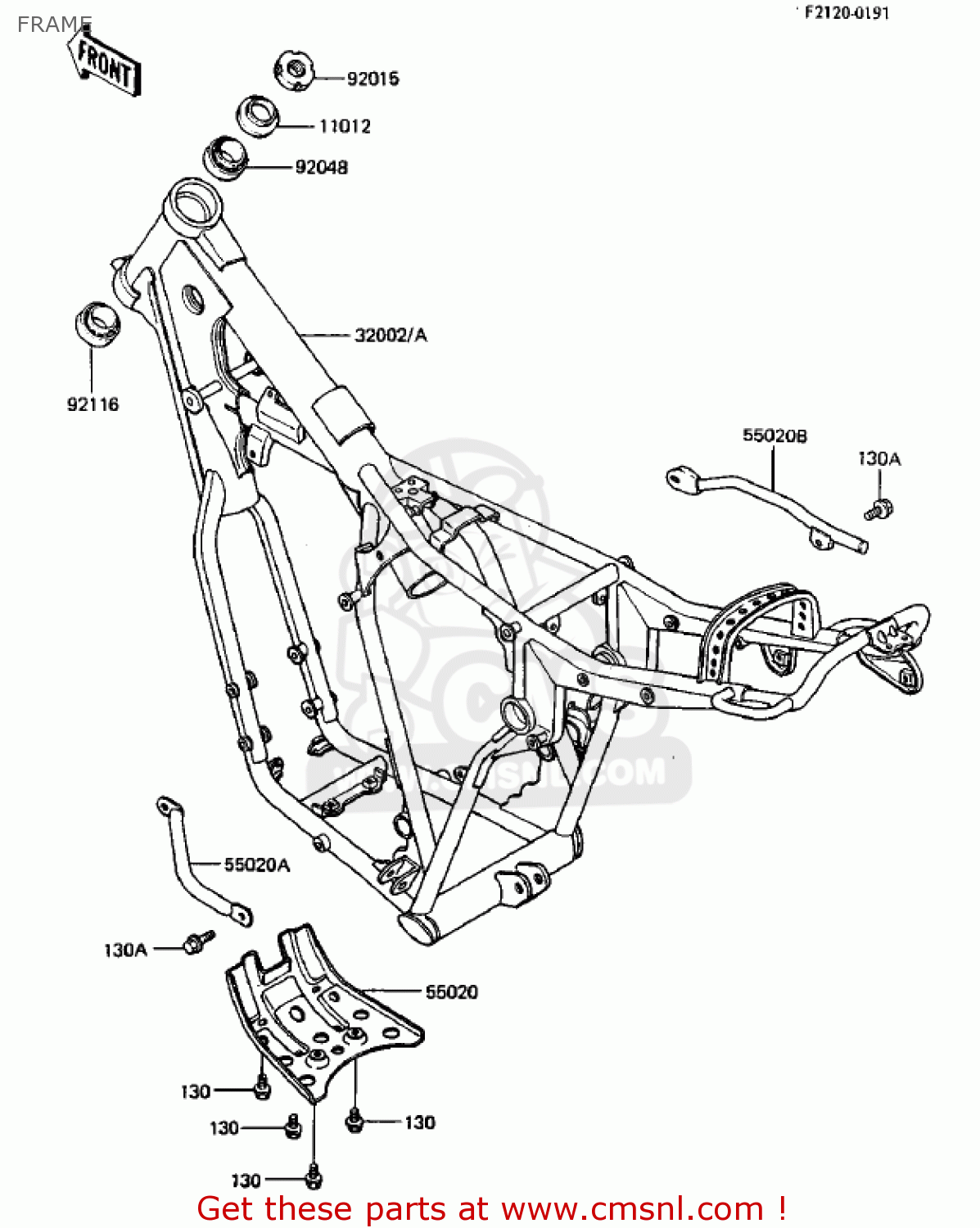

Frame diagram KDX250-B3 KDX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

46098015
ref: 11012

CAP,STEERING STEM

€ 3.50

32002

320021541
ref: 32002

FRAME-COMP

€ 799.50

32002A

320021674
ref: 32002A

FRAME,COMPLETE

€ 720.00

55020

550201062
ref: 55020

GUARD

€ 31.50

55020A

550201064
ref: 55020A

GUARD

€ 29.50

55020B

550201065
ref: 55020B

GUARD

€ 29.50

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

130A

130G0812
ref: 130A

BOLT-FLANGED

€ 0.50
