FRONT FORK
KDX250-B3 KDX250 1983 USA CANADA

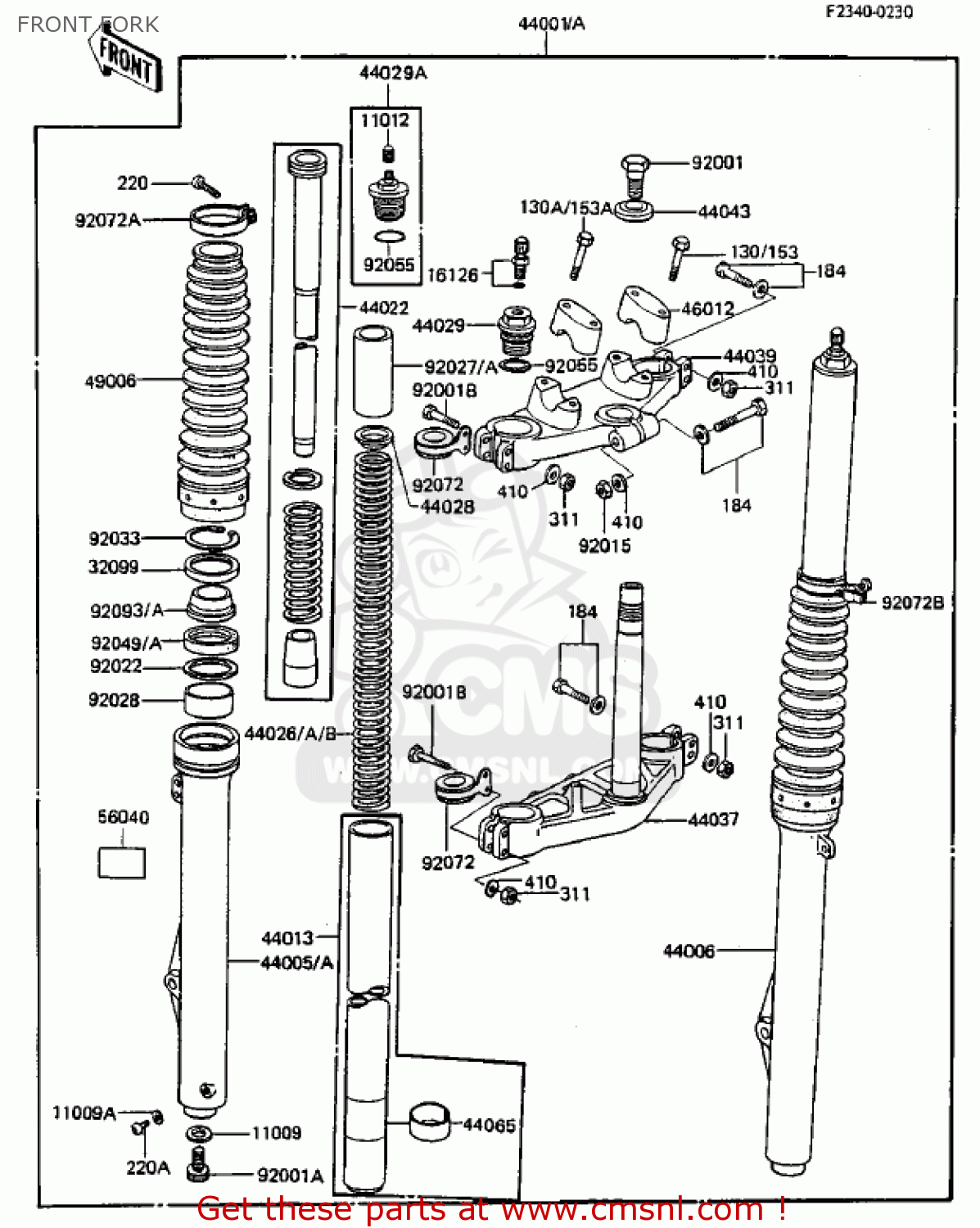

Front fork diagram KDX250-B3 KDX250 1983 USA CANADA
FRONT FORK KDX250-B3 KDX250 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121391
ref: 11012
CAP,VALVE AIR
€ 3.50
16126
161261048
ref: 16126
VALVE,AIR FRONT FORK
€ 11.50
32099
320991013
ref: 32099
CASE,DUST SHIELD
€ 3.50
44001
440011476
ref: 44001
FORK-FRONT
€ 1,148.50
44001A
440011513
ref: 44001A
FRONT FORK
€ 1,027.50
44005
440051209
ref: 44005
PIPE-LEFT FORK OUTER
€ 254.00
44005A
440051209
ref: 44005A
PIPE-LEFT FORK OUTER
€ 254.00
44006
440061123
ref: 44006
PIPE-RIGHT FORK OUTER
€ 254.00
44013
440131102
ref: 44013
PIPE-FORK INNER
€ 185.50
44022
440221088
ref: 44022
CYLINDER-FORK
€ 88.00
44026
440261204
ref: 44026
SPRING-FRONT FORK
€ 31.00
44026A
440261205
ref: 44026A
(OPTION)
SPRING-FRONT FORK
€ 26.50
44026B
440261206
ref: 44026B
(OPTION)
SPRING-FRONT FORK
€ 31.00
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44029A
440291106
ref: 44029A
SEAT-FORK SPRING
€ 27.50
44037
440371103
ref: 44037
HOLDER-FORK UNDER
€ 264.00
44039
440391043
ref: 44039
HOLDER-FORK UPPER
€ 149.50
44043
44043052
ref: 44043
WASHER,PLAIN
€ 6.00
44065
920281126
ref: 44065
BUSHING-FRONT FORK,IN
€ 31.50
46012
460121014
ref: 46012
HOLDER-HANDLE
€ 8.50
49006
490061174
ref: 49006
BOOT,FORK
€ 43.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041065
ref: 92001
BOLT,FORK TOP
€ 18.50
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
€ 4.50
92001B
920011398
ref: 92001B
BOLT,FLANGED 8X55
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92027
920271535
ref: 92027
COLLAR,FORK SPRING
€ 3.00
92027A
920271762
ref: 92027A
COLLAR,L=127
€ 3.50
92028
440651091
ref: 92028
BUSHING-FRONT FORK,OU
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491042
ref: 92049
OIL SEAL,FORK OUTE TU
€ 13.50
92049A
920491180
ref: 92049A
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721040
ref: 92072
BAND,CABLE
€ 12.50
92072A
920721046
ref: 92072A
BAND,BOOT
€ 6.50
92072B
920721094
ref: 92072B
BAND,BOOT,RH
€ 3.50
92093
920931035
ref: 92093
DUST SHIELD,FORK OUTR
€ 10.50
92093A
920931166
ref: 92093A
SEAL,FRONT FORK
€ 12.50
130
130G0835
ref: 130
BOLT,FLANGED,8X35
€ 1.00
130A
130G0850
ref: 130A
BOLT,8X50
€ 1.00
153
183G0835
ref: 153
BOLT-UPSET-WS-SMALL
€ 3.50
153A
153G0850
ref: 153A
BOLT-WS-SMALL
€ 2.50
184
184G0855
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
311
311G0800
ref: 311
NUT-HEX,8MM
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
