REAR MASTER CYLINDER

KDX200-E5 1993 USA CANADA

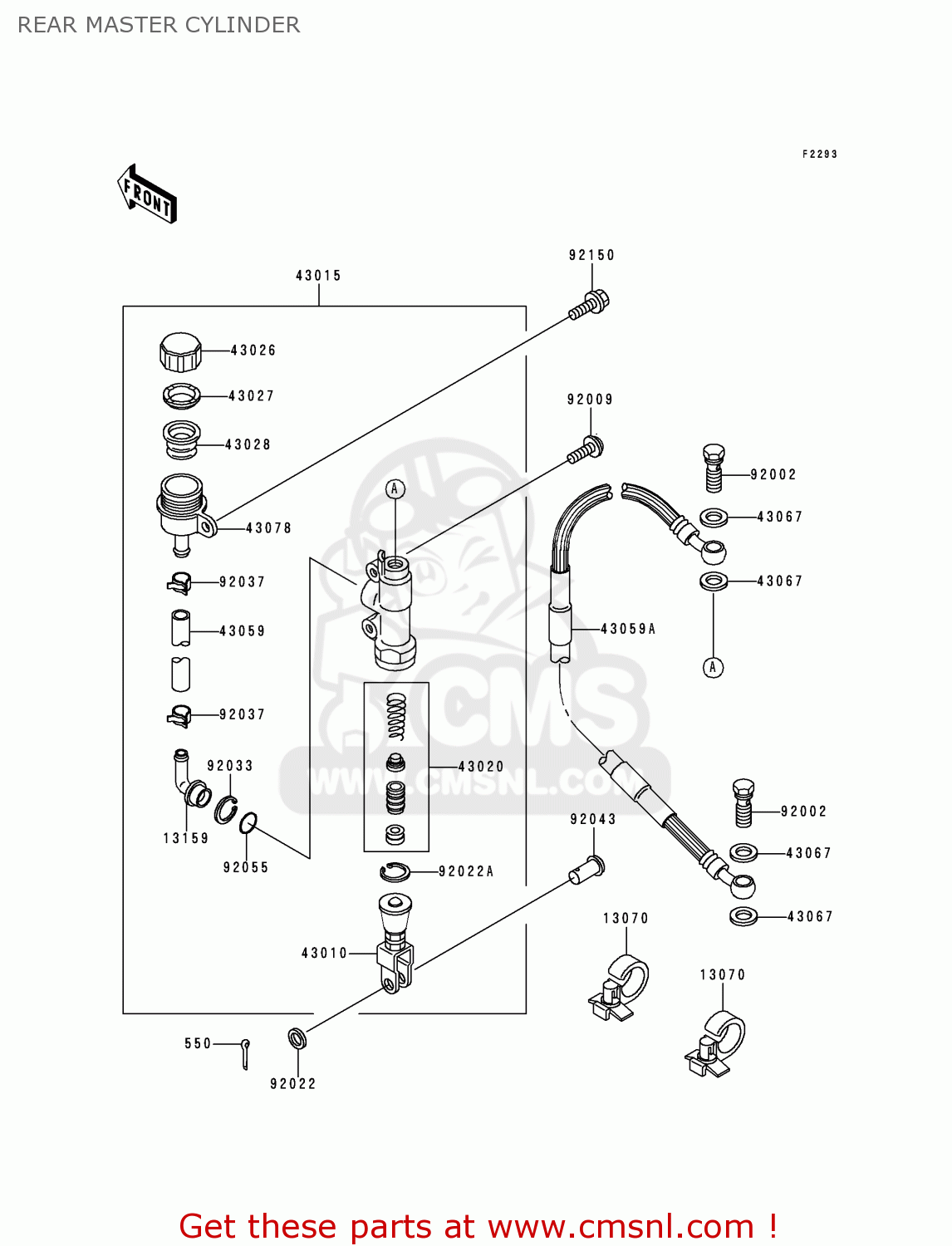

Rear master cylinder diagram KDX200-E5 1993 USA CANADA

REAR MASTER CYLINDER KDX200-E5 1993 USA CANADA
REAR MASTER CYLINDER KDX200-E5 1993 USA CANADA
REAR MASTER CYLINDER KDX200-E5 1993 USA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13070
130701186
ref: 13070
GUIDE,HOSE
130701186
€ 5.50
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
43010
430101063
ref: 43010
ROD-ASSY-BRAKE
430101063
€ 30.50
43015
430151388
ref: 43015
CYLINDER-ASSY-MASTER,
€ 193.00
43020
430201063
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261058
ref: 43026
CAP-BRAKE
430261058
€ 24.50
43027
430271052
ref: 43027
PLATE-DIAPHRAGM
430271052
€ 3.00
43028
430281060
ref: 43028
DIAPHRAGM
430281060
€ 11.50
43059
430591380
ref: 43059
HOSE-BRAKE,RR MASTER
€ 24.50
43059A
430591514
ref: 43059A
HOSE-BRAKE,RR
430591514
€ 67.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781068
ref: 43078
RESERVOIR
430781068
€ 19.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091287
ref: 92009
SCREW,6X14
920091287
€ 1.50
92022
920221028
ref: 92022
WASHER,8.5X13X1
920221028
€ 2.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371710
ref: 92037
CLAMP
920371710
€ 6.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501340
ref: 92150
BOLT,6X14
921501340
€ 3.00
