LABEL(KDX200-E4/E5)
KDX200-E5 1993 USA CANADA

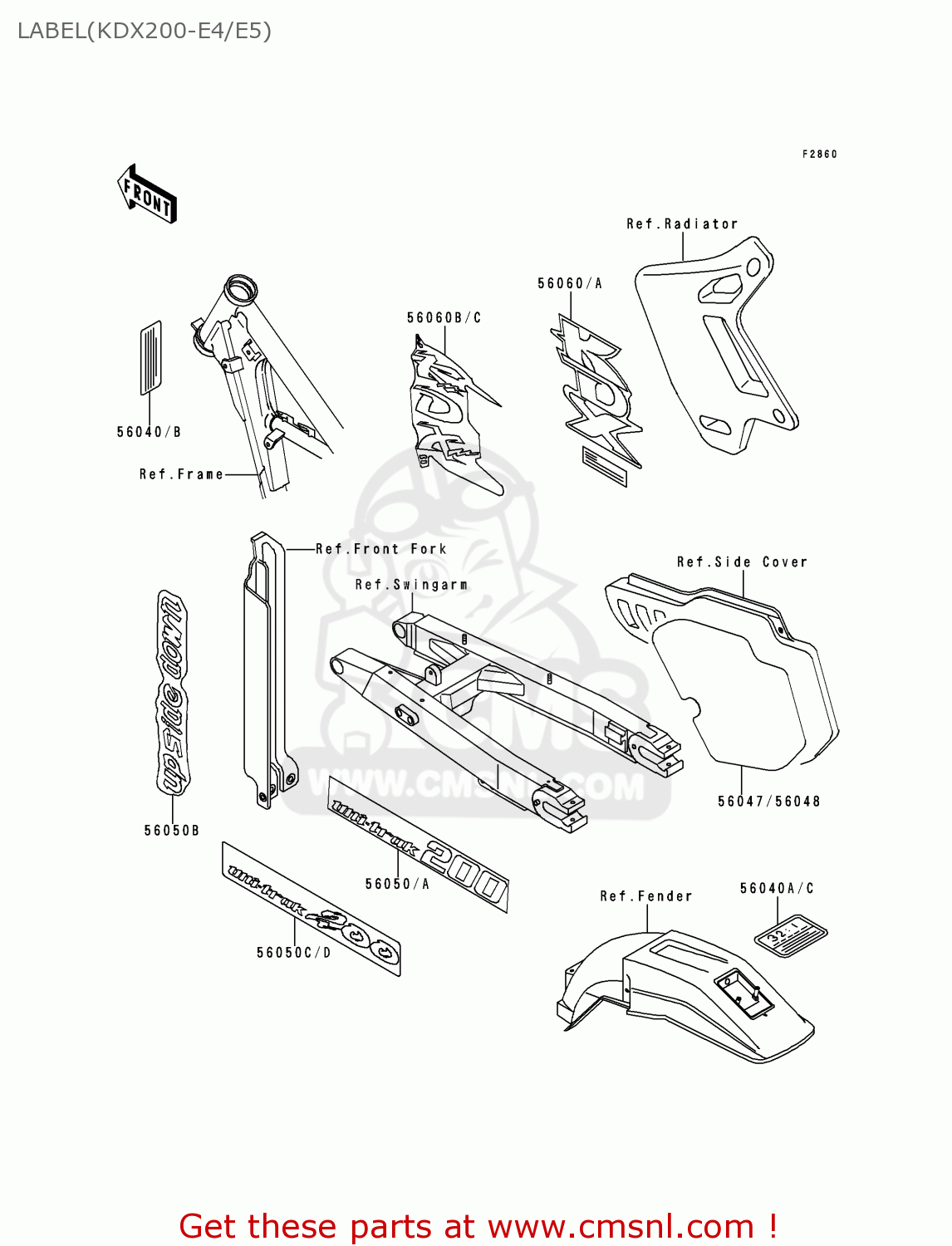

Label(kdx200-e4/e5) diagram KDX200-E5 1993 USA CANADA
LABEL(KDX200-E4/E5) KDX200-E5 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
56040
560401018
ref: 56040
US
LABEL-WARNING,OFF-ROA
€ 3.00
56040A
560401129
ref: 56040A
US
LABEL-WARNING,GASOLIN
€ 4.00
56040B
560401304
ref: 56040B
CN
LABEL-WARNING,OFF-ROA
€ 4.00
56040C
560401306
ref: 56040C
CN
LABEL-WARNING,GASOLIN
€ 6.00
56047
560471784
ref: 56047
PATTERN,SIDE COER,LH
€ 19.00
56048
560481524
ref: 56048
PATTERN,SIDE COVER,RH
€ 24.00
56050B
560501835
ref: 56050B
MARK,UP SIDE DOWN
€ 14.50
56050C
560501873
ref: 56050C
MARK,SWING ARM,LH,UNI
€ 14.00
56050D
560501874
ref: 56050D
MARK,SWING ARM,RH,200
€ 16.00
56060B
560601365
ref: 56060B
PATTERN,SHROUD,LH
€ 33.50
56060C
560601366
ref: 56060C
PATTERN,SHROUD,RH
€ 31.50
