MUFFLER(S)
KDX200-E5 1993 USA CANADA

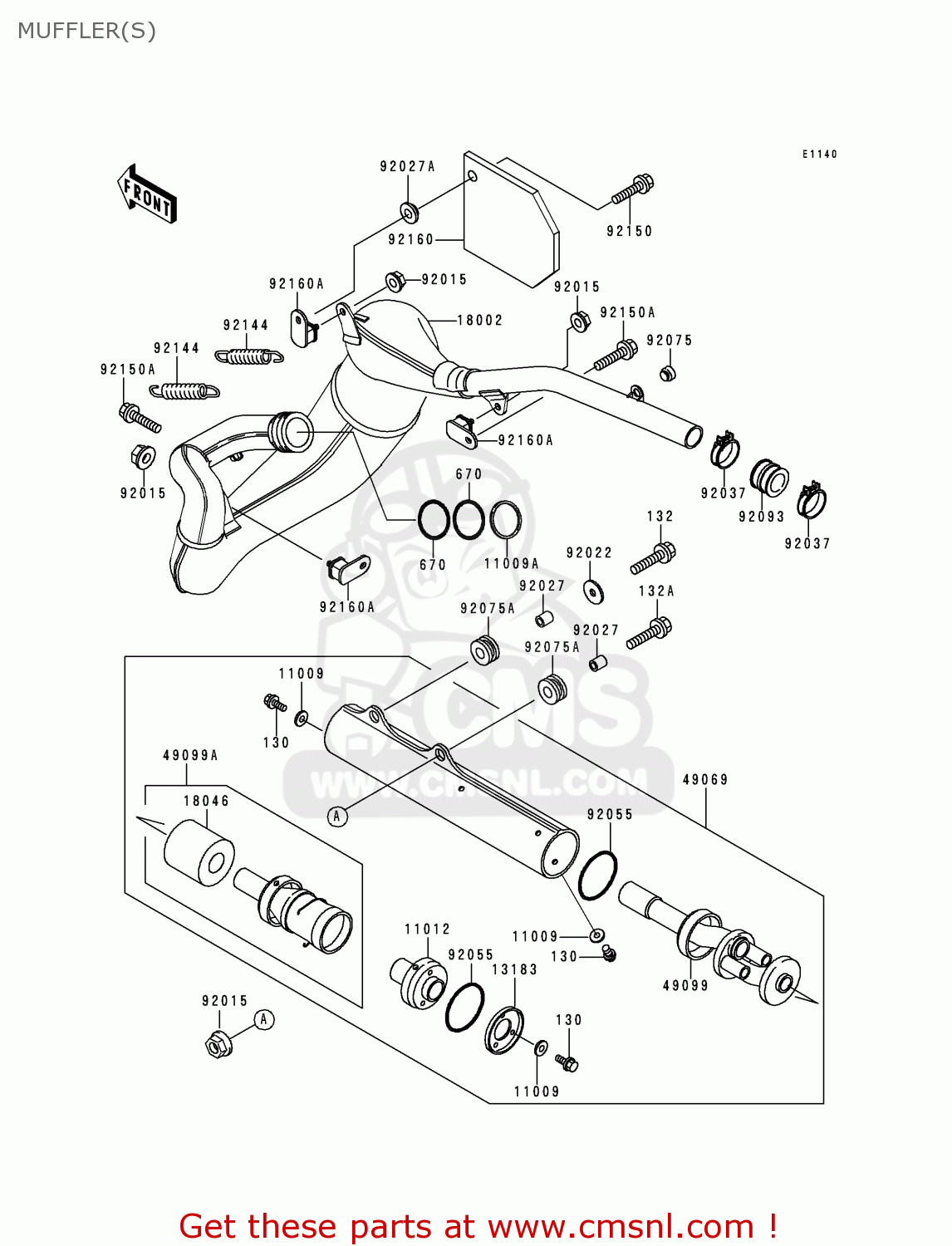

Muffler(s) diagram KDX200-E5 1993 USA CANADA
MUFFLER(S) KDX200-E5 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0510
ref: 130
BOLT-FLANGED
€ 1.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
670
670E3039
ref: 670
O RING,39MM
€ 10.50
11009
110091881
ref: 11009
GASKET,5.5X13X1.2 (NAS)
€ 2.50
11009A
110091995
ref: 11009A
GASKET,EXHAUST PIPE (NAS)
€ 8.50
11012
110121739
ref: 11012
CAP,TAIL PIPE
€ 8.00
13183
131831569
ref: 13183
PLATE,TAIL PIPE
€ 9.00
18002
180021933
ref: 18002
BODY-COMP-MUFFLER
€ 303.00
18046
180461115
ref: 18046
WOOL,BAFFLE PIPE
€ 22.00
49069
490691137
ref: 49069
MUFFLER-ASSY
€ 288.50
49099
490991286
ref: 49099
BAFFLE-PIPE MUFFLER,F
€ 72.50
49099A
490991287
ref: 49099A
BAFFLE-PIPE MUFFLER,R
€ 68.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92027A
920271933
ref: 92027A
COLLAR,L=5.6
€ 3.50
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92055
920551431
ref: 92055
RING-O,61.6X3.5
€ 6.00
92075
920751598
ref: 92075
DAMPER,SIDE COVER
€ 5.50
92075A
920751857
ref: 92075A
DAMPER,MUFFLER FITTIN
€ 3.50
92093
920931085
ref: 92093
SEAL,MUFFLER
€ 23.50
92144
921441035
ref: 92144
SPRING
€ 7.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92160
921601145
ref: 92160
DAMPER,HEAT
€ 50.50
92160A
921601176
ref: 92160A
DAMPER,MUFFLER,FR
€ 19.00
