FENDER
KDX200-E5 1993 USA CANADA

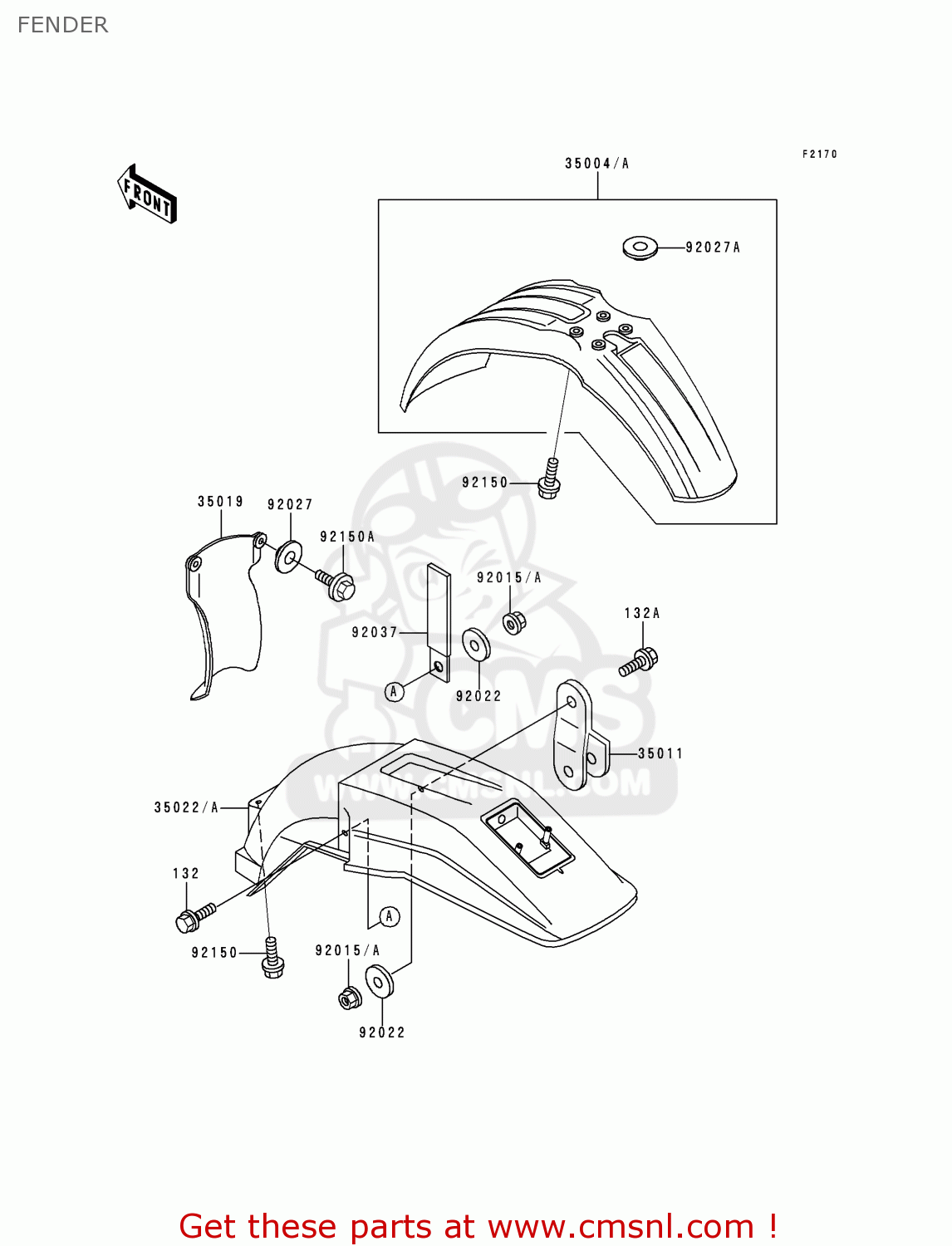

Fender diagram KDX200-E5 1993 USA CANADA
FENDER KDX200-E5 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0645
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0650
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
35004A
3500412976W
ref: 35004A
FENDER-FRONT,L.GREEN
€ 59.00
35011
350111534
ref: 35011
STAY,MUFFLER
€ 8.00
35019
350191159
ref: 35019
FLAP,AIR FILTER
€ 30.50
35022
3502212586W
ref: 35022
US
FENDER-COMP-REAR,L.GR
€ 69.00
35022A
3502212596W
ref: 35022A
CN
FENDER-COMP-REAR,L.GREEN
€ 0.00
92015
920151078
ref: 92015
CN
NUT,6M/M
€ 1.50
92015A
920151699
ref: 92015A
US
NUT,FLANGED,6MM
€ 3.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
920271794
ref: 92027
COLLAR
€ 2.50
92027A
920271936
ref: 92027A
COLLAR,FRONT FENDER
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501506
ref: 92150A
BOLT
€ 3.00
