SEAT

KDX200-E4 1992 USA CANADA

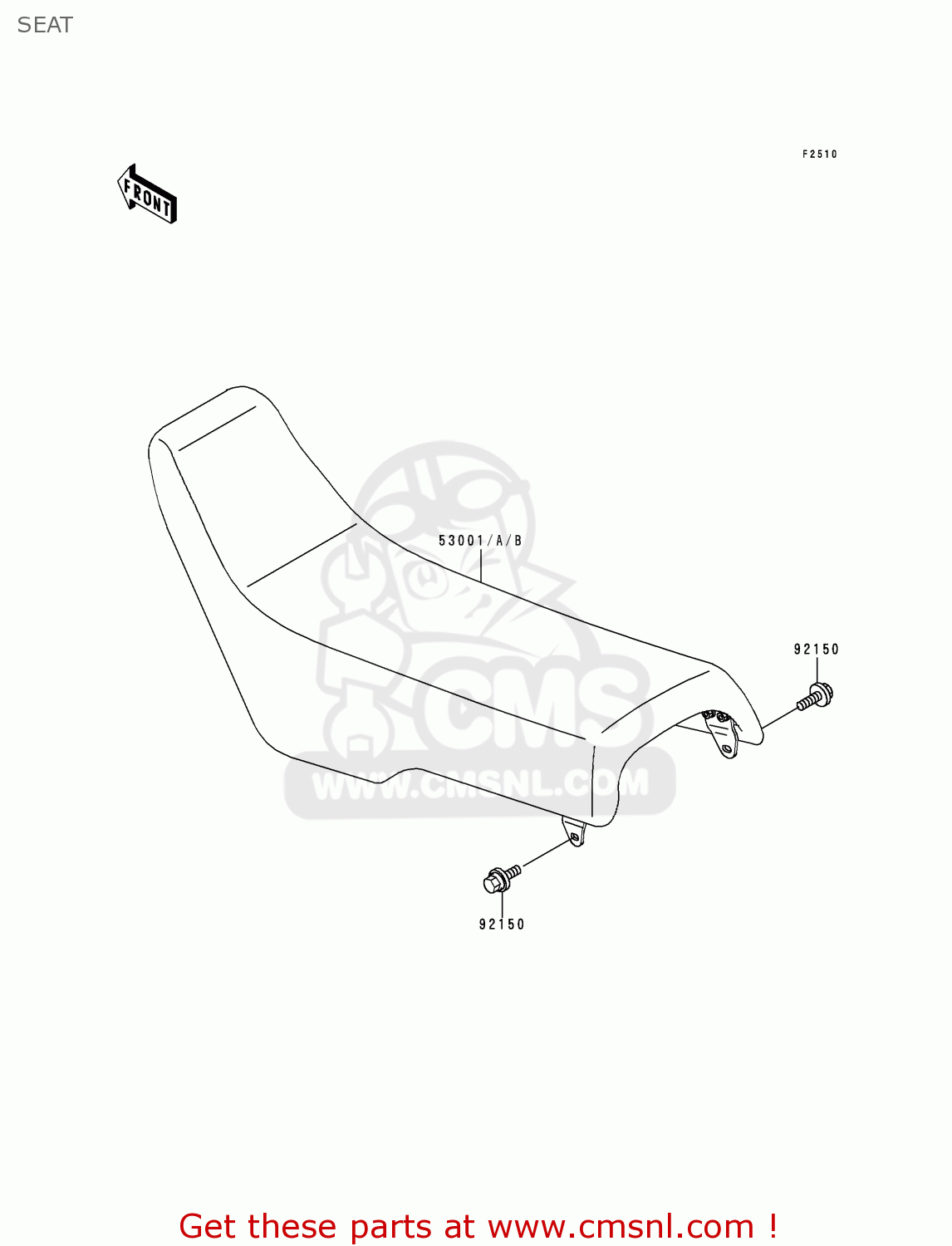

Seat diagram KDX200-E4 1992 USA CANADA

SEAT KDX200-E4 1992 USA CANADA

SEAT KDX200-E4 1992 USA CANADA

prices are in EUR

ref

part #

description

quantity

53001

530011671LK
ref: 53001

SEAT-ASSY,BLUE 32

€ 264.50

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50
