RADIATOR(KDX200-E4/E5)
KDX200-E4 1992 USA CANADA

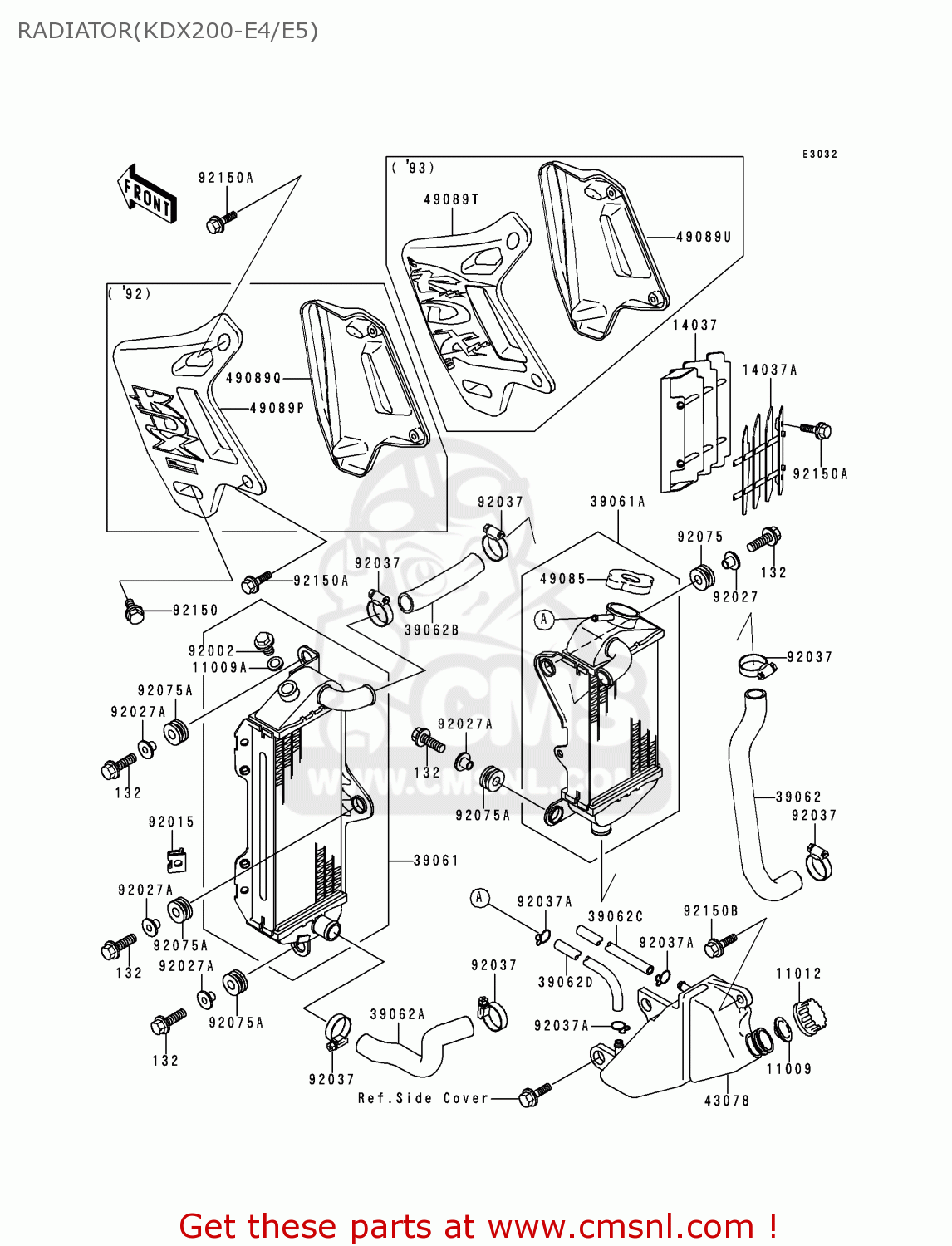

Radiator(kdx200-e4/e5) diagram KDX200-E4 1992 USA CANADA
RADIATOR(KDX200-E4/E5) KDX200-E4 1992 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
14037
1403710996W
ref: 14037
SCREEN,L.GREEN
€ 16.50
14037A
1403711216W
ref: 14037A
SCREEN,RH,L.GREEN
€ 19.00
39061
390611127
ref: 39061
RADIATOR-ASSY,LH
€ 291.00
39061A
390611131
ref: 39061A
RADIATOR-ASSY
€ 291.00
39062
390621300
ref: 39062
HOSE-COOLING,RADIATOR
€ 18.50
39062A
390621301
ref: 39062A
HOSE-COOLING,HEAD-RAD
€ 14.00
39062B
390621302
ref: 39062B
HOSE-COOLING,RADIATOR
€ 9.50
39062C
390621315
ref: 39062C
HOSE-COOLING,5X9X500
€ 8.00
39062D
390621334
ref: 39062D
HOSE-COOLING,5X9X1050
€ 8.00
43078
430781123
ref: 43078
RESERVOIR
€ 36.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49089P
4908951436W
ref: 49089P
SHROUD-ENGINE,LH,L.GR
€ 81.50
49089Q
4908951446W
ref: 49089Q
SHROUD-ENGINE,RH,L.GR
€ 72.50
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
92027
920271045
ref: 92027
COLLAR
€ 3.50
92027A
92027194
ref: 92027A
COLLAR
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92075
920751185
ref: 92075
DAMPER RUBBER
€ 3.00
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92150
921501392
ref: 92150
BOLT
€ 3.00
92150A
921501435
ref: 92150A
BOLT
€ 2.50
92150B
921501504
ref: 92150B
BOLT
€ 3.00
