LABEL(KDX200-E4/E5)
KDX200-E4 1992 USA CANADA

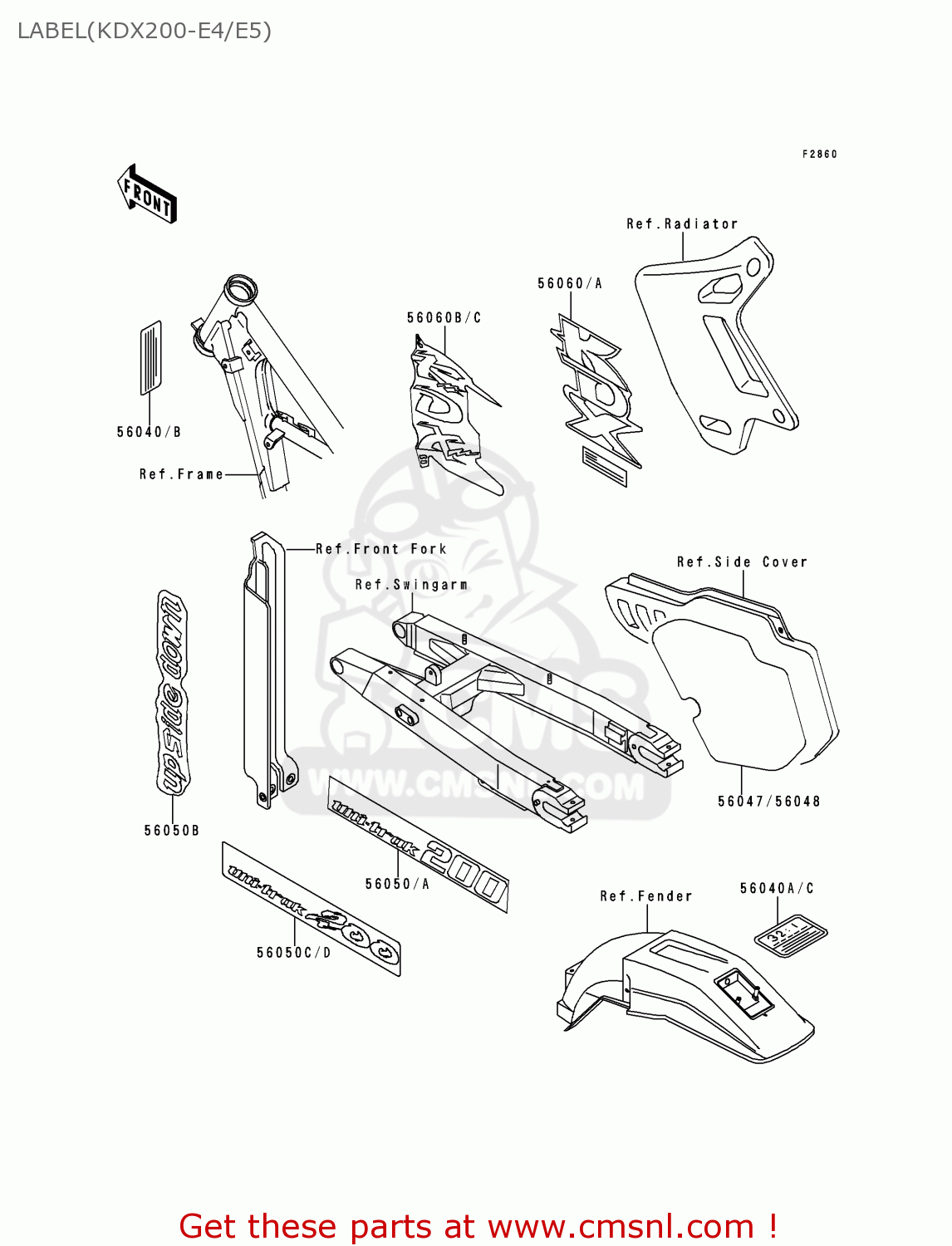

Label(kdx200-e4/e5) diagram KDX200-E4 1992 USA CANADA
LABEL(KDX200-E4/E5) KDX200-E4 1992 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
56040
560401018
ref: 56040
US
LABEL-WARNING,OFF-ROA
€ 3.00
56040A
560401129
ref: 56040A
US
LABEL-WARNING,GASOLIN
€ 4.00
56040B
560401304
ref: 56040B
CN
LABEL-WARNING,OFF-ROA
€ 4.00
56040C
560401306
ref: 56040C
CN
LABEL-WARNING,GASOLIN
€ 6.00
56047
560471784
ref: 56047
PATTERN,SIDE COER,LH
€ 19.00
56048
560481524
ref: 56048
PATTERN,SIDE COVER,RH
€ 24.00
56050
560501746
ref: 56050
MARK,SWING ARM,LH,UNI
€ 15.50
56050A
560501747
ref: 56050A
MARK,SWING ARM,RH,200
€ 15.50
56060
560601010
ref: 56060
PATTERN,SHROUD,LH
€ 29.00
56060A
560601011
ref: 56060A
PATTERN,SHROUD,RH
€ 24.50
