CABLE

KDX200-E4 1992 USA CANADA

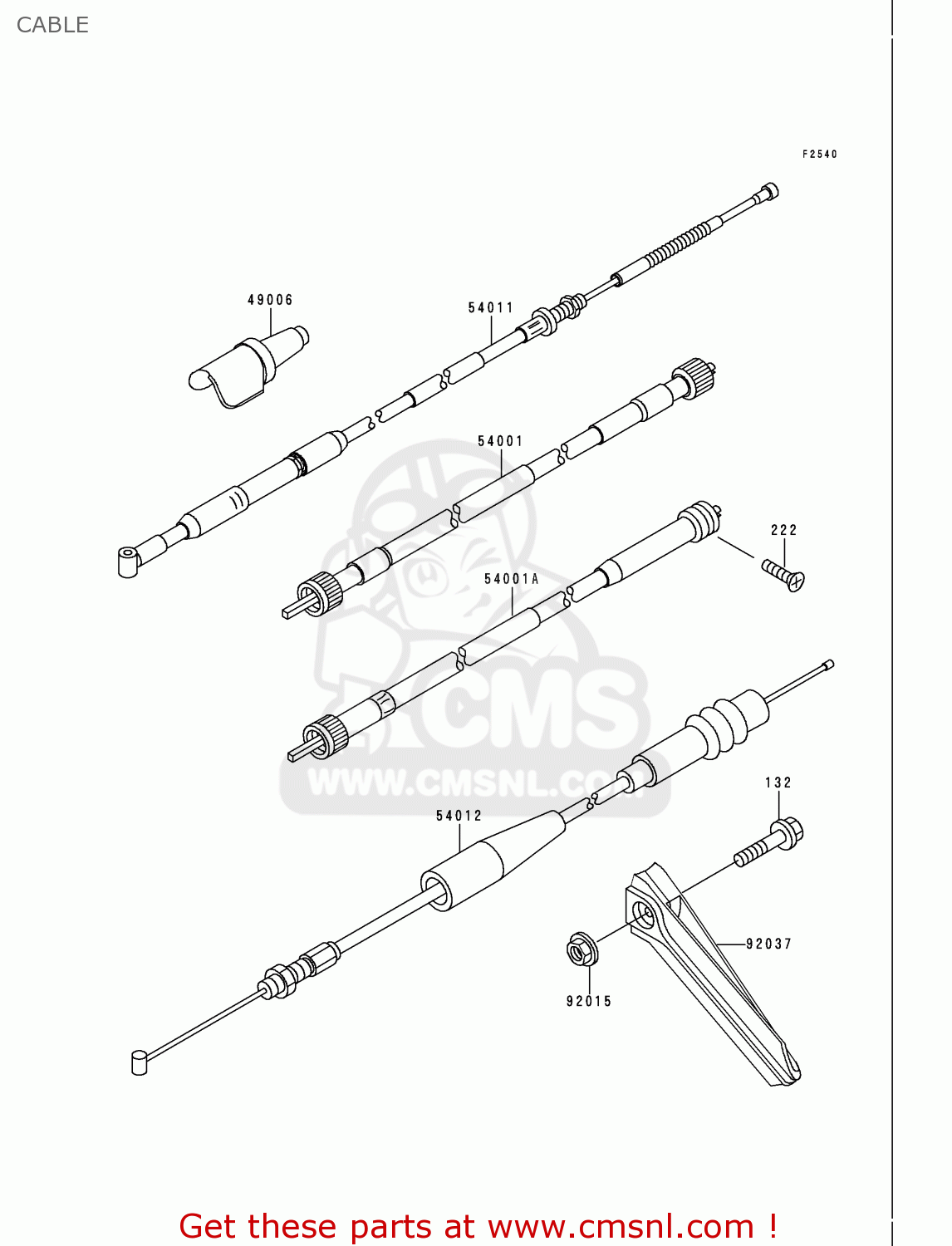

Cable diagram KDX200-E4 1992 USA CANADA

CABLE KDX200-E4 1992 USA CANADA

CABLE KDX200-E4 1992 USA CANADA

prices are in EUR

ref

part #

description

quantity

132

132G0630
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

49006

490061189
ref: 49006

BOOT

€ 8.00

54001

540011156
ref: 54001

CABLE-SPEEDOMETER

€ 23.50

54011

540111314
ref: 54011

CABLE-CLUTCH

€ 23.00

54012

540121360
ref: 54012

CABLE-THROTTLE

€ 23.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92037

920371481
ref: 92037

CLAMP,CABLE

€ 31.50
