STEP

KDX200-E3 1991 USA CANADA

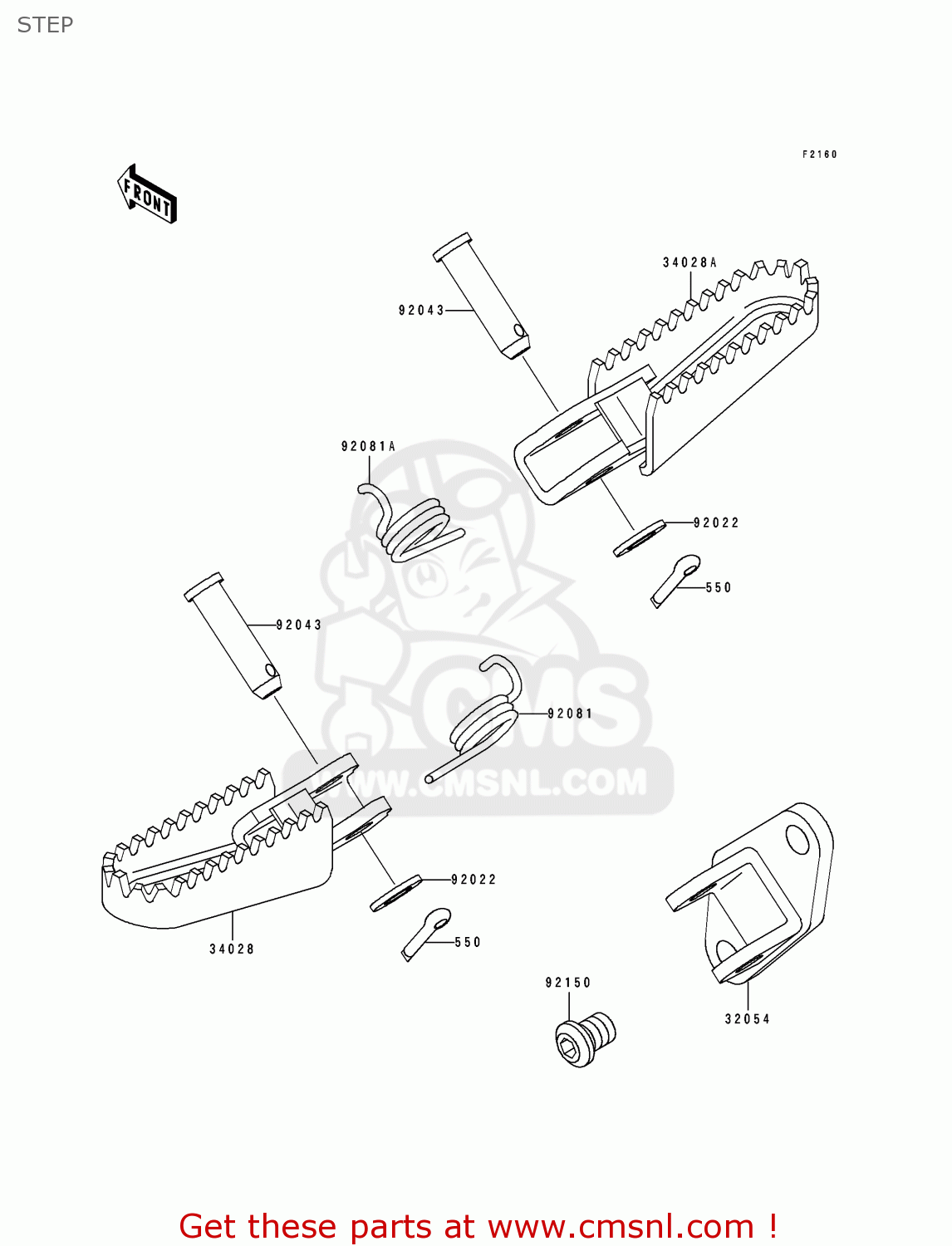

Step diagram KDX200-E3 1991 USA CANADA

STEP KDX200-E3 1991 USA CANADA

STEP KDX200-E3 1991 USA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D2018
ref: 550

PIN-COTTER,2.0X18

€ 1.50

32054

320541173
ref: 32054

BRACKET-STEP

€ 25.00

34028

340281302
ref: 34028

STEP,LH

€ 26.50

34028A

340281303
ref: 34028A

STEP,RH

€ 41.00

92022

92022239
ref: 92022

WASHER-PLAIN

€ 2.50

92043

920431217
ref: 92043

PIN,10X37.5

€ 7.50

92081

920811606
ref: 92081

SPRING,STEP,LH

€ 6.50

92081A

920811607
ref: 92081A

SPRING,STEP,RH

€ 6.50

92150

921501111
ref: 92150

BOLT,SOCKET,10X16

€ 4.00
